IKZA40 Series

Manufacturer: INFINEON

Catalog

THE IKZA40N65RH5 IS A 650 V, 40 A TRENCHSTOP™ 5 H5 HYBRID COOLSIC™ IGBT DISCRETE

Part	Test Condition	Mounting Type	IGBT Type	Gate Charge	Current - Collector (Ic) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Power - Max [Max]	Vce(on) (Max) @ Vge, Ic	Voltage - Collector Emitter Breakdown (Max) [Max]	Td (on/off) @ 25°C [Max] [custom]	Td (on/off) @ 25°C [Min] [custom]	Current - Collector Pulsed (Icm)	Supplier Device Package	Package / Case	Switching Energy	Reverse Recovery Time (trr)	Td (on/off) @ 25°C	Td (on/off) @ 25°C [custom]	Td (on/off) @ 25°C [custom]

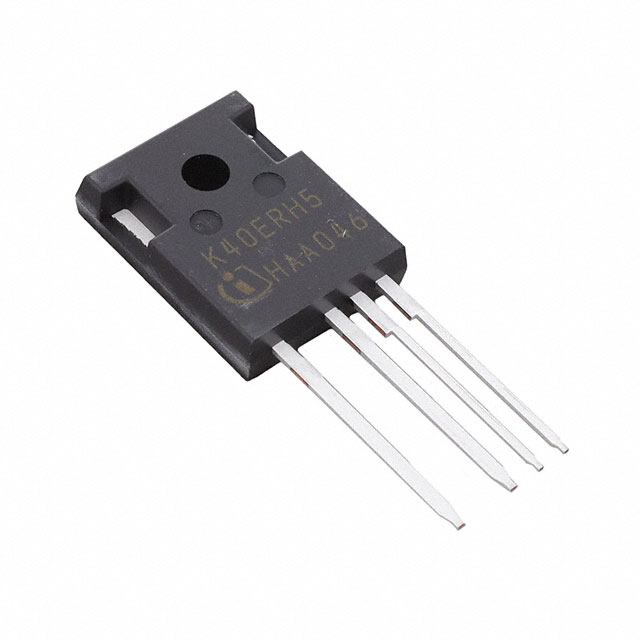

INFINEON IKZA40N65RH5XKSA1	15 Ohm 15 V 20 A 400 V	Through Hole	Trench Field Stop	95 nC	74 A	175 °C	-40 °C	250 W	2.1 V	650 V	165 ns	17 ns	60 A	PG-TO247-4-3	TO-247-4	120 µJ 140 µJ
INFINEON IKZA40N65EH7XKSA1	12.5 Ohm 15 V 40 A 400 V	Through Hole	Trench Field Stop	81 nC	80 A	175 °C	-40 °C	210 W	1.65 V	650 V				PG-TO247-4-3	TO-247-4	360 µJ 370 µJ	49.6 ns	13 ns 134 ns
INFINEON IKZA40N120CH7XKSA1		Through Hole	Trench Field Stop		95 A	175 °C	-40 °C	330 W	2.15 V	1200 V				PG-TO247-4-U02	TO-247-4	1.01 mJ 970 µJ	90 ns		360 ns	34 ns
