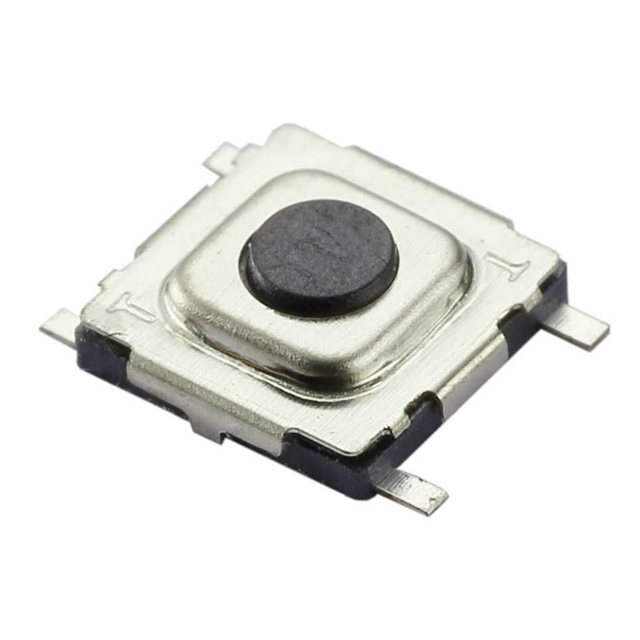

222EM1 Series
Manufacturer: CTS Electrocomponents
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Mechanical Life | Switch Travel | Outline [y] | Outline [x] | Actuator Orientation | Actuator Height off PCB, Vertical [z] | Contact Rating @ Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Illumination | Actuator Type | Mounting Type | Circuit | Operating Force | Features | Termination Style | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CTS Electrocomponents | 1000000 Cycles | 0.25 mm | 5 mm | 5 mm | Top Actuated | 1.5 mm | 0.05 A 12 VDC | 85 °C | -40 C | Non-Illuminated | Standard | Surface Mount | SPST-NO | 160 gf | Tactile Feedback | Gull Wing | Off-Mom |
