BW Series

Catalog

ATTENUATORS - INTERCONNECTS FXD ATTEN /N /40DB 100W ROHS

Part	Package / Case	Power (Watts)	Frequency Range [Max]	Attenuation Value	Impedance
Mini-Circuits BW-40N100W+	N-Type In-Line Module	100 W	4 GHz	40 dB	50 Ohms
Mini-Circuits BW-S6W2+	SMA In-Line Module	2 W	18 GHz	6 dB	50 Ohms
Mini-Circuits BW-S20W5+	SMA In-Line Module	5 W	18 GHz	20 dB	50 Ohms
Mini-Circuits BW-K5-2W44+	2.92mm In-Line Module	2 W	40 GHz	5 dB	50 Ohms

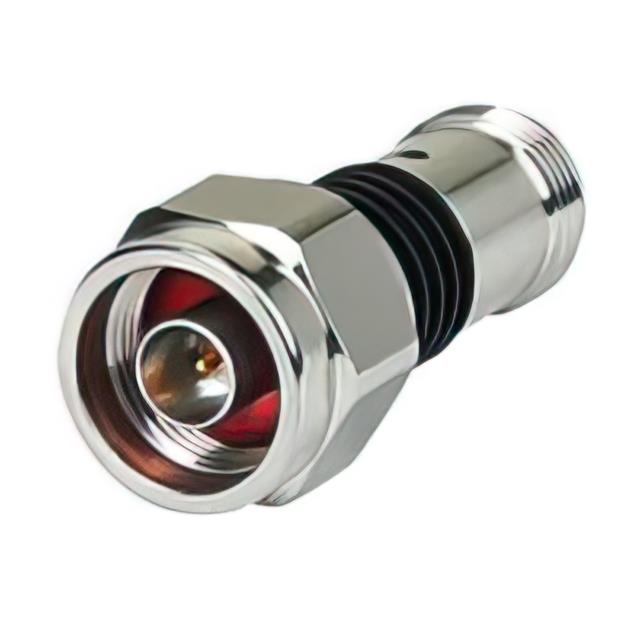

Mini-Circuits BW-N15W5+	N-Type In-Line Module	5 W	18 GHz	15 dB	50 Ohms
Mini-Circuits BW-E30-1W653+	Module	1 W	65 GHz	30 dB	50 Ohms
Mini-Circuits BW-S4W5+	SMA In-Line Module	5 W	18 GHz	4 dB	50 Ohms
Mini-Circuits BW-N10W5+	N-Type In-Line Module	5 W	18 GHz	10 dB	50 Ohms
