842-044 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 44POS 0.100

...

Part	Termination Rows [custom]	Material - Insulation	Termination	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Pitch	Pitch	Color	Number of Rows [custom]	Number of Positions/Bay/Row	Flange Feature	Read Out	Card Type	Contact Type	Card Thickness [Max]	Card Thickness [Min]	Gender	Contact Material	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Termination Rows	Number of Rows	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 842-044-520-207	2	Diallyl Phthalate (DAP)	Solder	Gold	125 °C	-40 C	0.1 "	2.54 mm	Green	2	22	Flush Mount M3 Threaded Insert Top Opening	Dual	Non Specified - Dual Edge	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Copper Alloy	Through Hole	0.25 Ám	10 Áin	44

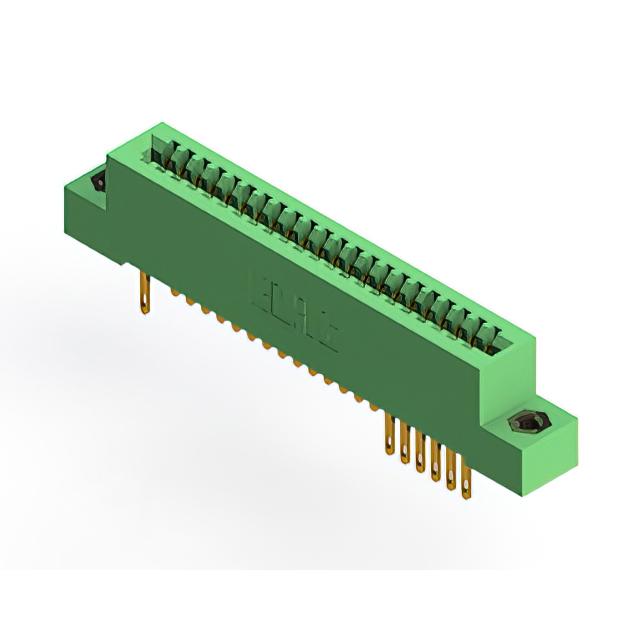

EDAC Inc. 842-044-500-208	2	Diallyl Phthalate (DAP)	Solder Eyelet(s)	Gold	125 °C	-40 C	0.1 "	2.54 mm	Green	2	22	4-40 Flush Mount Threaded Insert Top Opening	Dual	Non Specified - Dual Edge	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Copper Alloy	Through Hole	0.25 Ám	10 Áin	44

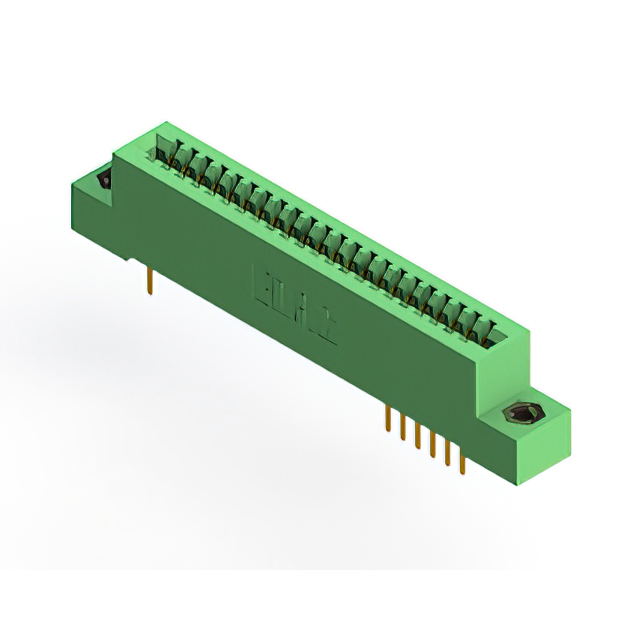

EDAC Inc. 842-044-520-208	2	Diallyl Phthalate (DAP)	Solder	Gold	125 °C	-40 C	0.1 "	2.54 mm	Green	2	22	4-40 Flush Mount Threaded Insert Top Opening	Dual	Non Specified - Dual Edge	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Copper Alloy	Through Hole	0.25 Ám	10 Áin	44

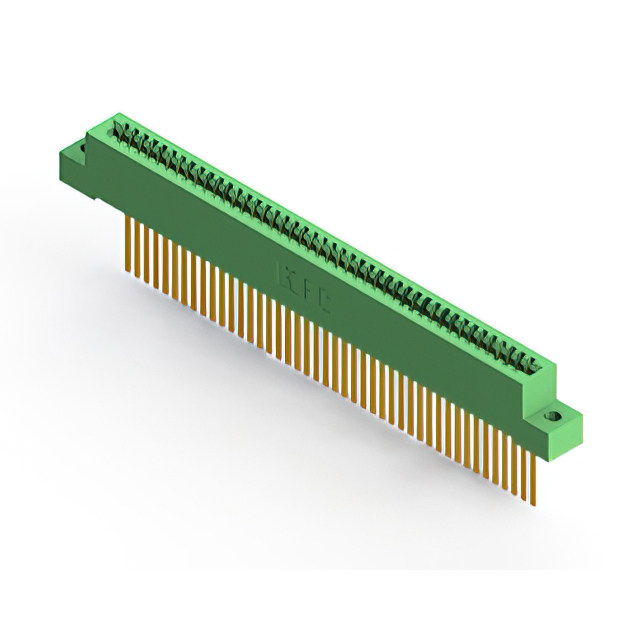

EDAC Inc. 842-044-544-102		Diallyl Phthalate (DAP)	Wire Wrap	Gold	125 °C	-40 C	0.1 "	2.54 mm	Green		44	Flush Mount Top Opening Unthreaded	Single	Non Specified - Single Edge	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Copper Alloy	Through Hole	0.25 Ám	10 Áin	44	1	1	3.25 mm	0.128 "

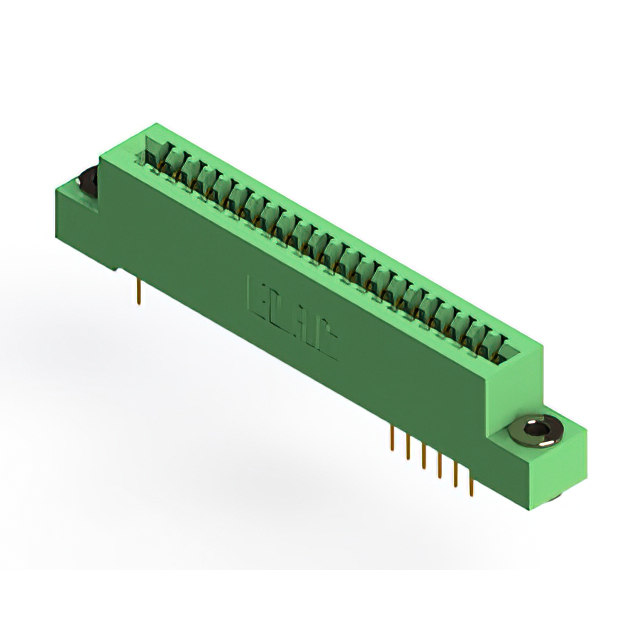

EDAC Inc. 842-044-524-203	2	Diallyl Phthalate (DAP)	Solder	Gold	125 °C	-40 C	0.1 "	2.54 mm	Green	2	22	Floating Bobbin Flush Mount	Dual	Non Specified - Dual Edge	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Copper Alloy	Through Hole	0.25 Ám	10 Áin	44			2.95 mm	0.116 "

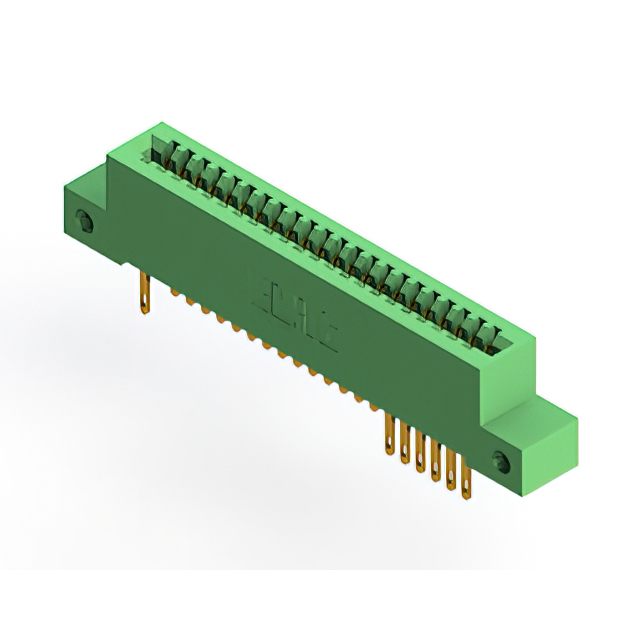

EDAC Inc. 842-044-500-212	2	Diallyl Phthalate (DAP)	Solder Eyelet(s)	Gold	125 °C	-40 C	0.1 "	2.54 mm	Green	2	22	Flush Mount Side Opening Unthreaded	Dual	Non Specified - Dual Edge	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Copper Alloy	Through Hole	0.25 Ám	10 Áin	44			3.25 mm	0.128 "
EDAC Inc. 842-044-524-202	2	Diallyl Phthalate (DAP)	Solder	Gold	125 °C	-40 C	0.1 "	2.54 mm	Green	2	22	Flush Mount Top Opening Unthreaded	Dual	Non Specified - Dual Edge	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Copper Alloy	Through Hole	0.25 Ám	10 Áin	44			3.25 mm	0.128 "

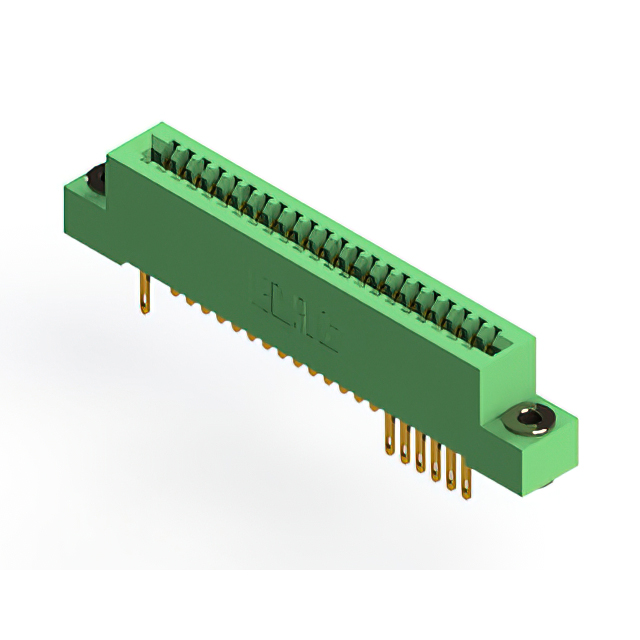

EDAC Inc. 842-044-500-203	2	Diallyl Phthalate (DAP)	Solder Eyelet(s)	Gold	125 °C	-40 C	0.1 "	2.54 mm	Green	2	22	Floating Bobbin Flush Mount	Dual	Non Specified - Dual Edge	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Copper Alloy	Through Hole	0.25 Ám	10 Áin	44			2.95 mm	0.116 "

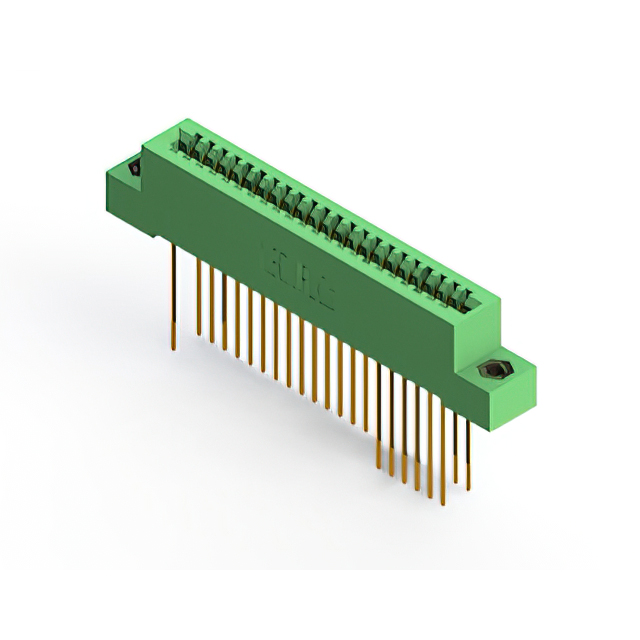

EDAC Inc. 842-044-541-207	2	Diallyl Phthalate (DAP)	Wire Wrap	Gold	125 °C	-40 C	0.1 "	2.54 mm	Green	2	22	Flush Mount M3 Threaded Insert Top Opening	Dual	Non Specified - Dual Edge	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Copper Alloy	Through Hole	0.25 Ám	10 Áin	44

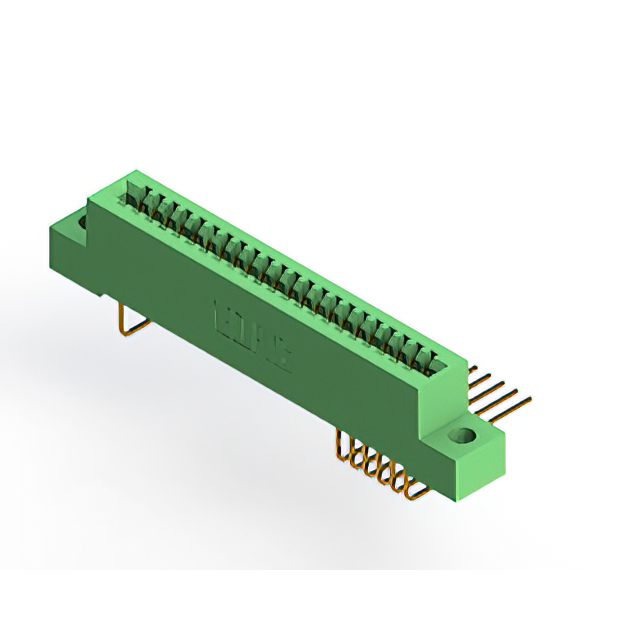

EDAC Inc. 842-044-558-204	2	Diallyl Phthalate (DAP)	Solder	Gold	125 °C	-40 C	0.1 "	2.54 mm	Green	2	22	Flush Mount Top Opening Unthreaded	Dual	Non Specified - Dual Edge	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Copper Alloy	Right Angle Through Hole	0.25 Ám	10 Áin	44			3.96 mm	0.156 "
