R14121 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

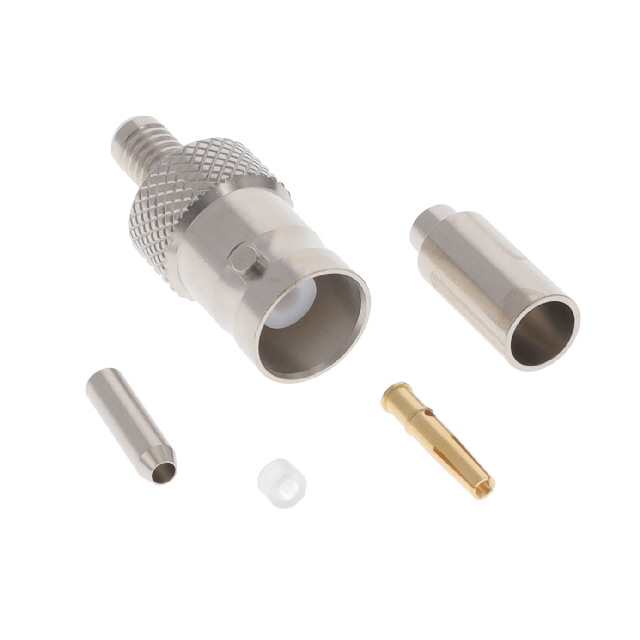

BNC / STRAIGHT JACK CRIMP TYPE C
| Part | Dielectric Material | Body Finish | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Body Material | Mating Cycles | Impedance | Shield Termination | Connector Style | Contact Termination | Cable Group | Cable Group | Fastening Type | Housing Color | Number of Ports | Connector Type | Frequency - Max [Max] | Mounting Type | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Nylon Polyamide (PA) Polytetrafluoroethylene (PTFE) | Nickel | 500 V | -65 ░C | 165 °C | Gold | Brass | 500 | 50 Ohms | Crimp | BNC | Crimp | RG-174 | 316 | Bayonet Lock | Silver | 1 | Female Socket Jack | 4 GHz | Free Hanging (In-Line) | Beryllium Copper |
 Radiall USA, Inc. | Nylon Polyamide (PA) Polytetrafluoroethylene (PTFE) | Nickel | 500 V | -65 ░C | 165 °C | Gold | Brass | 500 | 50 Ohms | Crimp | BNC | Crimp | RG-174 | 316 | Bayonet Lock | Silver | 1 | Female Socket Jack | 4 GHz | Free Hanging (In-Line) | Beryllium Copper |
