G15LX Series
Manufacturer: Kycon, Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
CONN JACK RA W/LED 2.5G
| Part | Tab Direction | Mounting Type | Contact Finish | Shielding | Contact Material | Height Above Board | LED Color | Orientation Angle | Orientation Direction | Applications | Termination | Number of Cores per Jack | Connector Type | Operating Temperature (Min) | Operating Temperature (Max) | Features | Number of Rows | Number of Ports | Housing Material | Shield Material | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

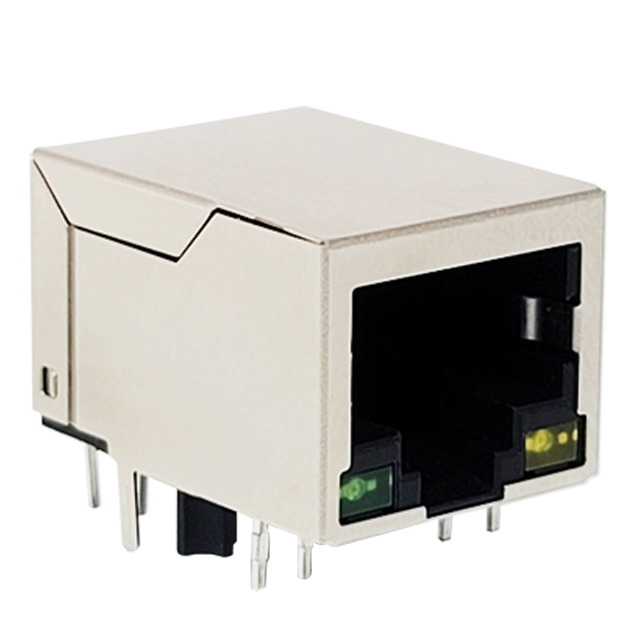

 Kycon, Inc. | Down | Through Hole | Gold | Shielded | Phosphor Bronze | 0.53 in | Green - Yellow | 90 ° | Right | 2.5G Base-T | Solder | 8 | RJ45 | -40 °C | 85 °C | Board Guide | 1 | 1 | PBT Polybutylene Terephthalate | Brass | 15 µin |

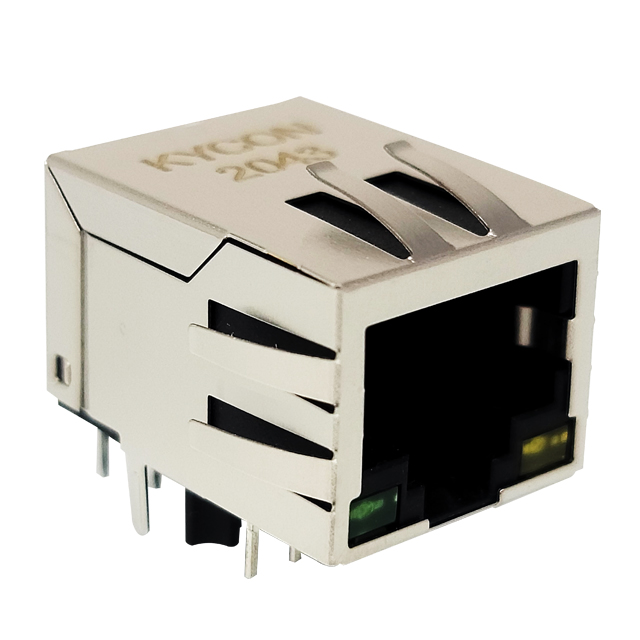

 Kycon, Inc. | Down | Through Hole | Gold | EMI Finger Shielded | Phosphor Bronze | 0.53 in | Green - Yellow | 90 ° | Right | 2.5G Base-T | Solder | 8 | RJ45 | -40 °C | 85 °C | Board Guide | 1 | 1 | PBT Polybutylene Terephthalate | Brass | 15 µin |
