325-011 Series
Manufacturer: EDAC Inc.
Beta
⌘K

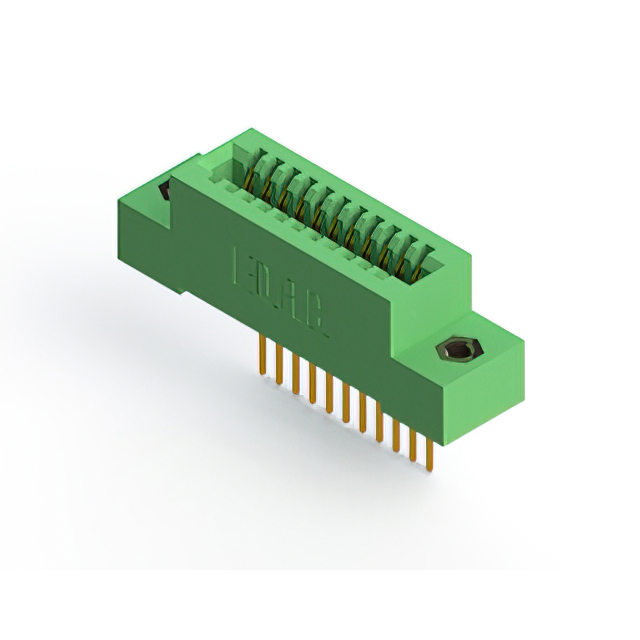

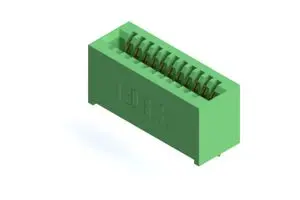

CARD EDGE CONNECTOR, SINGLE SIDE, 3.18 MM, 11 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Material - Insulation | Termination Rows | Read Out | Color | Pitch | Pitch | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Number of Rows | Number of Positions/Bay/Row | Termination | Card Type | Mounting Type | Number of Positions | Contact Material | Contact Type | Gender | Card Thickness | Card Thickness | Contact Finish Thickness | Contact Finish Thickness | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Single | Green | 0.1 " | 2.54 mm | -65 ░C | 125 °C | Gold | 1 | 11 | Solder | Non Specified - Single Edge | Through Hole | 11 | Copper Alloy | Cantilever | Female | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Single | Green | 0.1 " | 2.54 mm | -65 ░C | 125 °C | Gold | 1 | 11 | Wire Wrap | Non Specified - Single Edge | Through Hole | 11 | Copper Alloy | Cantilever | Female | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | Flush Mount M3 Threaded Insert Top Opening |
