350-V3 Series
Manufacturer: Preci-Dip
Beta
⌘K

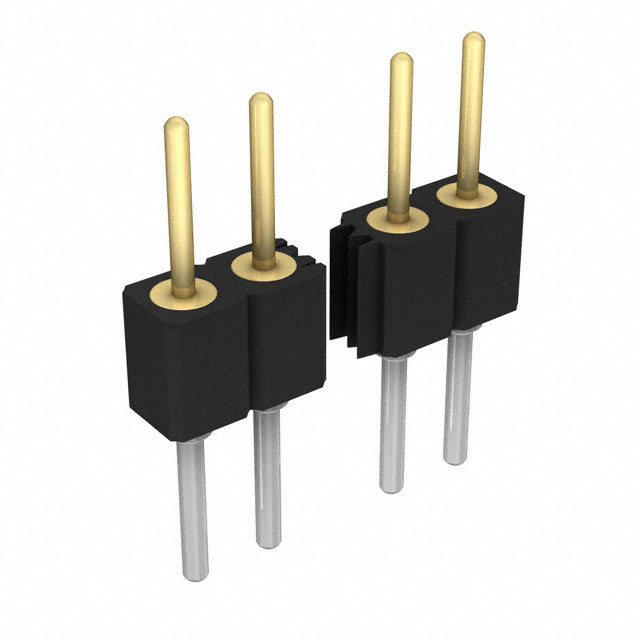

CONN HEADER VERT 52POS 2.54MM
| Part | Number of Rows | Current Rating (Amps) | Number of Positions | Fastening Type | Insulation Color | Contact Finish - Post | Shrouding | Contact Finish - Mating | Voltage Rating | Contact Length - Post [x] | Contact Length - Post [x] | Contact Shape | Number of Positions Loaded | Contact Material | Termination | Mounting Type | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Contact Length - Mating | Contact Length - Mating | Connector Type | Insulation Material | Overall Contact Length | Overall Contact Length | Contact Type | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Height | Insulation Height | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | 1 | 3 A | 52 | Push-Pull | Black | Tin | Unshrouded | Gold | 150 VDC | 0.114 in | 2.9 mm | Circular | All | Brass | Solder | Through Hole | 29.5 µin | 0.75 µm | 0.141 in | 3.6 mm | Header | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 10 mm | 0.394 in | Male Pin | UL94 V-0 | 0.1 " | 2.54 mm | -55 C | 125 °C | |||
 Preci-Dip | 1 | 3 A | 58 | Push-Pull | Black | Tin | Unshrouded | Gold | 150 VDC | Circular | All | Brass | Solder | Surface Mount | 29.5 µin | 0.75 µm | 0.141 in | 3.6 mm | Header | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Male Pin | UL94 V-0 | 0.1 " | 2.54 mm | -55 C | 125 °C | 0.116 " | 2.95 mm | |||||
Preci-Dip | 1 | 3 A | 56 | Push-Pull | Black | Tin | Unshrouded | Gold | 150 VDC | 0.114 in | 2.9 mm | Circular | All | Brass | Solder | Through Hole | 29.5 µin | 0.75 µm | 0.141 in | 3.6 mm | Header | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 10 mm | 0.394 in | Male Pin | UL94 V-0 | 0.1 " | 2.54 mm | -55 C | 125 °C | |||
Preci-Dip | 1 | 3 A | 9 | Push-Pull | Black | Tin | Unshrouded | Gold | 150 VDC | Circular | All | Brass | Solder | Surface Mount | 29.5 µin | 0.75 µm | 0.141 in | 3.6 mm | Header | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Male Pin | UL94 V-0 | 0.1 " | 2.54 mm | -55 C | 125 °C | 0.116 " | 2.95 mm | |||||
 Preci-Dip | 1 | 3 A | 9 | Push-Pull | Black | Tin | Unshrouded | Gold | 150 VDC | Circular | All | Brass | Solder | Surface Mount | 29.5 µin | 0.75 µm | 0.141 in | 3.6 mm | Header | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Male Pin | UL94 V-0 | 0.1 " | 2.54 mm | -55 C | 125 °C | 0.116 " | 2.95 mm | Pick and Place | ||||
Preci-Dip | 1 | 3 A | 59 | Push-Pull | Black | Tin | Unshrouded | Gold | 150 VDC | 0.114 in | 2.9 mm | Circular | All | Brass | Solder | Through Hole | 29.5 µin | 0.75 µm | 0.141 in | 3.6 mm | Header | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 10 mm | 0.394 in | Male Pin | UL94 V-0 | 0.1 " | 2.54 mm | -55 C | 125 °C | |||
Preci-Dip | 1 | 3 A | 22 | Push-Pull | Black | Tin | Unshrouded | Gold | 150 VDC | Circular | All | Brass | Solder | Surface Mount | 29.5 µin | 0.75 µm | 0.141 in | 3.6 mm | Header | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Male Pin | UL94 V-0 | 0.1 " | 2.54 mm | -55 C | 125 °C | 0.116 " | 2.95 mm | |||||
Preci-Dip | 1 | 3 A | 15 | Push-Pull | Black | Tin | Unshrouded | Gold | 150 VDC | Circular | All | Brass | Solder | Surface Mount | 29.5 µin | 0.75 µm | 0.141 in | 3.6 mm | Header | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Male Pin | UL94 V-0 | 0.1 " | 2.54 mm | -55 C | 125 °C | 0.116 " | 2.95 mm | |||||
Preci-Dip | 1 | 3 A | 55 | Push-Pull | Black | Tin | Unshrouded | Gold | 150 VDC | 0.114 in | 2.9 mm | Circular | All | Brass | Solder | Through Hole | 29.5 µin | 0.75 µm | 0.141 in | 3.6 mm | Header | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 10 mm | 0.394 in | Male Pin | UL94 V-0 | 0.1 " | 2.54 mm | -55 C | 125 °C | |||
Preci-Dip | 1 | 3 A | 44 | Push-Pull | Black | Tin | Unshrouded | Gold | 150 VDC | 0.114 in | 2.9 mm | Circular | All | Brass | Solder | Through Hole | 29.5 µin | 0.75 µm | 0.141 in | 3.6 mm | Header | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 10 mm | 0.394 in | Male Pin | UL94 V-0 | 0.1 " | 2.54 mm | -55 C | 125 °C |
