D4S20L Series
Manufacturer: Rosenberger
Beta
⌘K
CONN HSD FAKRA PLUG R/A 100OHM
| Part | Mating Cycles | Voltage Rating | Center Contact Plating | Body Finish | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Center Contact Material | Shield Termination | Contact Termination | Features | Connector Style | Fastening Type | Number of Ports | Frequency - Max [Max] | Mounting Type | Impedance | Connector Type | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

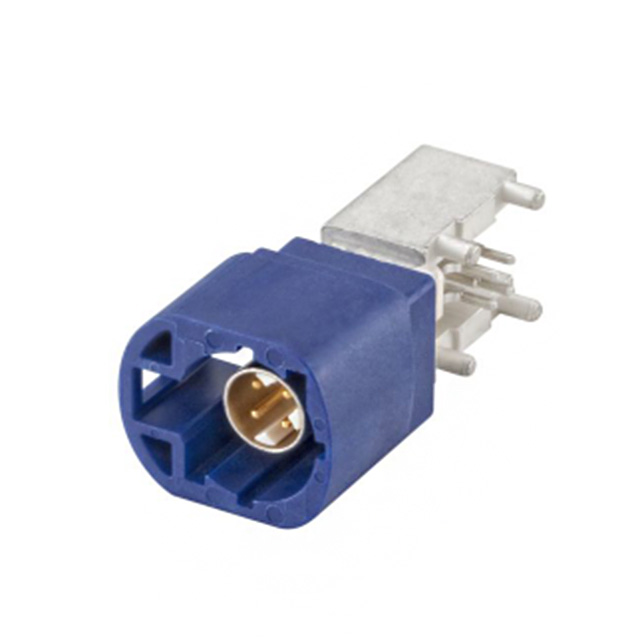

 Rosenberger | 25 | 100 V | Gold | Nickel | Liquid Crystal Polymer (LCP) | -40 C | 105 ░C | Brass | Bronze | Solder | Solder | Code C | Fakra HSD® Quadraxial | Latch Lock | 1 | 2 GHz | Right Angle Through Hole | 100 Ohms | Plug Male Pin | Blue |

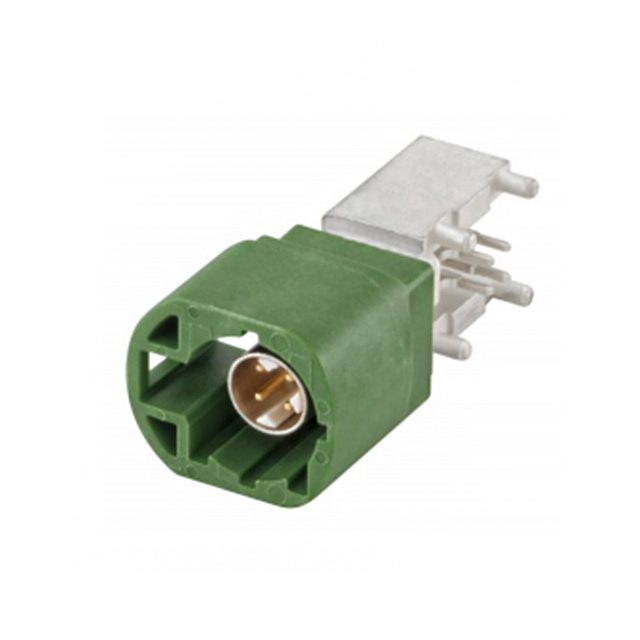

 Rosenberger | 25 | 100 V | Gold | Nickel | Liquid Crystal Polymer (LCP) | -40 C | 105 ░C | Brass | Bronze | Solder | Solder | Code E | Fakra HSD® Quadraxial | Latch Lock | 1 | 2 GHz | Right Angle Through Hole | 100 Ohms | Plug Male Pin | Green |
 Rosenberger | 25 | 100 V | Gold | Nickel | Liquid Crystal Polymer (LCP) | -40 C | 105 ░C | Brass | Bronze | Solder | Solder | Code D | Fakra HSD® Quadraxial | Latch Lock | 1 | 2 GHz | Right Angle Through Hole | 100 Ohms | Plug Male Pin | Bordeaux Violet |
