628-W15 Series

Manufacturer: EDAC Inc.

Catalog

D SUB CONNECTOR, STANDARD, RECEPTACLE, 628W SERIES, 15 CONTACTS, DA, SOLDER CUP

Part	Dielectric Material	Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Flange Feature	Number of Positions	Shell Size, Connector Layout	Ingress Protection	Contact Type	Number of Rows [custom]	Mounting Type	Contact Finish	Shell Material, Finish	Current Rating (Amps)	Contact Finish Thickness	Material Flammability Rating	Connector Style	Connector Type	Features	Termination	Contact Finish Thickness	Contact Finish Thickness

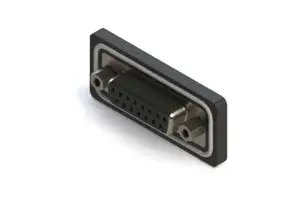

EDAC Inc. 628-W15-222-012	Polybutylene Terephthalate (PBT) Glass Filled	Black	85 °C	-25 °C	Copper Alloy	4-40	15	2	IP67 - Dust Tight Waterproof	Signal and Power	2	Free Hanging (In-Line)	Gold	Nickel Plated Steel	5 A	Flash	UL94 V-0	D-Sub	Receptacle Female Sockets

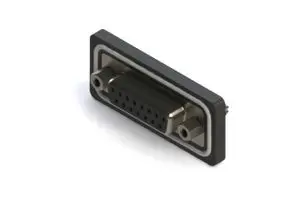

EDAC Inc. 628-W15-220-013	Polybutylene Terephthalate (PBT) Glass Filled	Black	85 °C	-25 °C	Copper Alloy	4-40	15	2	IP67 - Dust Tight Waterproof	Signal and Power	2	Through Hole	Gold	Nickel Plated Steel	5 A	Flash	UL94 V-0	D-Sub	Receptacle Female Sockets	Board Lock	Solder

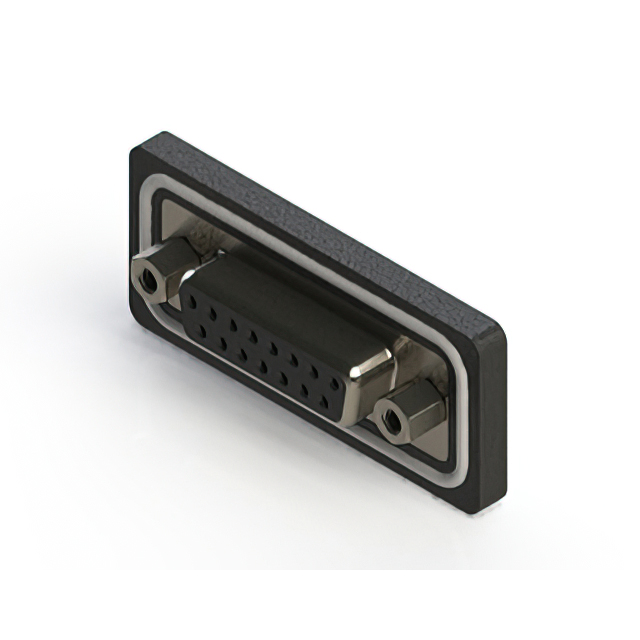

EDAC Inc. 628-W15-622-012	Polybutylene Terephthalate (PBT) Glass Filled	Black	85 °C	-25 °C	Copper Alloy	4-40	15	2	IP67 - Dust Tight Waterproof	Signal and Power	2	Free Hanging (In-Line)	Gold	Nickel Plated Steel	5 A		UL94 V-0	D-Sub	Receptacle Female Sockets			30 Áin	0.76 Ám

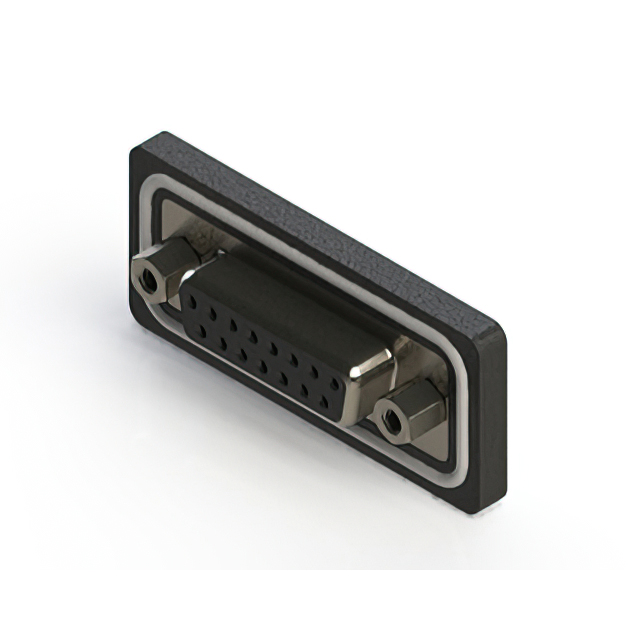

EDAC Inc. 628-W15-322-012	Polybutylene Terephthalate (PBT) Glass Filled	Black	85 °C	-25 °C	Copper Alloy	4-40	15	2	IP67 - Dust Tight Waterproof	Signal and Power	2	Free Hanging (In-Line)	Gold	Nickel Plated Steel	5 A		UL94 V-0	D-Sub	Receptacle Female Sockets			15 µin	0.38 µm

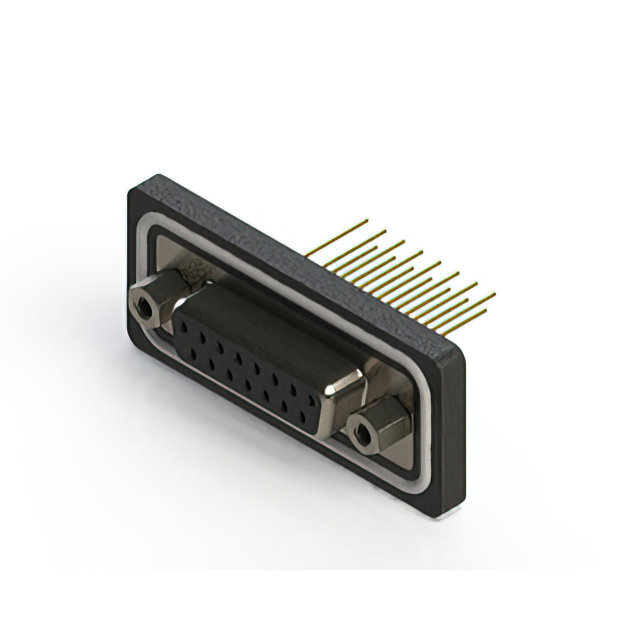

EDAC Inc. 628-W15-321-012	Polybutylene Terephthalate (PBT) Glass Filled	Black	85 °C	-25 °C	Copper Alloy	4-40	15	2	IP67 - Dust Tight Waterproof	Signal and Power	2	Through Hole	Gold	Nickel Plated Steel	5 A		UL94 V-0	D-Sub	Receptacle Female Sockets		Solder	15 µin	0.38 µm
EDAC Inc. 628-W15-320-013	Polybutylene Terephthalate (PBT) Glass Filled	Black	85 °C	-25 °C	Copper Alloy	4-40	15	2	IP67 - Dust Tight Waterproof	Signal and Power	2	Through Hole	Gold	Nickel Plated Steel	5 A		UL94 V-0	D-Sub	Receptacle Female Sockets	Board Lock	Solder	15 µin	0.38 µm
EDAC Inc. 628-W15-320-012	Polybutylene Terephthalate (PBT) Glass Filled	Black	85 °C	-25 °C	Copper Alloy	4-40	15	2	IP67 - Dust Tight Waterproof	Signal and Power	2	Through Hole	Gold	Nickel Plated Steel	5 A		UL94 V-0	D-Sub	Receptacle Female Sockets		Solder	15 µin	0.38 µm

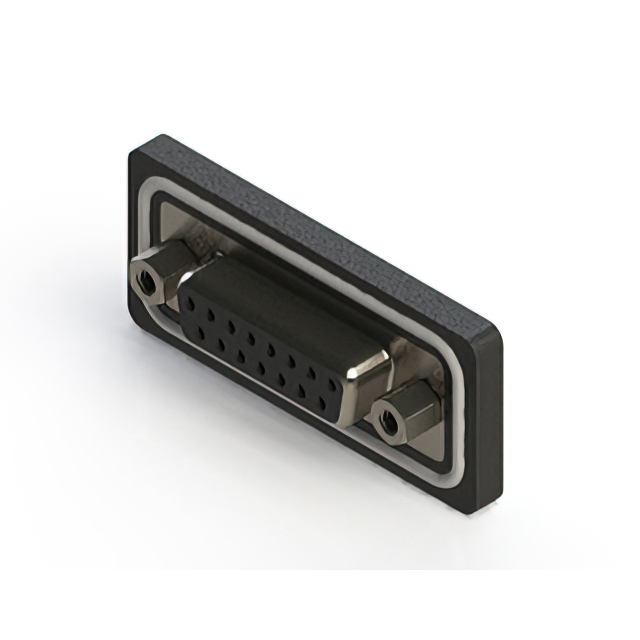

EDAC Inc. 628-W15-220-012	Polybutylene Terephthalate (PBT) Glass Filled	Black	85 °C	-25 °C	Copper Alloy	4-40	15	2	IP67 - Dust Tight Waterproof	Signal and Power	2	Through Hole	Gold	Nickel Plated Steel	5 A	Flash	UL94 V-0	D-Sub	Receptacle Female Sockets		Solder

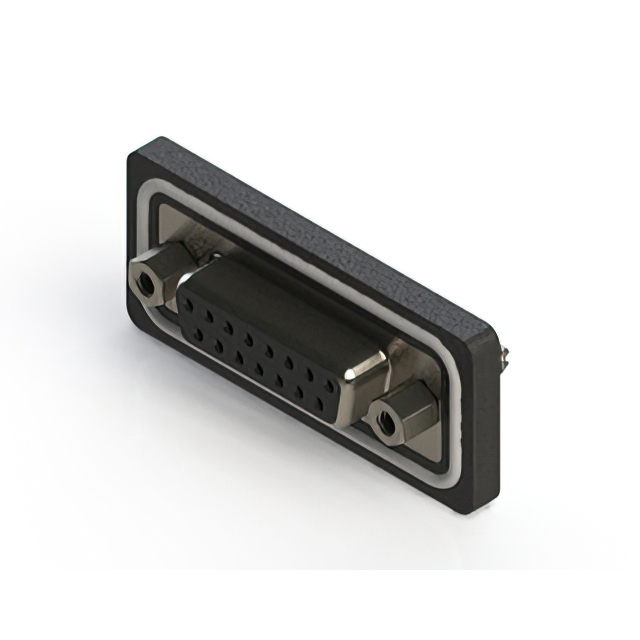

EDAC Inc. 628-W15-620-013	Polybutylene Terephthalate (PBT) Glass Filled	Black	85 °C	-25 °C	Copper Alloy	4-40	15	2	IP67 - Dust Tight Waterproof	Signal and Power	2	Through Hole	Gold	Nickel Plated Steel	5 A		UL94 V-0	D-Sub	Receptacle Female Sockets	Board Lock	Solder	30 Áin	0.76 Ám
