PEMI8 Series

Manufacturer: Freescale Semiconductor - NXP

Catalog

FILTER RC(PI) 200 OHM/23PF SMD

Part	Number of Channels	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Applications	Resistance - Channel (Ohms)	Type	Values	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Filter Order	Attenuation Value	Height [z]	Height [z]	Technology

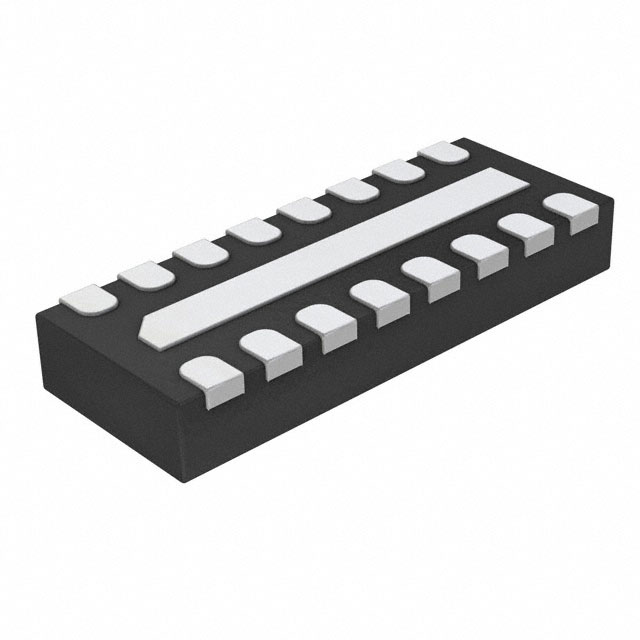

Freescale Semiconductor - NXP PEMI8QFN/WT,132	8	3.3 mm	0.047 in	1.2 mm	0.13 in	16-XFDFN Exposed Pad	LAN PCS WAN	200 Ohms	Low Pass	23 pF 200 Ohms	Surface Mount	85 °C	-40 °C	2nd	32 dB	0.02 in	0.5 mm	RC (Pi)
Freescale Semiconductor - NXP PEMI8QFN/HT,132	8	3.3 mm	0.047 in	1.2 mm	0.13 in	16-XFDFN Exposed Pad	LAN PCS WAN	45 Ohms	Low Pass	23 pF 45 Ohms	Surface Mount	85 °C	-40 °C	2nd	20 dB	0.02 in	0.5 mm	RC (Pi)
Freescale Semiconductor - NXP PEMI8QFN/CR,132	8	3.3 mm	0.047 in	1.2 mm	0.13 in	16-XFDFN Exposed Pad	LAN PCS WAN	20 Ohms	Low Pass	20 Ohms 21 pF	Surface Mount	85 °C	-40 °C	2nd	14 dB	0.02 in	0.5 mm	RC (Pi)
Freescale Semiconductor - NXP PEMI8QFN/RG,132	8	3.3 mm	0.047 in	1.2 mm	0.13 in	16-XFDFN Exposed Pad	LAN PCS WAN	100 Ohms	Low Pass	11 pF 100 Ohms	Surface Mount	85 °C	-40 °C	2nd	15 dB	0.02 in	0.5 mm	RC (Pi)
Freescale Semiconductor - NXP PEMI8QFN/RT,132	8	3.3 mm	0.047 in	1.2 mm	0.13 in	16-XFDFN Exposed Pad	LAN PCS WAN	100 Ohms	Low Pass	23 pF 100 Ohms	Surface Mount	85 °C	-40 °C	2nd	27 dB	0.02 in	0.5 mm	RC (Pi)
Freescale Semiconductor - NXP PEMI8QFN/RM,132	8	3.3 mm	0.047 in	1.2 mm	0.13 in	16-XFDFN Exposed Pad	LAN PCS WAN	100 Ohms	Low Pass	16 pF 100 Ohms	Surface Mount	85 °C	-40 °C	2nd	21 dB	0.02 in	0.5 mm	RC (Pi)
Freescale Semiconductor - NXP PEMI8QFN/LT,132	8	3.3 mm	0.047 in	1.2 mm	0.13 in	16-XFDFN Exposed Pad	LAN PCS WAN	65 Ohms	Low Pass	23 pF 65 Ohms	Surface Mount	85 °C	-40 °C	2nd	23 dB	0.02 in	0.5 mm	RC (Pi)
Freescale Semiconductor - NXP PEMI8QFN/HP,132	8	3.3 mm	0.047 in	1.2 mm	0.13 in	16-XFDFN Exposed Pad	LAN PCS WAN	45 Ohms	Low Pass	18.5 pF 45 Ohms	Surface Mount	85 °C	-40 °C	2nd	17 dB	0.02 in	0.5 mm	RC (Pi)
Freescale Semiconductor - NXP PEMI8QFN/LM,132	8	3.3 mm	0.047 in	1.2 mm	0.13 in	16-XFDFN Exposed Pad	LAN PCS WAN	65 Ohms	Low Pass	16 pF 65 Ohms	Surface Mount	85 °C	-40 °C	2nd	17 dB	0.02 in	0.5 mm	RC (Pi)
Freescale Semiconductor - NXP PEMI8QFN/BYP,132	8	3.3 mm	0.047 in	1.2 mm	0.13 in	16-XFDFN Exposed Pad	LAN PCS WAN		Low Pass		Surface Mount	85 °C	-40 °C	2nd		0.02 in	0.5 mm	RC (Pi)
