SZ5KASMC7.0AT3G Series

Zen TVS 5000W 7.0V Uni DO-214AB TR13

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Zen TVS 5000W 7.0V Uni DO-214AB TR13

Part	Qualification	Voltage - Reverse Standoff (Typ)	Current - Peak Pulse (10/1000µs)	Applications	Bidirectional Channels [custom]	Package / Case	Power - Peak Pulse	Power - Peak Pulse	Mounting Type	Voltage - Clamping (Max) @ Ipp	Voltage - Breakdown (Min) [Min]	Grade	Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Voltage - Clamping (Max) @ Ipp [Max]	Unidirectional Channels [custom]
Littelfuse/Commercial Vehicle Products SZ5KASMC33CAT3G	AEC-Q101	33 V	93.8 A	General Purpose	1	DO-214AB SMC	5000 W	5 kW	Surface Mount	53.3 V	36.7 V	Automotive	Zener	175 ░C	-65 °C	SMC
Littelfuse/Commercial Vehicle Products SZ5KASMC18CAT3G	AEC-Q101	18 V	171.2 A	General Purpose	1	DO-214AB SMC	5000 W	5 kW	Surface Mount		20 V	Automotive	Zener	175 ░C	-65 °C	SMC	29.2 V
Littelfuse/Commercial Vehicle Products SZ5KASMC12CAT3G	AEC-Q101	12 V	251.3 A	General Purpose	1	DO-214AB SMC	5000 W	5 kW	Surface Mount		13.3 V	Automotive	Zener	175 ░C	-65 °C	SMC	19.9 V
Littelfuse/Commercial Vehicle Products SZ5KASMC20CAT3G	AEC-Q101	20 V	154.3 A	General Purpose	1	DO-214AB SMC	5000 W	5 kW	Surface Mount		22.2 V	Automotive	Zener	175 ░C	-65 °C	SMC	32.4 V
Littelfuse/Commercial Vehicle Products SZ5KASMC6.5AT3G	AEC-Q101	6.5 V	446.4 A			DO-214AB SMC	5000 W	5 kW	Surface Mount		7.22 V	Automotive	Zener	175 ░C	-65 °C	SMC	11.2 V	1
Littelfuse/Commercial Vehicle Products SZ5KASMC22AT3G
Littelfuse/Commercial Vehicle Products SZ5KASMC7.0AT3G	AEC-Q101	7 V	416.7 A			DO-214AB SMC	5000 W	5 kW	Surface Mount	12 V	7.8 V	Automotive	Zener	175 ░C	-65 °C	SMC		1

Catalog

Zen TVS 5000W 7.0V Uni DO-214AB TR13

Key Features

• Automotive grade, AEC-Q101 qualified and PPAP capable

• Peak power − 5000 W@1 ms

• Working peak reverse voltage range - 10 V to 36 V for Bi-directional

• Standard zener breakdown voltage range - 11.1 V to 44.2 V

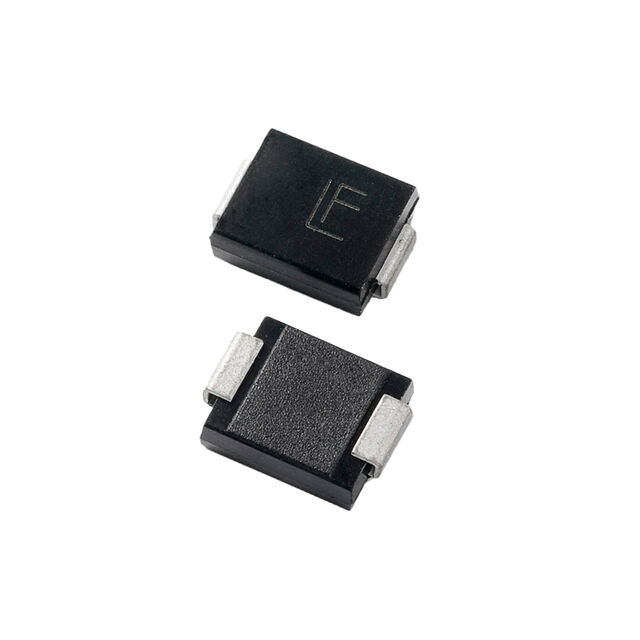

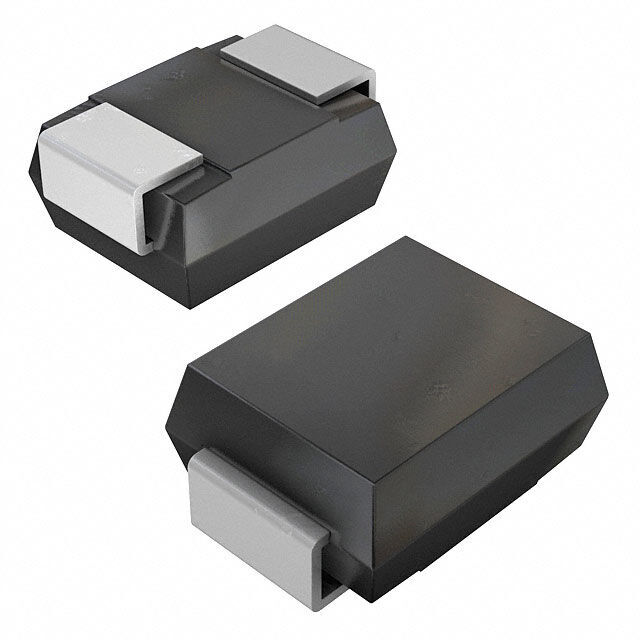

• Compact design in DO-214AB package

• ESD protection of data lines in accordance with IEC 61000-4-2 30 kV (Air), 30 kV (Contact)

• ESD rating of class 3 (>16 KV) per human body model

• Zener transient overvoltage suppressors

• Excellent clamping capability

• UL recognized compound meeting flammability rating V-0

Description

The SZ5KASMC series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. The SZ5KASMC series is supplied in the cost-effective, highly reliable DO-214AB package and it is ideal for use in automotive electronic applications.
