2002-1571 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

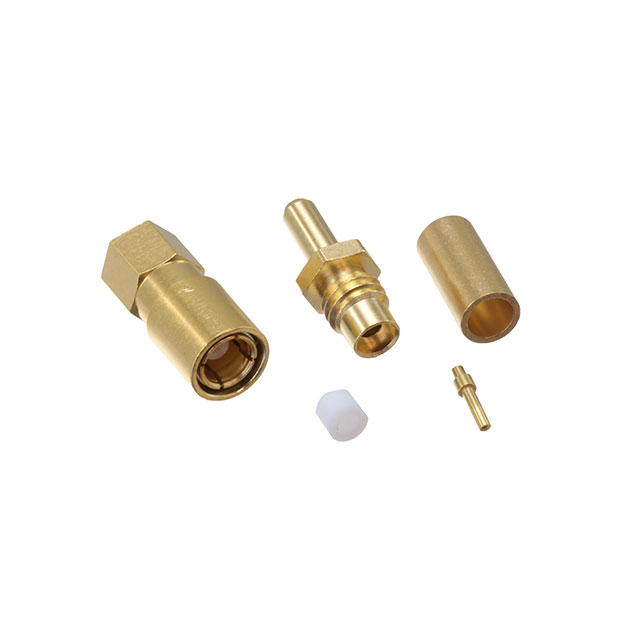

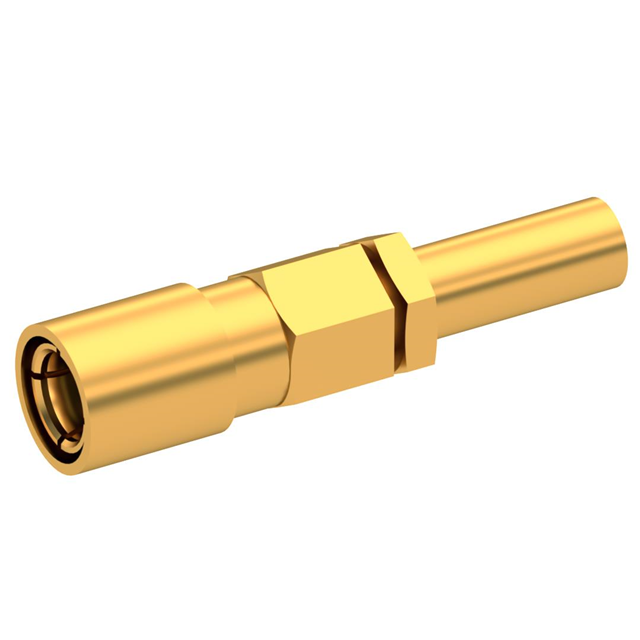

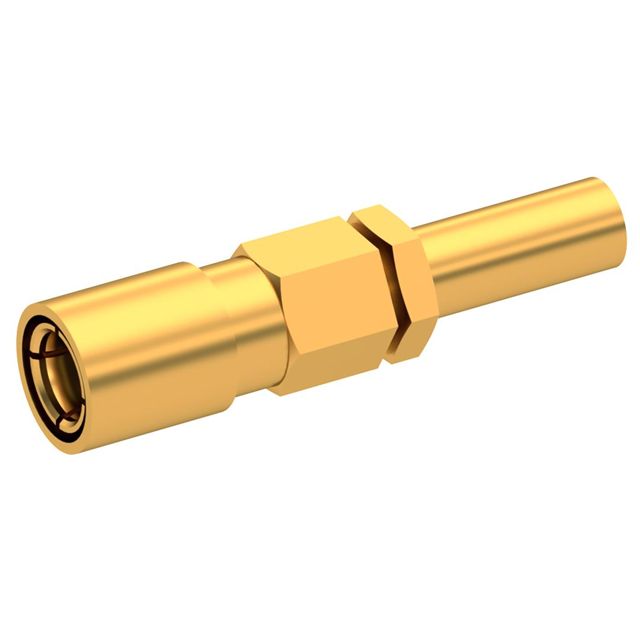

SMB F STR NA CR 2.6/50S
| Part | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Center Contact Plating | Voltage Rating | Mating Cycles | Dielectric Material | Mounting Type | Cable Group | Cable Group | Number of Ports | Connector Style | Contact Termination | Fastening Type | Connector Type | Impedance | Shield Termination | Frequency - Max [Max] | Housing Color | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | -65 ░C | 165 °C | Brass | Gold | 335 V | 500 | Polytetrafluoroethylene (PTFE) | Free Hanging (In-Line) | RG-174 | 316 | 1 | SMB | Crimp | Snap-On | Female Socket Plug | 50 Ohms | Crimp | 4 GHz | Gold | Beryllium Copper |
Radiall USA, Inc. | Gold | -65 ░C | 165 °C | Brass | Gold | 250 V | 500 | Polytetrafluoroethylene (PTFE) | Free Hanging (In-Line) | RG-178 | 196 | 1 | SMB | Crimp | Snap-On | Female Socket Plug | 50 Ohms | Crimp | 4 GHz | Gold | Beryllium Copper |
 Radiall USA, Inc. | Gold | -65 ░C | 165 °C | Brass | Gold | 335 V | 500 | Polytetrafluoroethylene (PTFE) | Free Hanging (In-Line) | RD-316 RG-316DS | 1 | SMB | Crimp | Snap-On | Female Socket Plug | 50 Ohms | Crimp | 4 GHz | Gold | Beryllium Copper | |
 Radiall USA, Inc. | Gold | -65 ░C | 165 °C | Brass | Gold | 500 | Polytetrafluoroethylene (PTFE) | Free Hanging (In-Line) | RD-316 RG-316DS | 1 | SMB | Crimp | Snap-On | Female Socket Plug | 50 Ohms | Crimp | 4 GHz | Gold | Beryllium Copper |
