RZ01-1C4 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

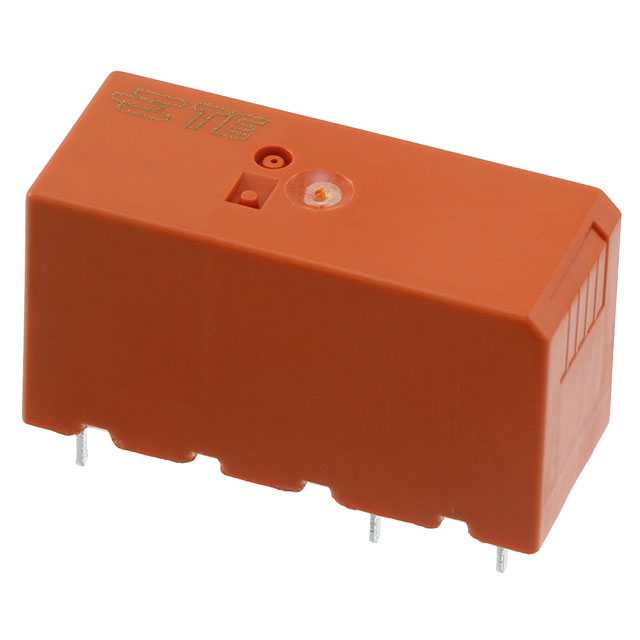

RELAY GEN PURPOSE SPDT 12A 12V
| Part | Coil Resistance | Must Release Voltage | Must Operate Voltage | Termination Style | Relay Type | Coil Insulation | Coil Voltage | Mounting Type | Load - Max Switching | Switching Voltage [Max] | Contact Material | Coil Type | Coil Current | Release Time | Contact Form | Operating Temperature [Max] | Operating Temperature [Min] | Contact Rating (Current) | Approval Agency | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 360 Ohms | 1.2 VDC | 8.4 VDC | PC Pin | General Purpose | Class F | 12 VDC | Through Hole | 4800 VA | 400 VAC | Silver Nickel (AgNi) | Non Latching | 33.3 mA | 6 ms | SPDT (1 Form C) | 85 °C | -40 C | 12 A | CQC cURus VDE | 8 ms |
 TE Connectivity AMP Connectors | 1440 Ohms | 2.4 VDC | 16.8 VDC | PC Pin | General Purpose | Class F | 24 VDC | Through Hole | 4800 VA | 400 VAC | Silver Nickel (AgNi) | Non Latching | 16.7 mA | 6 ms | SPDT (1 Form C) | 85 °C | -40 C | 12 A | CQC cURus VDE | 8 ms |
TE Connectivity AMP Connectors | 60 Ohms | 0.5 VDC | 3.5 VDC | PC Pin | General Purpose | Class F | 5 VDC | Through Hole | 4800 VA | 400 VAC | Silver Nickel (AgNi) | Non Latching | 84 mA | 6 ms | SPDT (1 Form C) | 85 °C | -40 C | 12 A | CQC cURus VDE | 8 ms |
