1617788 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

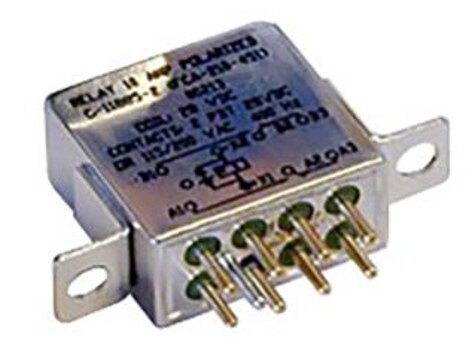

INDUSTRIAL RELAYS FCA-210-0915L
| Part | Coil Type | Contact Form | Relay Type | Contact Rating (Current) | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Seal Rating | Coil Resistance | Switching Voltage [Max] | Must Operate Voltage | Coil Current | Release Time | Termination Style | Coil Voltage | Must Release Voltage | Mounting Type | Load - Max Switching | Features | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Non Latching | DPDT (2 Form C) | General Purpose | 10 A | -70 °C | 125 °C | Silver Cadmium Oxide (AgCdO) | Sealed - Hermetically | ||||||||||||
 TE Connectivity AMP Connectors | Non Latching | SPDT (1 Form C) | General Purpose | 25 A | -70 °C | 125 °C | Silver Cadmium Oxide (AgCdO) | Sealed - Hermetically | 320 Ohms | 28 VDC 115 VAC | 18 VDC | 87.5 mA | 10 ms | Solder Hook | 28 VDC | 1.5 VDC | Chassis Mount | 700 W 2875 VA | Diode | 10 ms |
TE Connectivity AMP Connectors | Non Latching | DPDT (2 Form C) | General Purpose | 10 A | -70 °C | 125 °C | Silver Cadmium Oxide (AgCdO) | Sealed - Hermetically | 80 Ohms | 28 VDC 115 VAC | 9 VDC | 0.15 A | 10 ms | PC Pin | 12 VDC | 0.75 VDC | Chassis Mount | Diode | 10 ms | |
TE Connectivity AMP Connectors | Non Latching | DPDT (2 Form C) | General Purpose | 10 A | -70 °C | 125 °C | Silver Cadmium Oxide (AgCdO) | Sealed - Hermetically | 920 Ohms | 28 VDC 115 VAC | 52.2 mA | 10 ms | PC Pin | 48 VDC | 2.5 VDC | Chassis Mount | Diode | 10 ms | ||
TE Connectivity AMP Connectors | Non Latching | DPDT (2 Form C) | General Purpose | 10 A | -70 °C | 125 °C | Silver Cadmium Oxide (AgCdO) | Sealed - Hermetically | 80 Ohms | 28 VDC 115 VAC | 9 VDC | 0.15 A | 10 ms | PC Pin | 12 VDC | 0.75 VDC | Chassis Mount | Diode | 10 ms | |
TE Connectivity AMP Connectors | Non Latching | DPDT (2 Form C) | General Purpose | 10 A | -70 °C | 125 °C | Silver Cadmium Oxide (AgCdO) | Sealed - Hermetically | 320 Ohms | 28 VDC 115 VAC | 18 VDC | 87.5 mA | 10 ms | PC Pin | 28 VDC | 1.5 VDC | Chassis Mount | Diode | 10 ms | |
TE Connectivity AMP Connectors | Non Latching | DPDT (2 Form C) | General Purpose | 10 A | -70 °C | 125 °C | Silver Cadmium Oxide (AgCdO) | Sealed - Hermetically | 80 Ohms | 28 VDC 115 VAC | 9 VDC | 0.15 A | 10 ms | PC Pin | 12 VDC | 0.75 VDC | Chassis Mount | Diode | 10 ms | |
TE Connectivity AMP Connectors | Non Latching | DPDT (2 Form C) | General Purpose | 10 A | -70 °C | 125 °C | Silver Cadmium Oxide (AgCdO) | Sealed - Hermetically | ||||||||||||
TE Connectivity AMP Connectors | Non Latching | DPDT (2 Form C) | General Purpose | 10 A | -70 °C | 125 °C | Silver Cadmium Oxide (AgCdO) | Sealed - Hermetically | 920 Ohms | 28 VDC 115 VAC | 52.2 mA | 10 ms | PC Pin | 48 VDC | 2.5 VDC | Chassis Mount | Diode | 10 ms | ||
TE Connectivity AMP Connectors | Non Latching | DPDT (2 Form C) | General Purpose | 10 A | -70 °C | 125 °C | Silver Cadmium Oxide (AgCdO) | Sealed - Hermetically | 920 Ohms | 28 VDC 115 VAC | 52.2 mA | 10 ms | PC Pin | 48 VDC | 2.5 VDC | Chassis Mount | Diode | 10 ms |
