MD-40 Series

Catalog

CONN RCPT FMALE MINI DIN 4P SLDR

Part	Color	Connector Type	Shell Material	Shell Size - Insert	Mounting Type	Insert Material	Contact Material	Fastening Type	Shell Finish	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Primary Material	Features	Termination	Voltage Rating	Contact Finish - Mating	Orientation	Shielding	Mounting Feature

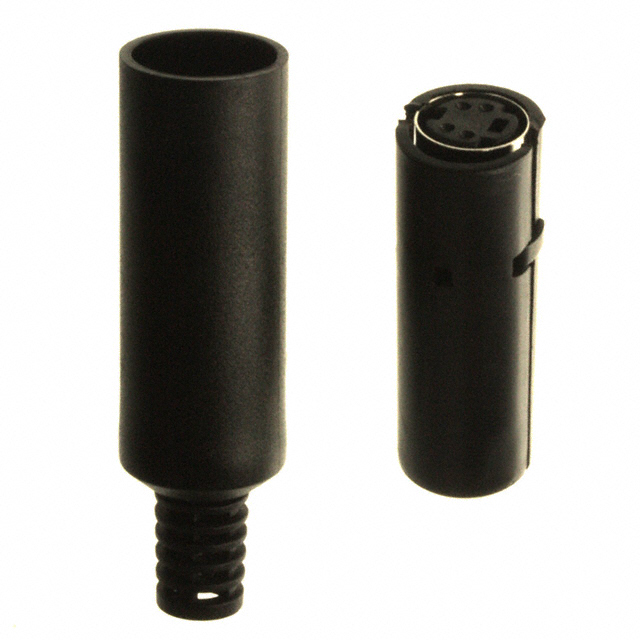

Same Sky (Formerly CUI Devices) MD-40J	Black	Receptacle Female Sockets	Copper	Mini DIN	Free Hanging (In-Line)	Polyamide (PA6) Nylon 6	Brass	Push-Pull	Black Nickel	UL94 V-0	-20 ░C	105 ░C	4	Metal	Ground Strain Relief	Crimp Pin Adapter Available Solder	12 VDC 100 VAC	Silver	Keyed	Unshielded
Same Sky (Formerly CUI Devices) MD-40PL100	Black	Receptacle Female Sockets	Polybutylene Terephthalate (PBT)	Mini DIN	Panel Mount			Push-Pull		UL94 V-0	-40 C	85 °C	4	Plastic	Ground	Wire Leads	12 VDC 100 VAC		Keyed	Unshielded	Flange
Same Sky (Formerly CUI Devices) MD-40PL100	Black	Receptacle Female Sockets	Polybutylene Terephthalate (PBT)	Mini DIN	Panel Mount		Phosphor Bronze	Push-Pull		UL94 V-0	-40 C	85 °C	4	Plastic	Ground	Wire Leads	12 VDC 100 VAC		Keyed	Unshielded	Flange
