FP25R12 Series

Manufacturer: INFINEON

Catalog

TRANS IGBT MODULE N-CH 1200V 39A 190W TRAY

Part	Vce(on) (Max) @ Vge, Ic [Max]	Input	Operating Temperature [Min]	Operating Temperature [Max]	Configuration	Supplier Device Package	Input Capacitance (Cies) @ Vce	IGBT Type	Current - Collector Cutoff (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Mounting Type	Package / Case	Power - Max [Max]	Vce(on) (Max) @ Vge, Ic

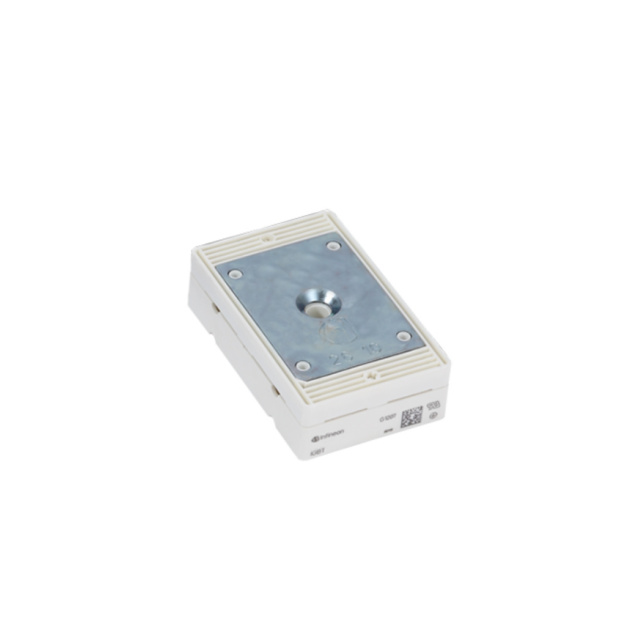

INFINEON FP25R12U1T4BPSA1	2.25 V	Standard	-40 C	150 °C	Three Phase Inverter	Module	1.45 nF	Trench Field Stop	1 mA	39 A	1200 V	Chassis Mount	Module
INFINEON FP25R12W2T4B11BOMA1	2.25 V	Standard	-40 °C	150 °C	Three Phase Inverter	Module	1.45 nF	Trench Field Stop	1 mA	39 A	1200 V	Chassis Mount	Module	175 W

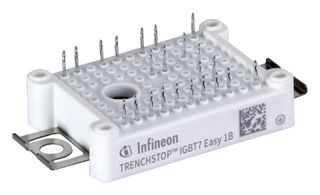

INFINEON FP25R12W1T7B11BPSA1	1.6 V	Three Phase Bridge Rectifier	-40 C	175 °C	Three Phase Inverter	AG-EASY1B-2	4.77 nF	Trench Field Stop	5.6 µA	25 A	1200 V	Chassis Mount	Module	20 mW
INFINEON FP25R12N2T7B16BPSA1		Standard				AG-EASY2B		Trench Field Stop				Chassis Mount	Module
INFINEON FP25R12KT4B16BOSA1
INFINEON FP25R12N2T7B80BPSA1		Standard				AG-EASY2B		Trench Field Stop				Chassis Mount	Module
INFINEON FP25R12KT4B11BOSA1		Standard	-40 C	150 °C	Three Phase Inverter	Module	1.45 nF	Trench Field Stop	1 mA	25 A	1200 V	Chassis Mount	Module	160 W	2.15 V
INFINEON FP25R12KT4B15BOSA1		Standard	-40 C	150 °C	Three Phase Inverter	Module	1.45 nF	Trench Field Stop	1 mA	25 A	1200 V	Chassis Mount	Module	160 W	2.15 V

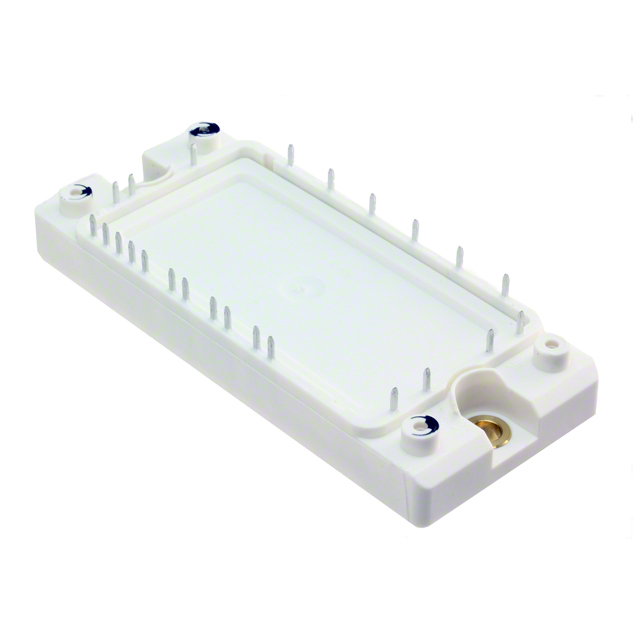

INFINEON FP25R12KE3BOSA1		Standard	-40 C	125 °C	Three Phase Inverter	Module	1.8 nF	Trench Field Stop	1 mA	40 A	1200 V	Chassis Mount	Module	155 W	2.15 V
INFINEON FP25R12KT3BPSA1		Three Phase Bridge Rectifier	-40 C	125 °C	Three Phase Inverter	AG-ECONO2-8	1.8 nF		5 mA	40 A	1200 V	Chassis Mount	Module	105 W	2.15 V
