ER1537 Series

Manufacturer: Delevan

Catalog

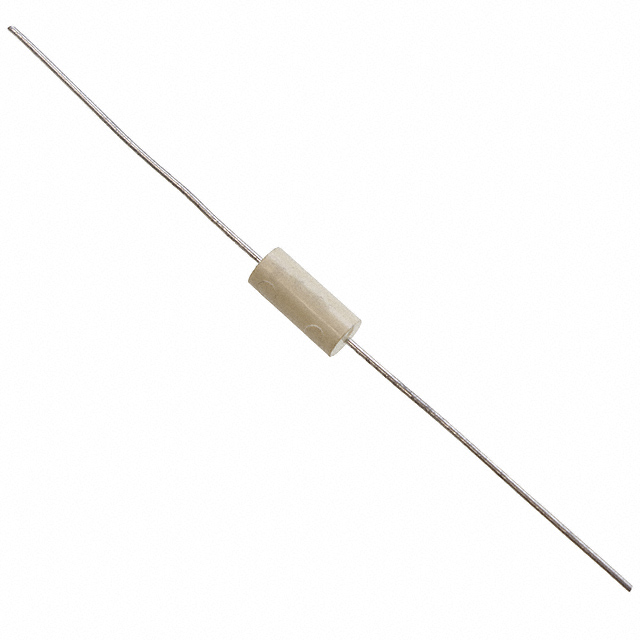

RF INDUCTORS - LEADED 30UH 5% 3OHM EST RELI THRUHOLE RF

Part	Inductance	Mounting Type	Current Rating (Amps)	Material - Core	Frequency - Self Resonant	Inductance Frequency - Test	Type	DC Resistance (DCR) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Shielding	Tolerance	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Q @ Freq	DC Resistance (DCR)	Q @ Freq [custom]	Q @ Freq [custom]
Delevan ER1537-20KP	2.2 µH	Through Hole	435 mA	Phenolic	135 MHz	7.9 MHz	Molded	950 mOhm	-55 C	105 ░C	Axial	Unshielded	10 %	0.156 in	9.53 mm	3.96 mm	0.375 in
Delevan ER1537-44KM	22 µH	Through Hole	175 mA	Iron	30 MHz	2.5 MHz	Molded		-55 C	105 ░C	Axial	Unshielded	10 %	0.156 in	9.53 mm	3.96 mm	0.375 in	2.5 MHz 75	2.5 Ohm
Delevan ER1537-48KR	27 µH	Through Hole	0.17 A	Iron	25 MHz	2.5 MHz	Molded	2.6 Ohm	-55 C	105 ░C	Axial	Unshielded	10 %	0.156 in	9.53 mm	3.96 mm	0.375 in	60		2.5 MHz
Delevan ER1537-30KR	5.6 µH	Through Hole	495 mA	Iron	60 MHz	7.9 MHz			-55 C	105 ░C	Axial	Unshielded	10 %	0.156 in	9.53 mm	3.96 mm	0.375 in			7.9 MHz	45
Delevan ER1537-29JR		Through Hole	495 mA	Iron	60 MHz	7.9 MHz	Molded		-55 C	105 ░C	Axial	Unshielded	5 %	0.156 in	9.53 mm	3.96 mm	0.375 in			7.9 MHz	45
Delevan ER1537-28JS	4.7 ÁH	Through Hole	0.26 A	Phenolic	90 MHz	7.9 MHz		2.6 Ohm	-55 C	125 °C	Axial	Unshielded	5 %	0.156 in	9.53 mm	3.96 mm	0.375 in
Delevan ER1537-60JM	47 µH	Through Hole	0.17 A	Iron	13 MHz	2.5 MHz	Molded	2.75 Ohm	-55 C	105 ░C	Axial	Unshielded	5 %	0.156 in	9.53 mm	3.96 mm	0.375 in	2.5 MHz 55
Delevan ER1537-07JR	560 nH	Through Hole	1.15 A	Phenolic	280 MHz	25 MHz	Molded	135 mOhm	-55 C	105 ░C	Axial	Unshielded	5 %	0.156 in	9.53 mm	3.96 mm	0.375 in	25 MHz 50
Delevan ER1537-01KM	180 nH	Through Hole	1.81 A	Phenolic	460 MHz	25 MHz	Molded	55 mOhm	-55 C	125 °C	Axial	Unshielded	10 %	0.156 in	9.53 mm	3.96 mm	0.375 in	25 MHz 50
Delevan ER1537-42JM	18 µH	Through Hole	0.185 A	Iron	34 MHz	2.5 MHz	Molded	2.25 Ohm	-55 C	105 ░C	Axial	Unshielded	5 %	0.156 in	9.53 mm	3.96 mm	0.375 in	2.5 MHz 75
