1019-1511 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

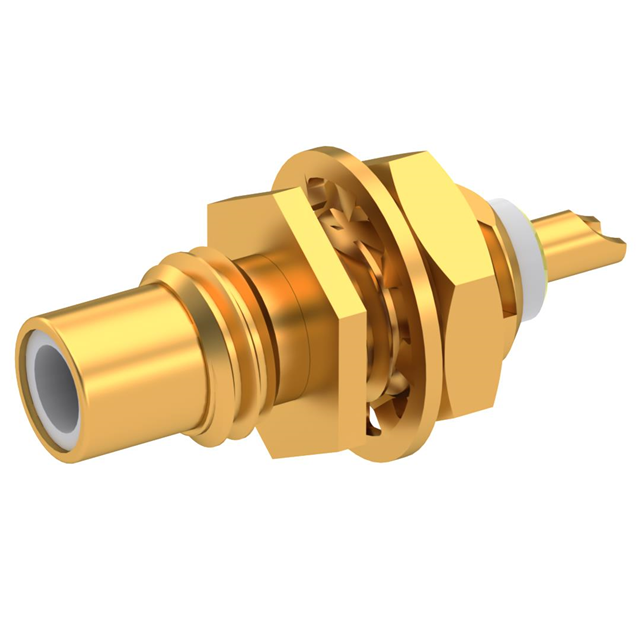

SMC M STR BHD SP
| Part | Insertion Loss | Mating Cycles | Includes | Body Material | Body Finish | Center Contact Plating | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Feature | Shield Termination | Impedance | Number of Ports | Connector Type | Housing Color | Contact Termination | Fastening Type | Connector Style | Frequency - Max [Max] | Center Contact Material | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 0.25 dB | 500 | 1 Connector 1 Lockwasher 1 Nut | Brass | Gold | Gold | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Bulkhead - Rear Side Nut | Solder | 50 Ohms | 1 | Jack Male Pin | Gold | Solder Cup | Threaded | SMC | 10 GHz | Brass | Panel Mount |
