Power Inductors - SMD 680uH 1.39A 1.08ohms
Power Inductors - SMD 680uH 1.39A 1.08ohms
| Part | Current Rating - Parallel | Number of Coils | Current Saturation - Series | Operating Temperature [Max] | Operating Temperature [Min] | DC Resistance (DCR) - Series | Inductance - Connected In Series | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Tolerance | Current Rating - Series | Inductance - Connected In Parallel | Current Saturation - Parallel | Shielding | DC Resistance (DCR) - Parallel | Mounting Type | Height | Height | Package / Case | Height [z] | Height [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

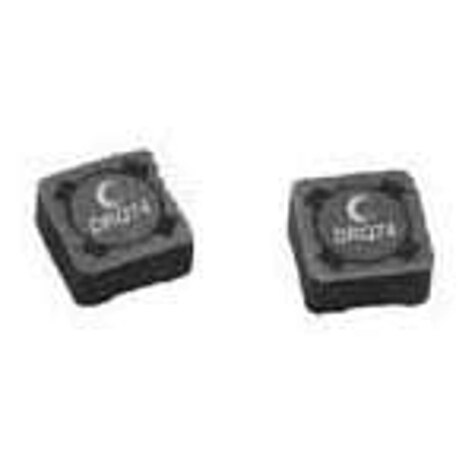

 Eaton - Electronics Division | 690 mA | 2 | 410 mA | 125 °C | -40 C | 2.37 Ohm | 600 µH | 0.299 " | 7.6 mm | 7.6 mm | 0.299 " | 20 % | 346 mA | 150 µH | 810 mA | Shielded | 591 mOhm | Surface Mount | 4.45 mm | 0.175 in | Nonstandard | ||

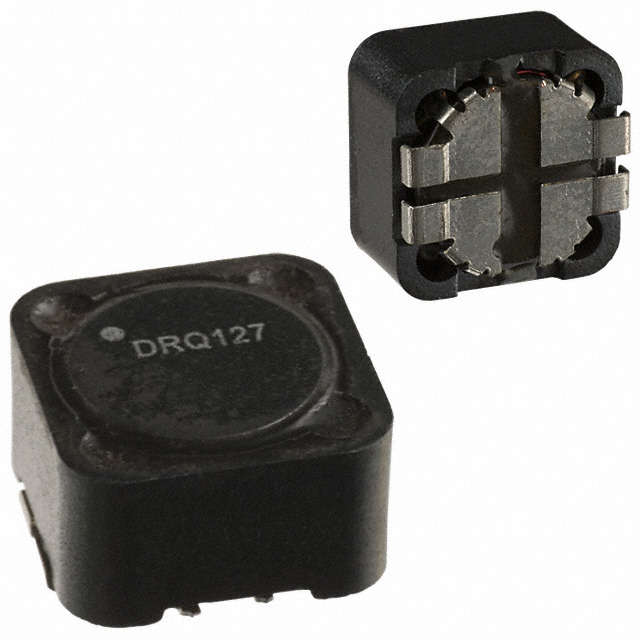

 Eaton - Electronics Division | 10.9 A | 2 | 7.5 A | 125 °C | -40 C | 18.2 mOhm | 8.832 µH | 0.492 " | 12.5 mm | 12.5 mm | 0.492 " | 20 % | 2.208 µH | 15 A | Shielded | 4.5 mOhm | Surface Mount | Nonstandard | 0.236 in | 6 mm | |||
 Eaton - Electronics Division | 760 mA | 2 | 697 mA | 125 °C | -40 C | 4.32 Ohm | 2.707 mH | 0.492 " | 12.5 mm | 12.5 mm | 0.492 " | 20 % | 380 mA | 676.7 µH | 1.39 A | Shielded | 1.08 Ohm | Surface Mount | Nonstandard | 0.315 in | 8 mm | ||
Eaton - Electronics Division | 610 mA | 2 | 571 mA | 125 °C | -40 C | 6.64 Ohm | 4.02 mH | 0.492 " | 12.5 mm | 12.5 mm | 0.492 " | 20 % | 307 mA | 1.005 mH | Shielded | 1.66 Ohm | Surface Mount | Nonstandard | 0.315 in | 8 mm |
