BKZ Series

DC Power Connectors BKZ Locking Series 2.0mm Surface Mount

Manufacturer: SWITCHCRAFT/CONXALL

Catalog

DC Power Connectors BKZ Locking Series 2.0mm Surface Mount

Catalog

DC Power Connectors BKZ Locking Series 2.0mm Surface Mount

Part	Housing Material	Contact Material - Plating	Body Material	Body Color	Contact Material	Industry Recognized Mating Diameter [diameter]	Voltage - Rated	Shielding	Termination	Current Rating (Amps)	Gender	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Internal Switch(s)	Insulation Color	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Actual Diameter [diameter]	Actual Diameter [diameter]	Connector Type	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Includes	Internal Switch(s)	Actual Diameter [custom]	Actual Diameter [custom]	Mating Length/Depth	Mating Length/Depth
SWITCHCRAFT/CONXALL RASH722BKZ	Thermoplastic	Silver	Copper Alloy	Black	Copper Alloy	2 mm 5.5 mm	24 VDC	Unshielded	Solder	5 A	Male	2	3	Single Switch Normally Closed	Black	Surface Mount Right Angle Through Hole	-30 ░C	65 °C	2 mm 6.3 mm	0.079 in 0.248 in	Jack
SWITCHCRAFT/CONXALL RAPC712BKZ	Thermoplastic	Silver	Copper Alloy	Black	Copper Alloy		24 VDC	Unshielded	Solder Eyelet(s)	5 A	Male	2	3	Single Switch Normally Closed	Black	Right Angle Through Hole	-30 ░C	65 °C			Jack	0.217 in	2.5 mm	5.5 mm	0.098 in	0.248 in	0.098 in	2.5 mm	6.3 mm
SWITCHCRAFT/CONXALL RASM722BKZ	Thermoplastic	Silver	Copper Alloy	Black	Copper Alloy	2 mm 5.5 mm	24 VDC	Unshielded	Solder	5 A	Male	2	3	Single Switch Normally Closed	Black	Right Angle Surface Mount	-30 ░C	65 °C	2 mm 6.3 mm	0.079 in 0.248 in	Jack
SWITCHCRAFT/CONXALL RASM712BKZ	Thermoplastic	Silver	Copper Alloy	Black	Copper Alloy		24 VDC	Unshielded	Solder	5 A	Male	2	3	Single Switch Normally Closed	Black	Right Angle Surface Mount	-30 ░C	65 °C			Jack	0.217 in	2.5 mm	5.5 mm	0.098 in	0.248 in	0.098 in	2.5 mm	6.3 mm
SWITCHCRAFT/CONXALL RAPC722BKZ	Thermoplastic	Silver	Copper Alloy	Black	Copper Alloy	2 mm 5.5 mm	24 VDC	Unshielded	Solder Eyelet(s)	5 A	Male	2	3	Single Switch Normally Closed	Black	Right Angle Through Hole	-30 ░C	65 °C	2 mm 6.3 mm	0.079 in 0.248 in	Jack

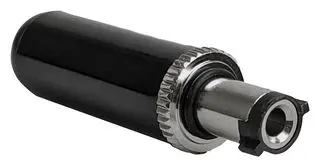

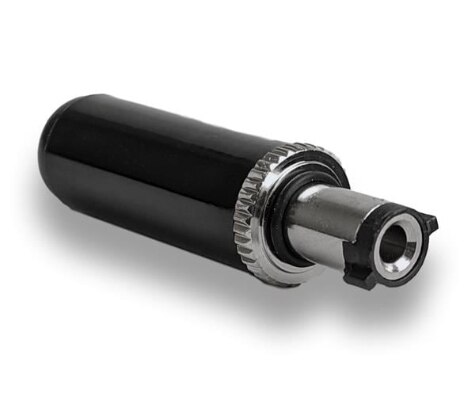

SWITCHCRAFT/CONXALL S760BKZ	Thermoplastic	Tin	Brass	Black Silver	Brass	2 mm 5.5 mm		Unshielded	Solder Eyelet(s)	2 A	Female	2	2		Black	Free Hanging (In-Line)					Plug							2 mm	5.5 mm	1 Connector 1 Handle 1 Insulator Tube		0.079 in	0.217 in	0.374 in	9.5 mm

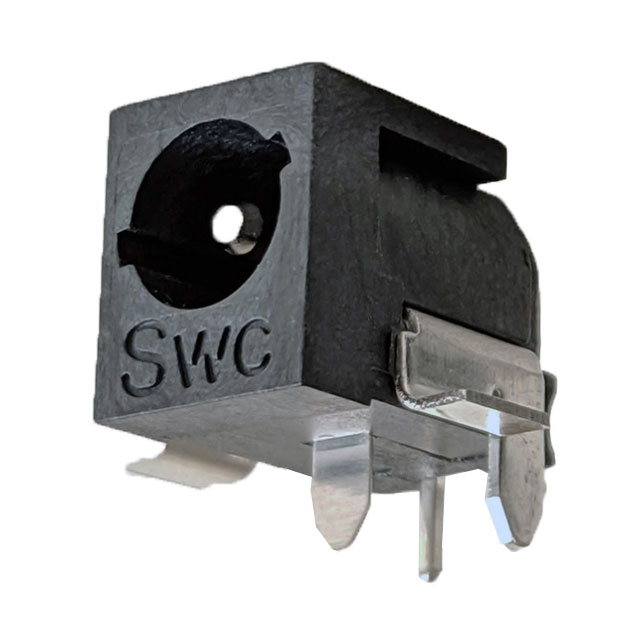

SWITCHCRAFT/CONXALL RASH712BKZ	Thermoplastic	Silver	Copper Alloy	Black	Copper Alloy		24 VDC	Unshielded	Solder	5 A	Male	2	3	Single Switch Normally Closed	Black	Surface Mount Right Angle Through Hole	-30 ░C	65 °C			Jack	0.217 in	2.5 mm	5.5 mm	0.098 in	0.248 in	0.098 in	2.5 mm	6.3 mm
SWITCHCRAFT/CONXALL 760BKZ	Thermoplastic	Tin	Brass	Black Silver	Brass			Unshielded	Solder Eyelet(s)	5 A	Female	2	2		Black	Free Hanging (In-Line)			2.5 mm 5.5 mm	0.098 in 0.217 in	Plug	0.217 in	2.5 mm	5.5 mm	0.098 in					1 Connector 1 Handle 1 Insulator Tube				0.374 in	9.5 mm
