SS-7188S Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K

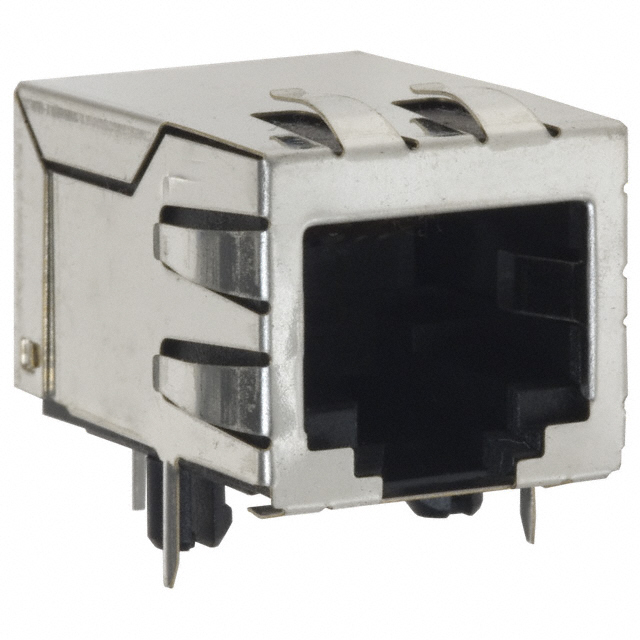

CONN MOD JACK 8P8C R/A SHIELDED
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness | Housing Material | Features | Number of Positions/Contacts | Ratings | Termination | Connector Type | LED Color | Contact Material | Tab Direction | Contact Finish | Orientation | Number of Rows | Mounting Type | Number of Ports | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | 85 °C | -40 C | 50 µin | 1.27 µm | Thermoplastic | Board Lock | 8p8c (RJ45 Ethernet) | Cat5e | Solder | Jack | Does Not Contain LED | Copper Alloy | Down | Gold | 90 ° | 1 | Through Hole | 1 | EMI Finger Shielded |
 Bel Fuse Inc. | 85 °C | -40 C | 50 µin | 1.27 µm | Thermoplastic | Board Lock | 8p8c (RJ45 Ethernet) | Cat5e | Solder | Jack | Does Not Contain LED | Copper Alloy | Down | Gold | 90 ° | 1 | Through Hole | 1 | EMI Finger Shielded |
 Bel Fuse Inc. | 85 °C | -40 C | 50 µin | 1.27 µm | Thermoplastic | Board Lock | 8p8c (RJ45 Ethernet) | Cat5e | Solder | Jack | Does Not Contain LED | Copper Alloy | Down | Gold | 90 ° | 1 | Through Hole | 1 | Shielded |
 Bel Fuse Inc. | 85 °C | -40 C | 30 Áin | 0.76 Ám | Thermoplastic | Board Lock Keyed | 8p8c (RJ45 Ethernet) | Cat5e | Solder | Jack | Does Not Contain LED | Copper Alloy | Down | Gold | 90 ° | 1 | Through Hole | 1 | Shielded |
 Bel Fuse Inc. | 85 °C | -40 C | 30 Áin | 0.76 Ám | Thermoplastic | Board Lock | 8p8c (RJ45 Ethernet) | Cat5e | Solder | Jack | Does Not Contain LED | Copper Alloy | Down | Gold | 90 ° | 1 | Through Hole | 1 | EMI Finger Shielded |
 Bel Fuse Inc. | 85 °C | -40 C | 30 Áin | 0.76 Ám | Thermoplastic | Board Lock | 8p8c (RJ45 Ethernet) | Cat5e | Solder | Jack | Does Not Contain LED | Copper Alloy | Down | Gold | 90 ° | 1 | Through Hole | 1 | Shielded |
 Bel Fuse Inc. | 85 °C | -40 C | 30 Áin | 0.76 Ám | Thermoplastic | Board Lock Panel Stops | 8p8c (RJ45 Ethernet) | Cat5e | Solder | Jack | Does Not Contain LED | Copper Alloy | Down | Gold | 90 ° | 1 | Through Hole | 1 | EMI Finger Shielded |
