MGFW Series

Isolated DC/DC Converters - Through Hole 81.6W 18-76Vin 3.4A +/-12V PCB Mnt

Manufacturer: Cosel USA, Inc.

Catalog

Isolated DC/DC Converters - Through Hole 81.6W 18-76Vin 3.4A +/-12V PCB Mnt

Catalog

Isolated DC/DC Converters - Through Hole 81.6W 18-76Vin 3.4A +/-12V PCB Mnt

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1 [custom]	Type	Voltage - Input (Max) [Max]	Mounting Type	Applications	Number of Outputs	Current - Output (Max) [Min]	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Approval Agency	Voltage - Input (Min) [Min]	Voltage - Output 2	Features	Power (Watts)	Voltage - Isolation	Efficiency	Package / Case	Voltage - Output 1	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)

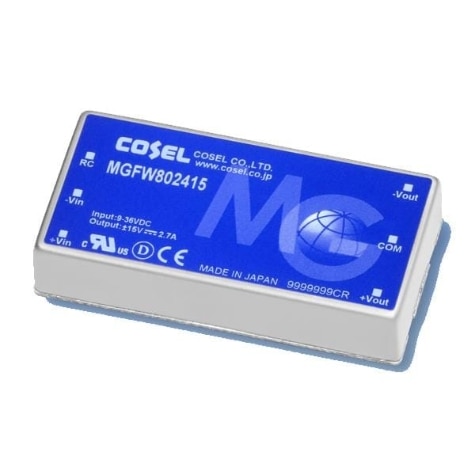

Cosel USA, Inc. MGFW802415	-40 °C	85 °C	15 V 30 V	Isolated Module	36 V	Through Hole	ITE (Commercial)	2	2.7 A	2.7 A	0.39 "	50.8 mm	25.4 mm	2 in	1 "	9.9 mm	CE cURus DEMKO	9 V	-15 V	Bridgeable	81 W	1.5 kV	94 %	6-DIP Module
Cosel USA, Inc. MGFW802412	-40 °C	85 °C		Isolated Module	36 V	Through Hole	ITE (Commercial)	2			0.39 "	50.8 mm	25.4 mm	2 in	1 "	9.9 mm	CE cURus DEMKO	9 V	-12 V	Bridgeable	82 W	1.5 kV	94 %	6-DIP Module	12V 24V	3.4 A	3.4 A
Cosel USA, Inc. MGFW804812	-40 °C	85 °C		Isolated Module	76 V	Through Hole	ITE (Commercial)	2			0.39 "	50.8 mm	25.4 mm	2 in	1 "	9.9 mm	CE cURus DEMKO	18 V	-12 V	Bridgeable	82 W	1.5 kV	94 %	6-DIP Module	12V 24V	3.4 A	3.4 A
Cosel USA, Inc. MGFW404812	-40 °C	85 °C		Isolated Module	76 V	Through Hole	ITE (Commercial)	2		1.7 A	0.39 "	25.4 mm	25.4 mm	1 in	1 "	9.9 mm	CE cURus DEMKO	18 V	-12 V	Bridgeable	41 W	1.5 kV	91 %	6-DIP Module	12V 24V
Cosel USA, Inc. MGFW402412	-40 °C	85 °C		Isolated Module	36 V	Through Hole	ITE (Commercial)	2		1.7 A	0.39 "	25.4 mm	25.4 mm	1 in	1 "	9.9 mm	CE cURus DEMKO	9 V	-12 V	Bridgeable	41 W	1.5 kV	91 %	6-DIP Module	12V 24V
Cosel USA, Inc. MGFW400515	-40 °C	85 °C	15 V 30 V	Isolated Module	13 V	Through Hole	ITE (Commercial)	2			0.39 "	25.4 mm	25.4 mm	1 in	1 "	9.9 mm	CE cURus DEMKO	4.5 V	-15 V	Bridgeable	30 Watts	1.5 kV	87 %	6-DIP Module				1 A
Cosel USA, Inc. MGFW804815	-40 °C	85 °C	15 V 30 V	Isolated Module	76 V	Through Hole	ITE (Commercial)	2	2.7 A	2.7 A	0.39 "	50.8 mm	25.4 mm	2 in	1 "	9.9 mm	CE cURus DEMKO	18 V	-15 V	Bridgeable	81 W	1.5 kV	94 %	6-DIP Module
Cosel USA, Inc. MGFW402415	-40 °C	85 °C	15 V 30 V	Isolated Module	36 V	Through Hole	ITE (Commercial)	2			0.39 "	25.4 mm	25.4 mm	1 in	1 "	9.9 mm	CE cURus DEMKO	9 V	-15 V	Bridgeable	42 W	1.5 kV	91 %	6-DIP Module				1.4 A
Cosel USA, Inc. MGFW400512	-40 °C	85 °C		Isolated Module	13 V	Through Hole	ITE (Commercial)	2			0.39 "	25.4 mm	25.4 mm	1 in	1 "	9.9 mm	CE cURus DEMKO	4.5 V	-12 V	Bridgeable	31 W	1.5 kV	86 %	6-DIP Module	12V 24V			1.3 A
