HCTR Series
Manufacturer: Delevan
Beta
⌘K

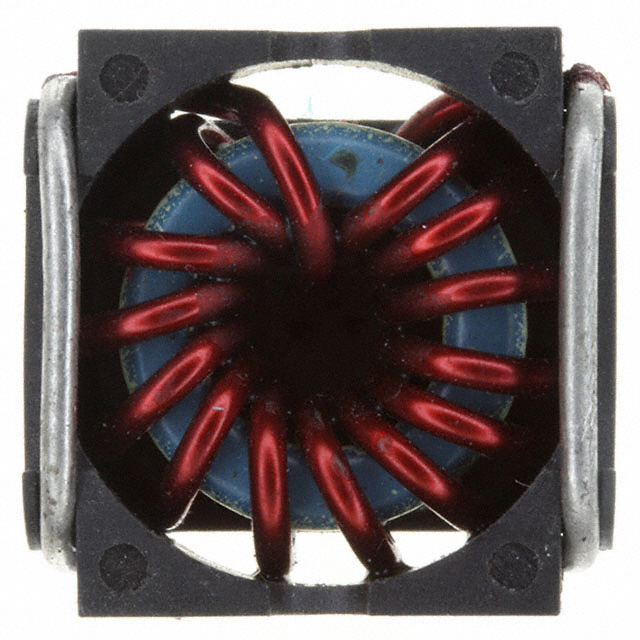

POWER INDUCTORS - SMD 6.5UH 25% .0066OHM HI CURR TOROIDAL SMT
| Part | Package / Case | Shielding | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Frequency - Self Resonant | Current Rating (Amps) | Inductance Frequency - Test | Tolerance | Q @ Freq | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Mounting Type | DC Resistance (DCR) | Inductance | Operating Temperature [Max] | Operating Temperature [Min] | Type | Material - Core | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delevan | Nonstandard | Shielded | 0.4 in | 10.16 mm | 55 MHz | 12 Amps | 100 kHz | 25 % | 25 100 kHz | 18.8 mm | 18.8 mm | 0.74 " | 0.74 " | Surface Mount | 6.6 mOhm | 6.5 µH | 130 °C | -30 ░C | Toroidal | Iron Powder | |
 Delevan | Nonstandard | Shielded | 0.4 in | 10.16 mm | 45 MHz | 10.8 A | 100 kHz | 25 % | 23 100 kHz | 18.8 mm | 18.8 mm | 0.74 " | 0.74 " | Surface Mount | 8.4 µH | 130 °C | -30 ░C | Toroidal | Iron Powder | 8.3 mOhm |
