WLC06 Series

Catalog

WIND-LOK WALL STRAIGHT PLUG, FIN

Part	Connector Type	Termination	Orientation	Contact Finish - Mating	Color	Operating Temperature (Max)	Operating Temperature (Min)	Cable Opening (Max)	Cable Opening (Min)	Shielding	Fastening Type	Features	Mounting Type	Primary Material	Number of Positions	Position Types	Shell Finish	Ingress Protection	Voltage Rating	Shell Size - Insert	Shell Size - Insert

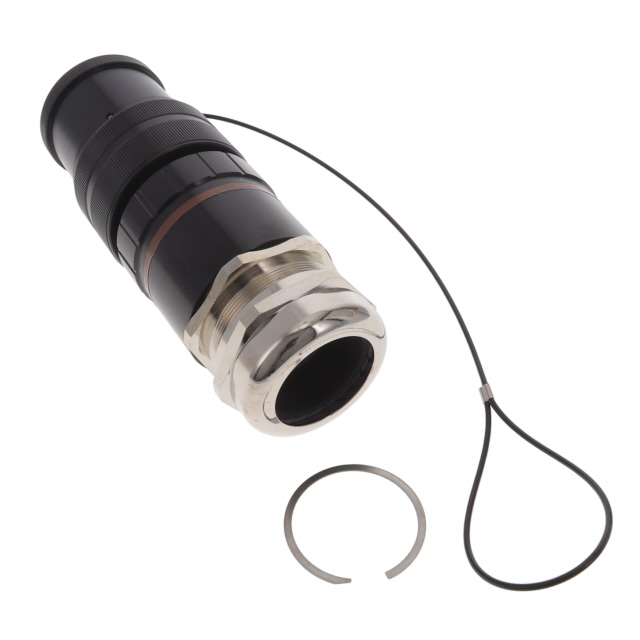

Amphenol Aerospace Operations WLC06EBN40SW8MM63M	Female Sockets Plug	Crimp	W	Silver	Brown	125 °C	-40 °C	1.496 in	1.26 in	Shielded	Reverse Bayonet Lock	Backshell Dust Cap	Free Hanging (In-Line)	Metal	1	Power	Black Anodized	Environment Resistant	1000 V	40	40

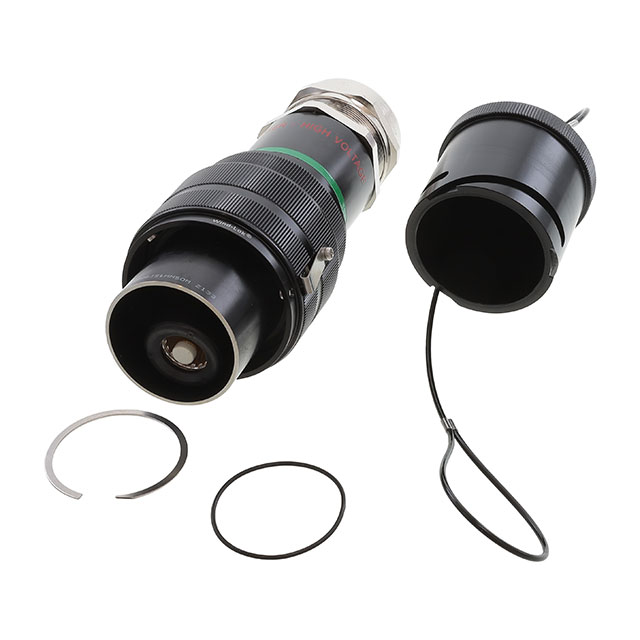

Amphenol Aerospace Operations WLC06EGN40SJ5BMM50M	Female Sockets Plug	Crimp	J	Silver	Green	125 °C	-40 °C	1.496 in	1.26 in	Shielded	Reverse Bayonet Lock	Backshell Dust Cap	Free Hanging (In-Line)	Metal	1	Power	Black Anodized	Environment Resistant	1000 V	40	40

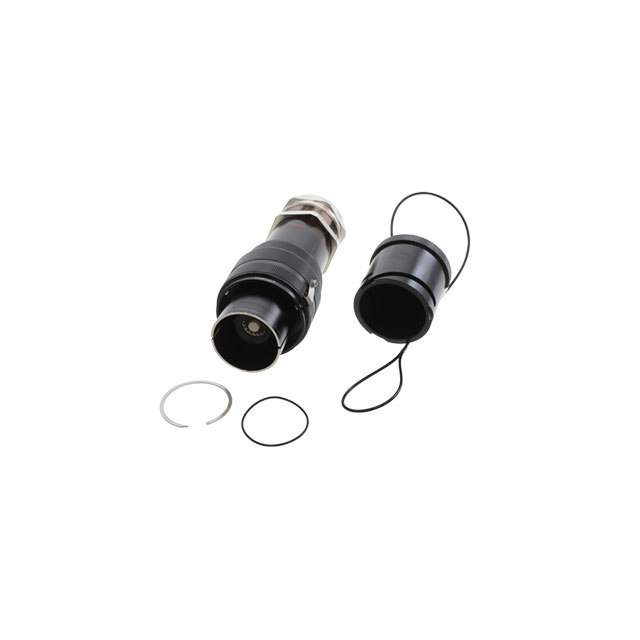

Amphenol Aerospace Operations WLC06ENC40SN7AMM50M	Female Sockets Plug	Crimp	N (Normal)	Silver		125 °C	-40 °C	1.496 in	1.26 in	Shielded	Reverse Bayonet Lock	Backshell Dust Cap	Free Hanging (In-Line)	Metal	1	Power	Black Anodized	Environment Resistant	1000 V	40	40
