MEAS MS5837 Series

Catalog

BOARD MOUNT PRESSURE SENSORS

Part	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Type	Output	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Accuracy	Accuracy	Maximum Pressure	Maximum Pressure [Max]	Mounting Type	Port Style	Applications	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Max]	Operating Pressure [Min]	Features	Operating Pressure	Operating Pressure	Maximum Pressure
TE Connectivity AMP Connectors DPP103G000
TE Connectivity AMP Connectors DPP103A000
TE Connectivity AMP Connectors MS583702BA01-50	4-SMD Module	3.6 V	1.5 V	I2C	24 b	SMD (SMT) Tab	85 °C	-20 ░C	0.007 PSI	0.05 kPa	1000 kPa	145.04 PSI	Surface Mount	No Port	Board Mount	30 kPa	17.4 PSI	120 kPa	4.35 PSI	Temperature Compensated

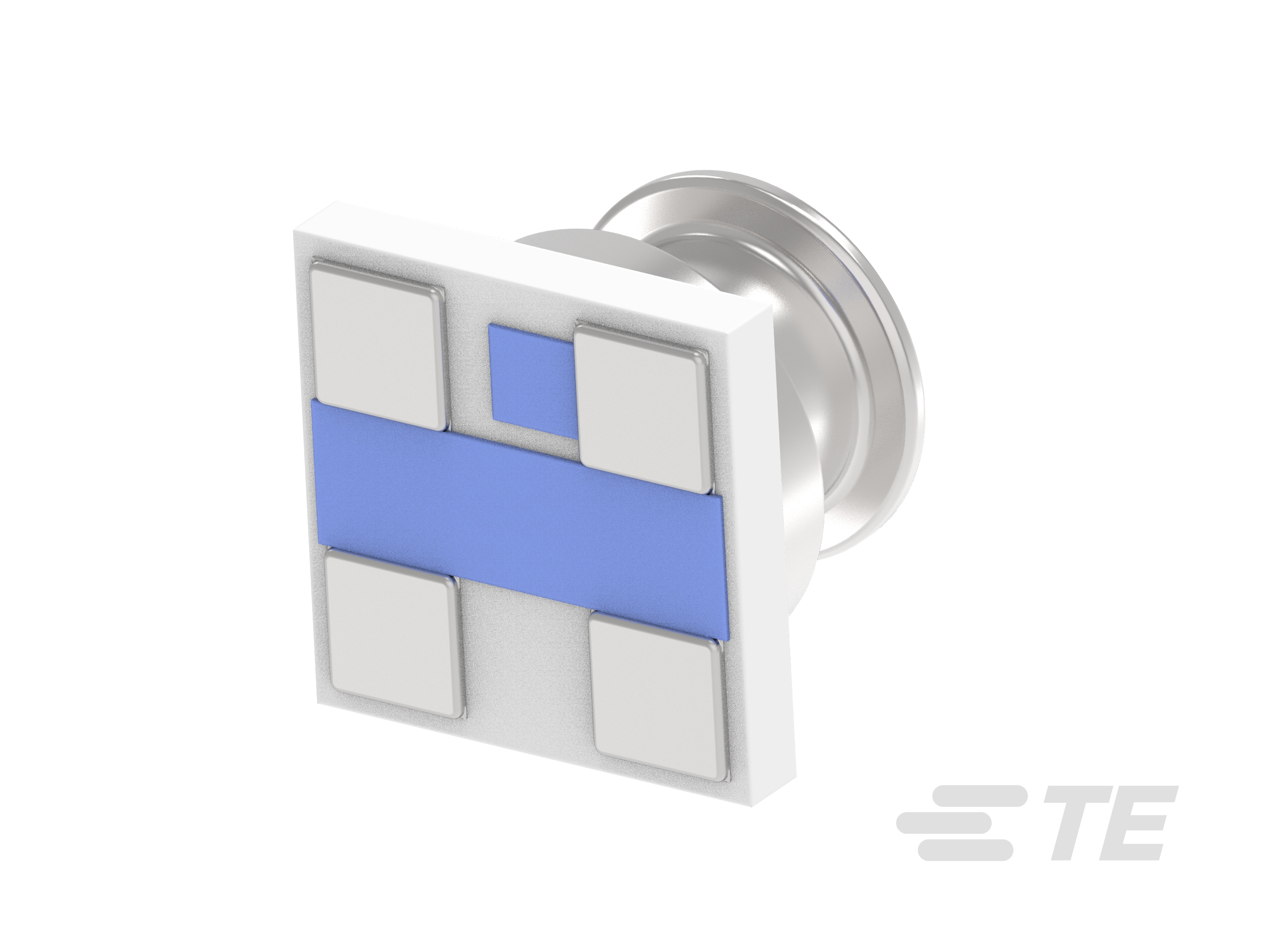

TE Connectivity AMP Connectors MS583730BA01-50	4-SMD Module	3.6 V	1.5 V	I2C	24 b	SMD (SMT) Tab	85 °C	-20 ░C	0.022 PSI	0.15 kPa	5000 kPa		Surface Mount	No Port	Board Mount					Temperature Compensated	3000 kPa	435.1 PSI	725.19 PSI
