Schaffner FN3270 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

LINE FILTER 480VAC 50A CHASS MNT

Part	Current	Frequency - Operating	Filter Type	Approval Agency	Voltage - Rated AC (Phase to Phase)	Voltage - Rated AC	Mounting Type	Applications	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated AC (Phase to Ground/Neutral)	Configuration

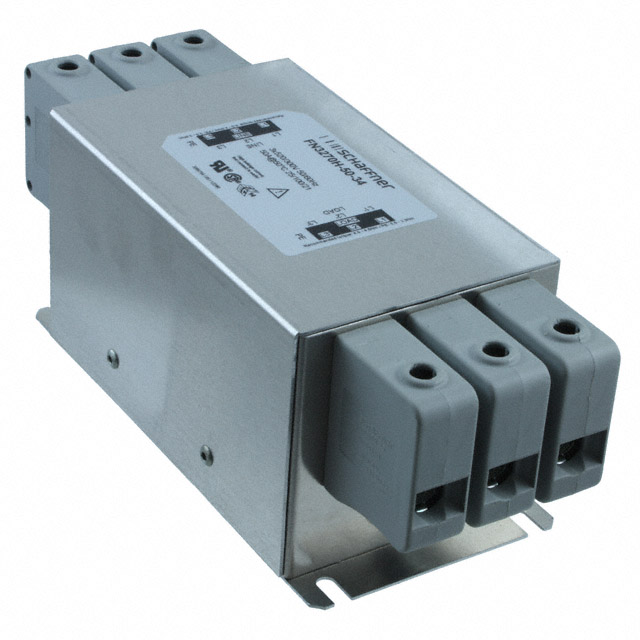

TE Connectivity AMP Connectors FN3270H-50-34	50 A	60 Hz	Three Phase (Delta)	CSA ENEC UR	520 V	480 V	Chassis Mount	Inverters Power Drive Systems	Terminal Block	100 °C	-25 °C	300 V	Single Stage

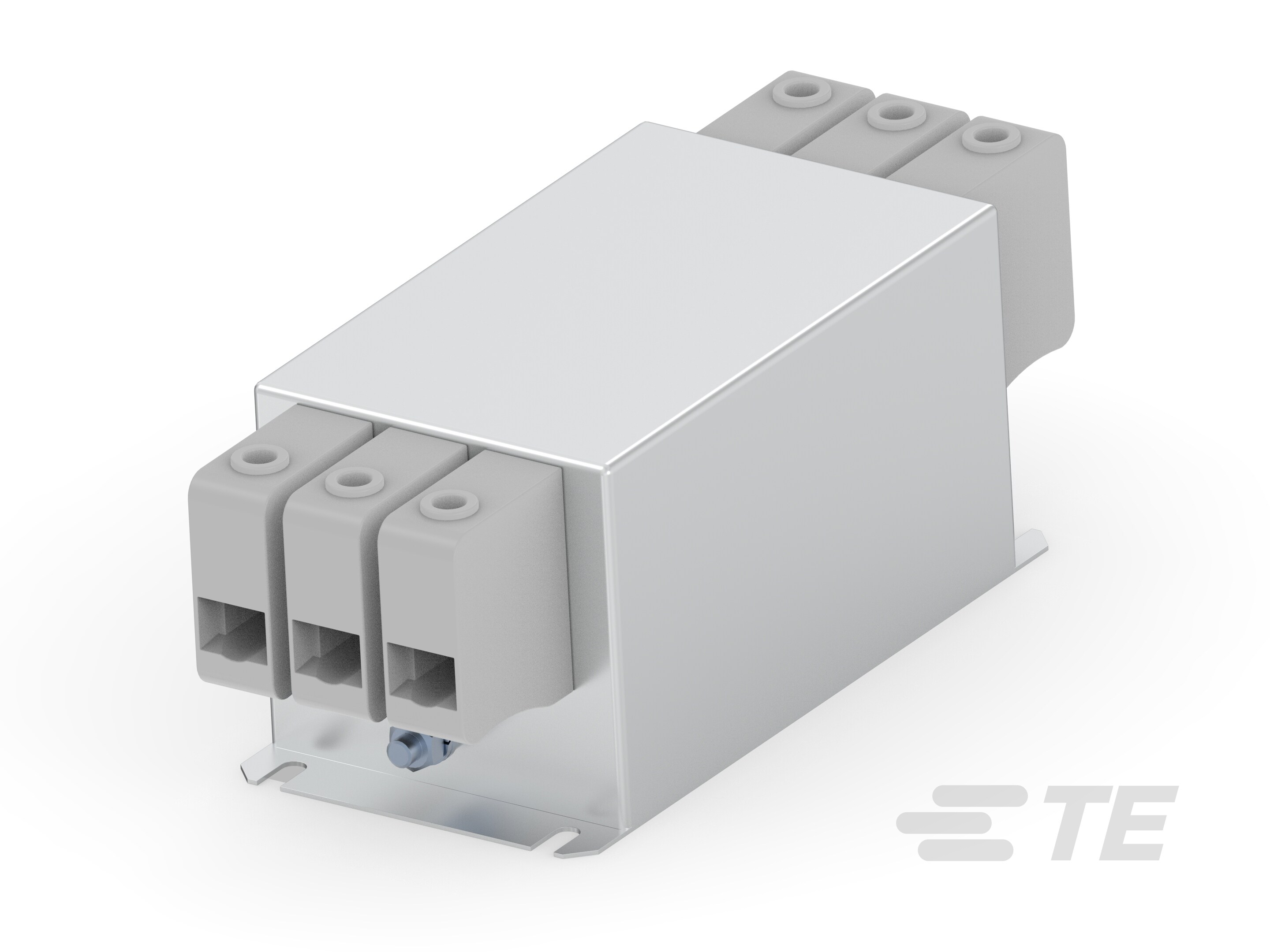

TE Connectivity AMP Connectors FN3270H-65-34	65 A	60 Hz	Three Phase (Delta)	CSA ENEC UR	520 V	480 V	Chassis Mount	Inverters Power Drive Systems	Terminal Block	100 °C	-25 °C	300 V	Single Stage
TE Connectivity AMP Connectors FN3270H-100-35	100 A	60 Hz	Three Phase (Delta)	CSA ENEC UR	520 V		Chassis Mount	Inverters Power Drive Systems	Terminal Block	100 °C	-25 °C	300 V	Three Stage
TE Connectivity AMP Connectors FN3270H-10-44	10 A	60 Hz	Three Phase (Delta)	CSA ENEC UR	520 V	480 V	Chassis Mount	Inverters Power Drive Systems	Terminal Block	100 °C	-25 °C	300 V	Single Stage
TE Connectivity AMP Connectors FN3270HQ1-100-35	100 A	60 Hz	Three Phase (Delta)	CE ENEC UKCA UR	520 V		Chassis Mount	Inverters Power Drive Systems	Terminal Post	100 °C	-25 °C	300 V	Single Stage
TE Connectivity AMP Connectors FN3270HQ1-320-99	320 A	60 Hz	Three Phase (Delta)	CE ENEC UKCA UR	520 V		Chassis Mount	Inverters Power Drive Systems	Terminal Post	100 °C	-25 °C	300 V	Single Stage
TE Connectivity AMP Connectors FN3270H-200-99	200 A	60 Hz	Three Phase (Delta)	CSA ENEC UR	520 V		Chassis Mount	Inverters Power Drive Systems	Terminal Post	100 °C	-25 °C	300 V	Three Stage
TE Connectivity AMP Connectors FN3270H-65-34	65 A	60 Hz	Three Phase (Delta)	CSA ENEC UR	520 V	480 V	Chassis Mount	Inverters Power Drive Systems	Terminal Block	100 °C	-25 °C	300 V	Single Stage
TE Connectivity AMP Connectors FN3270H-80-35	80 A	60 Hz	Three Phase (Delta)	CSA ENEC UR	520 V	480 V	Chassis Mount	Inverters Power Drive Systems	Terminal Block	100 °C	-25 °C	300 V	Single Stage
TE Connectivity AMP Connectors FN3270H-800-99	800 A	60 Hz	Three Phase (Delta)	CE ENEC UKCA UR	520 V		Chassis Mount	Inverters Power Drive Systems	Terminal Post	100 °C	-25 °C	300 V	Single Stage
