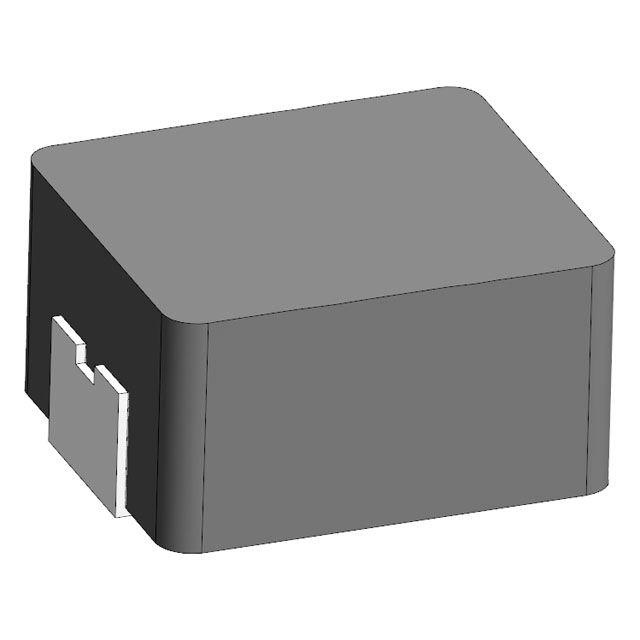

AMDLA4020S Series
Manufacturer: Abracon LLC
Beta
⌘K
POWER INDUCTORS - SMD IND 3.30 UH 3.500 A 54.00 MOHM
| Part | Mounting Type | Type | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | DC Resistance (DCR) [Max] | Inductance | Current - Saturation (Isat) | Shielding | Current Rating (Amps) | Package / Case | Inductance Frequency - Test | Operating Temperature [Min] | Operating Temperature [Max] | Tolerance | Material - Core | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Abracon LLC | Surface Mount | Molded | 0.079 in | 2 mm | 54 mOhm | 3.3 µH | 5 A | Shielded | 3.5 A | Nonstandard | 1 MHz | -55 C | 125 °C | 20 % | Metal | 0.173 in | 0.157 " | 4 mm | 4.4 mm |
