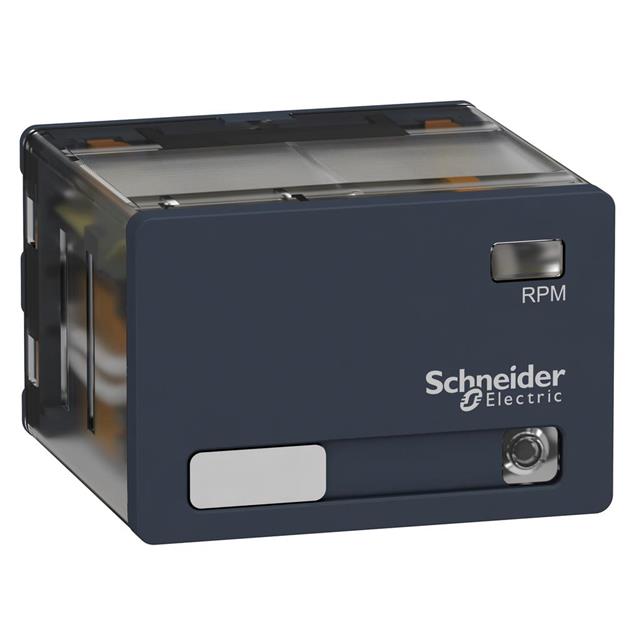

RPM43 Series
Manufacturer: SCHNEIDER ELECTRIC
Beta
⌘K
HARMONY, POWER PLUG-IN RELAY, 15
| Part | Coil Resistance | Switching Voltage [Max] | Coil Current | Operating Temperature [Max] | Operating Temperature [Min] | Operate Time | Mounting Type | Termination Style | Release Time | Features | Must Release Voltage | Coil Voltage | Approval Agency | Contact Material | Contact Rating (Current) | Contact Form | Relay Type | Load - Max Switching | Coil Type | Must Operate Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHNEIDER ELECTRIC | 303 Ohms | 28 VDC 250 VAC | 79.2 mA | 55 °C | -40 C | 20 ms | Socketable | Plug In | 20 ms | Lighted Indicator | 2.4 VDC | 24 VDC | CSA EAC UL | Silver Nickel (AgNi) | 15 A | 4PDT (4 Form C) | General Purpose | 420 W 3750 VA | Non Latching | 19.2 VDC |
 SCHNEIDER ELECTRIC | 2.1 kOhms | 28 VDC 250 VAC | 57.1 mA | 55 °C | -40 C | 20 ms | Socketable | Plug In | 20 ms | Lighted Indicator | 18 VAC | 120 VAC | CSA EAC UL | Silver Nickel (AgNi) | 15 A | 4PDT (4 Form C) | General Purpose | 420 W 3750 VA | Non Latching | 96 VAC |
SCHNEIDER ELECTRIC | 7.35 kOhms | 28 VDC 250 VAC | 31.3 mA | 55 °C | -40 C | 20 ms | Socketable | Plug In | 20 ms | Lighted Indicator | 34.5 VAC | 230 VAC | CSA EAC UL | Silver Nickel (AgNi) | 15 A | 4PDT (4 Form C) | General Purpose | 420 W 3750 VA | Non Latching | 184 VAC |
