C4BTJB Series
Manufacturer: KEMET
Beta
⌘K

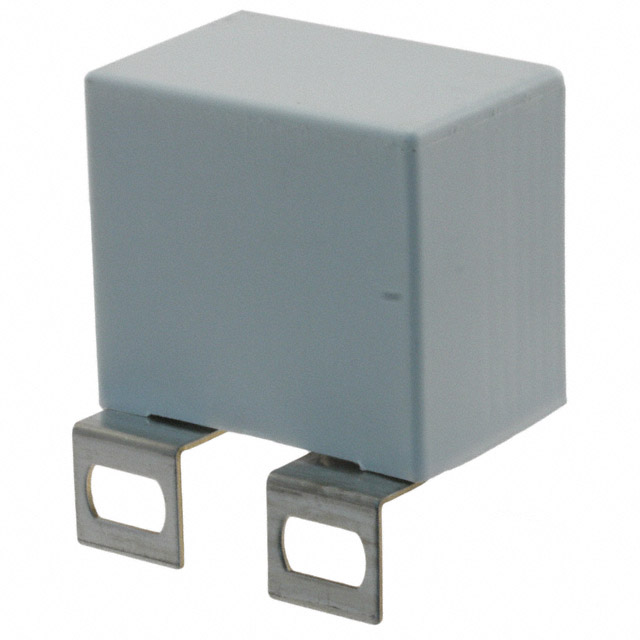

CAP FILM 5UF 5% 700VDC SCREW
| Part | Capacitance | ESR (Equivalent Series Resistance) | Height - Seated (Max) | Height - Seated (Max) [Max] [z] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Dielectric Material | Tolerance | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Applications | Termination | Lead Spacing | Lead Spacing | Voltage Rating - DC | Voltage Rating - AC | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 5 µF | 2.6 mOhm | 37 mm | 1.457 in | 85 °C | -40 C | Chassis Mount | Polypropylene (PP) Metallized | 5 % | 28 mm | 1.654 in | 42 mm | 1.102 " | DC Filtering DC Link High Frequency Switching | Screw Terminals | 25.5 mm | 1.004 in | 700 VDC | 400 V | Rectangular Box |
