ALCOSWITCH Blue Series Series

Catalog

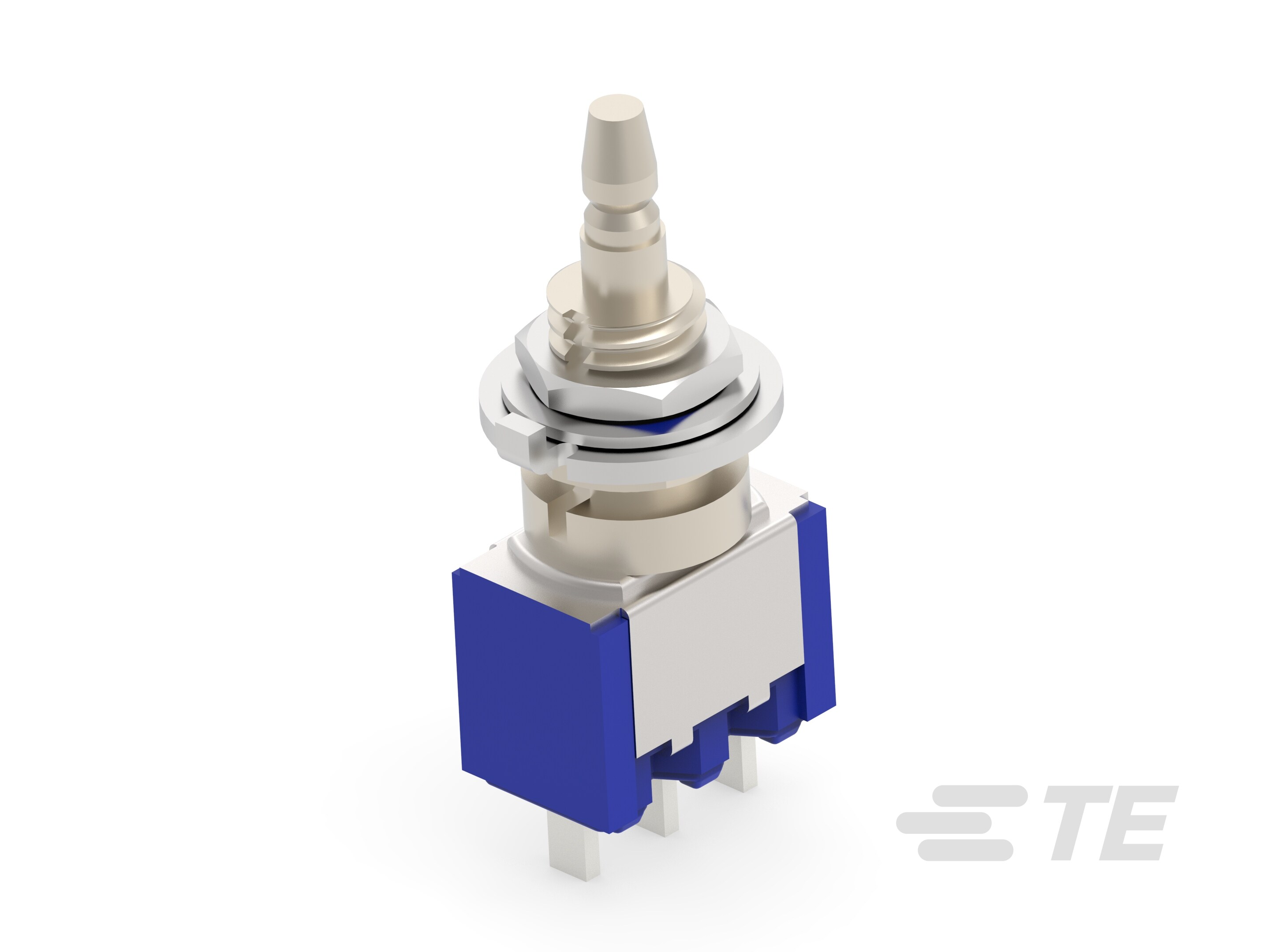

SWITCH PUSHBUTTON DPDT 3A 125V

Part	Electrical Life	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Features	Type	Circuit	Current Rating (Amps)	Actuator Type	Switch Function	Mounting Type	Termination Style	Voltage Rating - AC	Voltage Rating - DC
TE Connectivity AMP Connectors MPS-203R	25000 Steps	No Marking	80 °C	-20 ░C	Tactile/Audible Feedback	Standard	DPDT	3 A	Plunger for Cap	On-Mom	Panel Mount Rear	Solder Lug	125 V
TE Connectivity AMP Connectors 1977740-4		No Marking	80 °C	-20 ░C	Tactile/Audible Feedback	Standard	DPDT	3 A	Plunger for Cap	On-Mom	Panel Mount Rear	PC Pin	125 V
TE Connectivity AMP Connectors MPS-103F		No Marking	80 °C	-20 ░C	Tactile/Audible Feedback	Standard	SPDT	3 A	Plunger for Cap	On-Mom	Panel Mount Rear	Solder Lug	125 V
TE Connectivity AMP Connectors 1977739-1		No Marking	80 °C	-20 ░C	Tactile/Audible Feedback	Standard	SPDT	3 A	Plunger for Cap	On-On	Panel Mount Rear	Solder Lug	125 V
TE Connectivity AMP Connectors 1977740-2		No Marking	80 °C	-20 ░C	Tactile/Audible Feedback	Standard	SPDT	3 A	Plunger for Cap	On-Mom	Panel Mount Rear	PC Pin	125 V
TE Connectivity AMP Connectors 1977738-2		No Marking	80 °C	-20 ░C	Tactile/Audible Feedback	Standard	SPDT	60 mA	Plunger for Cap	On-Mom	Panel Mount Rear	PC Pin		30 V
TE Connectivity AMP Connectors 1977737-2		No Marking	80 °C	-20 ░C	Tactile/Audible Feedback	Standard	SPDT	60 mA	Plunger for Cap	On-Mom	Panel Mount Rear	Solder Lug		30 V
