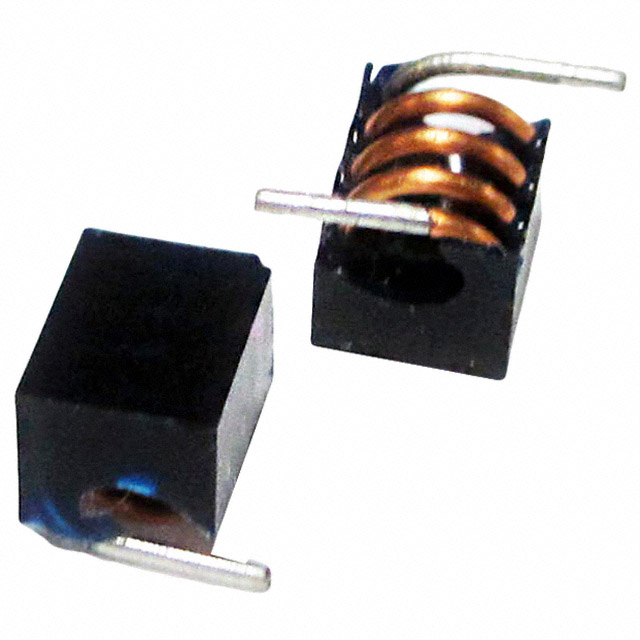

AIAC-2712C Series
Manufacturer: Abracon LLC
Beta
⌘K
RF INDUCTORS - SMD IND 22.00 NH 3.000 A 5.00 MOHM
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Q @ Freq | Tolerance | Shielding | DC Resistance (DCR) [Max] | Material - Core | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Current Rating (Amps) | Inductance Frequency - Test | Inductance | Mounting Type | Frequency - Self Resonant | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Abracon LLC | 2.5 mm | 0.236 in | 6 mm | 0.098 in | 100 150 MHz | 5 % | Unshielded | 5 mOhm | Air | 125 °C | -40 C | Nonstandard | 3 A | 150 MHz | 22 nH | Surface Mount | 2 GHz | Wirewound |
 Abracon LLC | 2.5 mm | 0.236 in | 6 mm | 0.098 in | 100 150 MHz | 5 % | Unshielded | 4.5 mOhm | Air | 125 °C | -40 C | Nonstandard | 3.5 A | 150 MHz | 17.5 nH | Surface Mount | 2.2 GHz | Wirewound |
