3014-1511 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

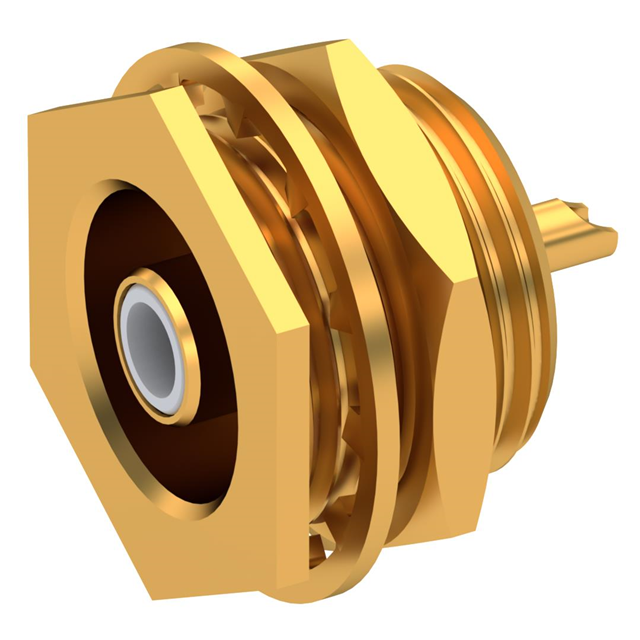

SLB / STRAIGHT JACK RECEPTACLE M
| Part | Body Material | Dielectric Material | Insertion Loss | Mating Cycles | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Housing Color | Frequency - Max [Max] | Center Contact Material | Connector Type | Fastening Type | Connector Style | Shield Termination | Mounting Type | Mounting Feature | Number of Ports | Impedance | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Brass | Polytetrafluoroethylene (PTFE) | 0.3 dB | 500 | Gold | -65 ░C | 165 °C | Gold | Gold | 4 GHz | Brass | Jack Male Pin | Snap-On | SLB | Solder | Panel Mount | Bulkhead - Rear Side Nut | 1 | 50 Ohms | Solder Cup |
