LQ Series

Manufacturer: Panasonic Electronic Components

Catalog

GENERAL PURPOSE RELAYS 12VDC 1 FORM C CLASS F THROUGH HOLE

Part	Operating Temperature [Max]	Operating Temperature [Min]	Coil Current	Coil Insulation	Mounting Type	Seal Rating	Relay Type	Coil Type	Contact Form	Coil Voltage	Must Operate Voltage	Operate Time	Termination Style	Contact Rating (Current)	Must Release Voltage	Contact Material	Load - Max Switching	Release Time	Switching Voltage [Max]	Approval Agency	Coil Resistance
Panasonic Electronic Components ALQ1F12S	85 °C	-40 C	33.3 mA	Class F	Through Hole	Sealed - Fully	General Purpose	Non Latching	SPDT (1 Form C)	12 VDC	9 VDC	20 ms	PC Pin	5 A	0.6 VDC	Silver Nickel (AgNi)	150 W 1250 VA	20 ms	30 VDC 250 VAC	CQC cURuus VDE
Panasonic Electronic Components ALQ118S	85 °C	-40 C	22.2 mA	Class B	Through Hole	Sealed - Fully	General Purpose	Non Latching	SPDT (1 Form C)	18 VDC	13.5 VDC	20 ms	PC Pin	5 A	0.9 VDC	Silver Nickel (AgNi)	150 W 1250 VA	20 ms	30 VDC 250 VAC	CQC cURuus VDE	810 Ohms
Panasonic Electronic Components ALQ305	85 °C	-40 C	40 mA	Class B	Through Hole		General Purpose	Non Latching	SPST-NO (1 Form A)	5 VDC	3.75 VDC	20 ms	PC Pin	5 A	0.25 VDC	Silver Nickel (AgNi)	150 W 1250 VA	20 ms	30 VDC 250 VAC	CQC cURuus VDE	125 Ohms

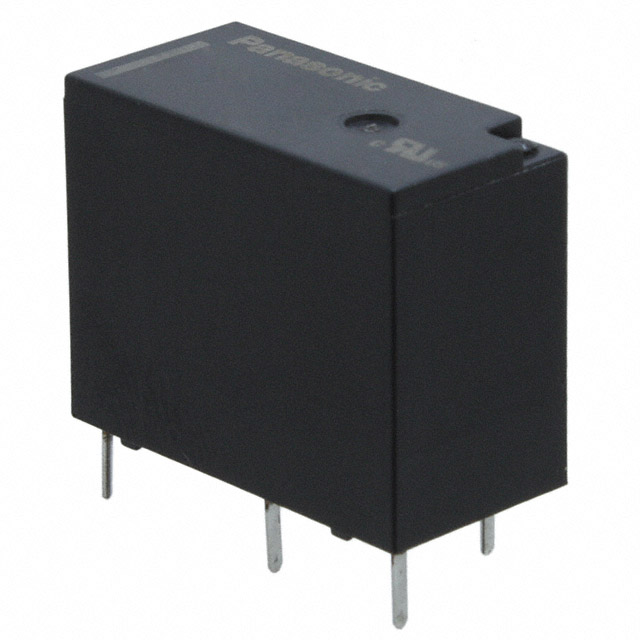

Panasonic Electronic Components ALQ109	85 °C	-40 C	44.4 mA	Class B	Through Hole		General Purpose	Non Latching	SPDT (1 Form C)	9 VDC	6.75 VDC	20 ms	PC Pin	5 A	0.45 VDC	Silver Nickel (AgNi)	150 W 1250 VA	20 ms	30 VDC 250 VAC	CQC cURuus VDE	203 Ohms
Panasonic Electronic Components ALQ1F24S	85 °C	-40 C	16.7 mA	Class F	Through Hole	Sealed - Fully	General Purpose	Non Latching	SPDT (1 Form C)	24 VDC	18 VDC	20 ms	PC Pin	5 A	1.2 VDC	Silver Nickel (AgNi)	150 W 1250 VA	20 ms	30 VDC 250 VAC	CQC cURuus VDE
Panasonic Electronic Components ALQ306S	85 °C	-40 C	33.3 mA	Class B	Through Hole	Sealed - Fully	General Purpose	Non Latching	SPST-NO (1 Form A)		4.5 VDC	20 ms	PC Pin	5 A	0.3 VDC	Silver Nickel (AgNi)	150 W 1250 VA	20 ms	30 VDC 250 VAC	CQC cURuus VDE	180 Ohms
