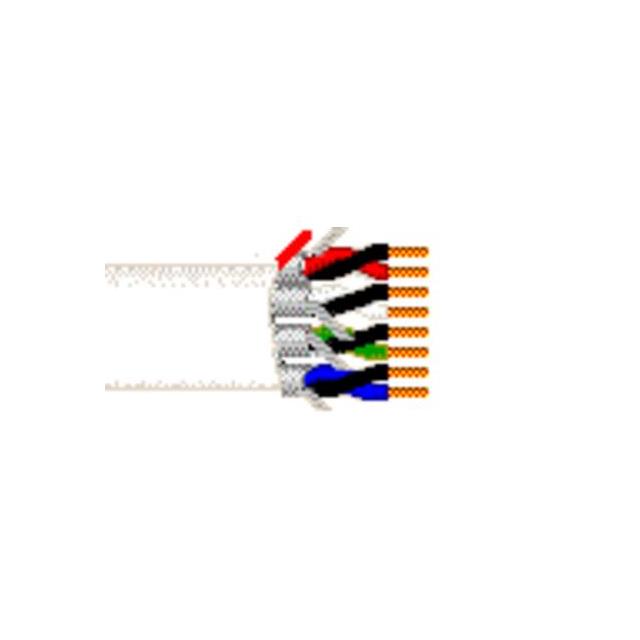

6343PC Series
Manufacturer: Belden Inc.
Beta
⌘K
MULTI-PAIR 8COND 18AWG NAT
| Part | Shield Coverage | Shield Material | Length | Length | Number of Conductors | Operating Temperature [Max] | Operating Temperature [Min] | Features | Wire Gauge | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Voltage | Usage | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Cable Type | Conductor Insulation | Conductor Material | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | 304.8 m | 1000 ft | 8 | 75 ░C | 0 °C | Drain Wire Rip Cord | 18 AWG | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 0.42 mm | 0.0165 in | Natural | 300 VDC | Security Sound | 26 AWG | 7 | UL Style CMP | Multi-Pair | Fluorinated Ethylene-Propylene (FEP) | Copper Bare | Foil |
