OAB220 Series

Catalog

FAN BLOWER, MOTORIZED IMPELLER, 120 VAC, AC, 220 MM, 71 MM, 530 CFM

Part	Material - Frame	Size / Dimension [diameter]	Lifetime @ Temp.	Current Rating (Amps)	Width	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Termination	Ingress Protection	RPM	Size / Dimension	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Width [x]	Static Pressure	Static Pressure	Voltage - Rated	Power (Watts)	Features	Bearing Type	Air Flow	Air Flow	Fan Type

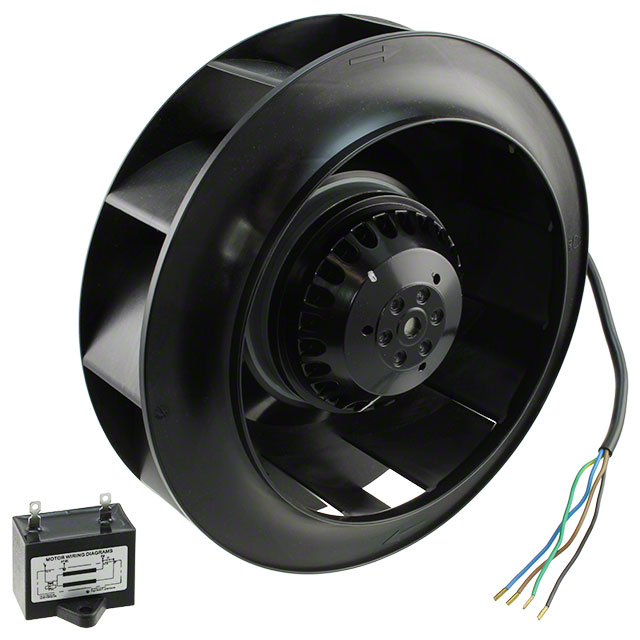

ORION FANS OAB220-11-1	Aluminum	220 mm 223 mm	40000 Hrs	0.98 A	71 mm	100 VAC	125 VAC	Thermoplastic	4 Wire Leads	IP55 - Dust Protected Water Resistant	2650 RPM	Round	60 °C	-40 °C	60 °C	-40 C	cURus TUV	76 mm	1.5 in H2O	373.6 Pa	115 VAC	117 W	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	Ball	530 CFM	14.84 mł/min	Motorized Impellers
ORION FANS OAB220-22-1	Aluminum	220 mm 223 mm	40000 Hrs	0.5 A	71 mm			Thermoplastic	4 Wire Leads	IP55 - Dust Protected Water Resistant	2650 RPM	Round	60 °C	-40 °C	60 °C	-40 C	cURus TUV	76 mm	1.5 in H2O	373.6 Pa	230 VAC	117 W	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	Ball	530 CFM	14.84 mł/min	Motorized Impellers
