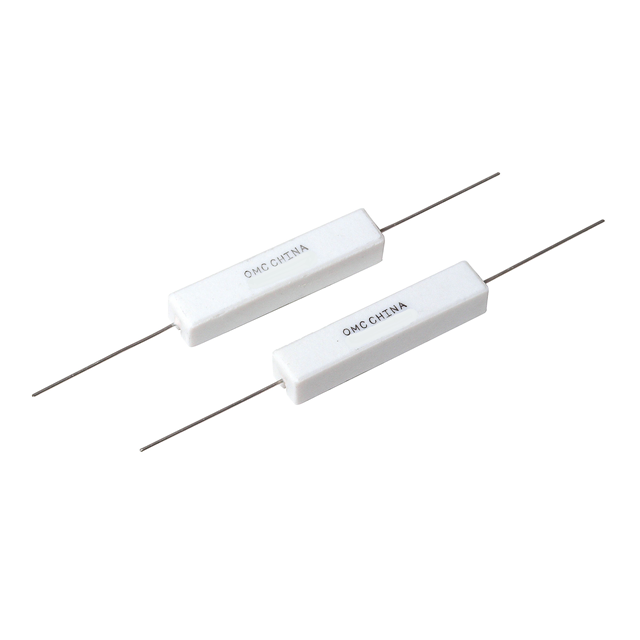

TUM Series
Manufacturer: Ohmite
Beta
⌘K
METAL OXIDE RESISTORS 3WATT 7.5K 5% AXIAL
| Part | Number of Terminations [custom] | Features | Temperature Coefficient | Power (Watts) | Tolerance | Package / Case | Composition | Resistance | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Supplier Device Package | Operating Temperature | Size / Dimension | Size / Dimension | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Ohmite | 2 | Flame Proof Safety | 350 ppm/°C | 3 W | 5 % | Axial | Metal Oxide Film | 7.5 kOhms | 22 mm | 8 mm | 0.315 in | 0.315 in | 0.866 " | 8 mm | Axial | |||||
 Ohmite | 2 | Flame Proof Safety | 350 ppm/°C | 7 W | 5 % | Axial | Metal Oxide Film | 3300 Ohms | 35 mm | 9 mm | 0.354 " | 0.394 in | 1.378 in | 10 mm | Axial | 275 °C | 0.394 " 1.378 in | 10 mm 35 mm | 10 mm | 0.394 in |
 Ohmite | 2 | Flame Proof Safety | 350 ppm/°C | 10 W | 5 % | Axial | Metal Oxide Film | 4.7 kOhms | 49 mm | 9 mm | 0.354 " | 0.394 " | 1.929 " | 10 mm | Axial | |||||
Ohmite | 2 | Flame Proof Safety | 350 ppm/°C | 5 W | 5 % | Axial | Metal Oxide Film | 3 kOhms | 10 mm | 0.394 in | 0.866 " | 22 mm | Axial | 275 °C | 10 mm | 0.394 in |
