090122 Series

Manufacturer: Molex

Catalog

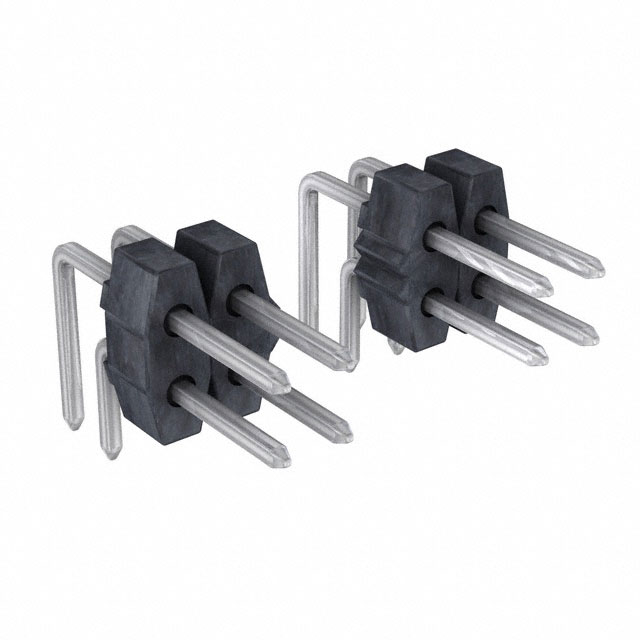

CONN HEADER R/A 32POS 2.54MM

Part	Connector Type	Mounting Type	Contact Length - Post	Contact Length - Post	Fastening Type	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Number of Rows	Material Flammability Rating	Contact Shape	Contact Length - Mating	Contact Length - Mating	Contact Type	Insulation Material	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height [custom]	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Termination	Insulation Color	Style	Applications	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating
Molex 0901220136	Breakaway Header	Through Hole Right Angle	0.114 in	2.9 mm	Push-Pull	Brass	2.54 mm	0.1 in	Tin	2	UL94 V-0	Square	0.266 in	6.75 mm	Male Pin	Polyester Glass Filled	0.1 in	2.54 mm	6.14 mm	0.242 in	Unshrouded	118.1 µin	3 µm	All	Solder	Black	Board to Board Cable	Automotive General Purpose
Molex 0901220152	Breakaway Header	Through Hole Right Angle	0.114 in	2.9 mm	Push-Pull	Brass	2.54 mm	0.1 in	Tin	2	UL94 V-0	Square	0.266 in	6.75 mm	Male Pin	Polyester Glass Filled	0.1 in	2.54 mm	6.14 mm	0.242 in	Unshrouded	118.1 µin	3 µm	All	Solder	Black	Board to Board Cable	Automotive General Purpose	64
Molex 0901220156	Breakaway Header	Through Hole Right Angle	0.114 in	2.9 mm	Push-Pull	Brass	2.54 mm	0.1 in	Tin	2	UL94 V-0	Square	0.266 in	6.75 mm	Male Pin	Polyester Glass Filled	0.1 in	2.54 mm	6.14 mm	0.242 in	Unshrouded	118.1 µin	3 µm	All	Solder	Black	Board to Board Cable	Automotive General Purpose	72
Molex 0901220150	Breakaway Header	Through Hole Right Angle	0.114 in	2.9 mm	Push-Pull	Brass	2.54 mm	0.1 in	Tin	2	UL94 V-0	Square	0.266 in	6.75 mm	Male Pin	Polyester Glass Filled	0.1 in	2.54 mm	6.14 mm	0.242 in	Unshrouded	118.1 µin	3 µm	All	Solder	Black	Board to Board Cable	Automotive General Purpose	60
Molex 0901220129	Breakaway Header	Through Hole Right Angle	0.114 in	2.9 mm	Push-Pull	Brass	2.54 mm	0.1 in	Tin	2	UL94 V-0	Square	0.266 in	6.75 mm	Male Pin	Polyester Glass Filled	0.1 in	2.54 mm	6.14 mm	0.242 in	Unshrouded	4 µm 118.1 µin	3 µm	All	Solder	Black	Board to Board Cable	Automotive General Purpose	18	157.5 µin
Molex 090122-0790	Breakaway Header	Through Hole Right Angle	0.114 in	2.9 mm	Push-Pull	Brass	2.54 mm	0.1 in	Tin	2	UL94 V-0	Square	0.266 in	6.75 mm	Male Pin	Polyester Glass Filled	0.1 in	2.54 mm	6.14 mm	0.242 in	Unshrouded	0.38 µm		All	Solder	Black	Board to Board Cable	Automotive General Purpose	60	15 µin	3 µm	118.1 µin	Gold
Molex 0901220157	Breakaway Header	Through Hole Right Angle	0.114 in	2.9 mm	Push-Pull	Brass	2.54 mm	0.1 in	Tin	2	UL94 V-0	Square	0.266 in	6.75 mm	Male Pin	Polyester Glass Filled	0.1 in	2.54 mm	6.14 mm	0.242 in	Unshrouded	118.1 µin	3 µm	All	Solder	Black	Board to Board Cable	Automotive General Purpose	74
Molex 0901220143	Breakaway Header	Through Hole Right Angle	0.114 in	2.9 mm	Push-Pull	Brass	2.54 mm	0.1 in	Tin	2	UL94 V-0	Square	0.266 in	6.75 mm	Male Pin	Polyester Glass Filled	0.1 in	2.54 mm	6.14 mm	0.242 in	Unshrouded	118.1 µin	3 µm	All	Solder	Black	Board to Board Cable	Automotive General Purpose	46
Molex 0901220790	Breakaway Header	Through Hole Right Angle	0.114 in	2.9 mm	Push-Pull	Brass	2.54 mm	0.1 in	Tin	2	UL94 V-0	Square	0.266 in	6.75 mm	Male Pin	Polyester Glass Filled	0.1 in	2.54 mm	6.14 mm	0.242 in	Unshrouded	0.38 µm		All	Solder	Black	Board to Board Cable	Automotive General Purpose	60	15 µin	3 µm	118.1 µin	Gold
Molex 0901220125	Breakaway Header	Through Hole Right Angle	0.114 in	2.9 mm	Push-Pull	Brass	2.54 mm	0.1 in	Tin	2	UL94 V-0	Square	0.266 in	6.75 mm	Male Pin	Polyester Glass Filled	0.1 in	2.54 mm	6.14 mm	0.242 in	Unshrouded	118.1 µin	3 µm	All	Solder	Black	Board to Board Cable	Automotive General Purpose	10
