EXG.0B Series
Manufacturer: LEMO
Beta
⌘K
CONN RCPT FMALE 7POS GOLD SOLDER
| Part | Shell Material | Fastening Type | Number of Positions | Contact Finish - Mating | Material Flammability Rating | Termination | Primary Material | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Type | Mounting Feature | Connector Type | Current Rating (Amps) | Orientation [custom] | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Features | Shell Size - Insert [custom] | Color | Insert Material | Shell Finish | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

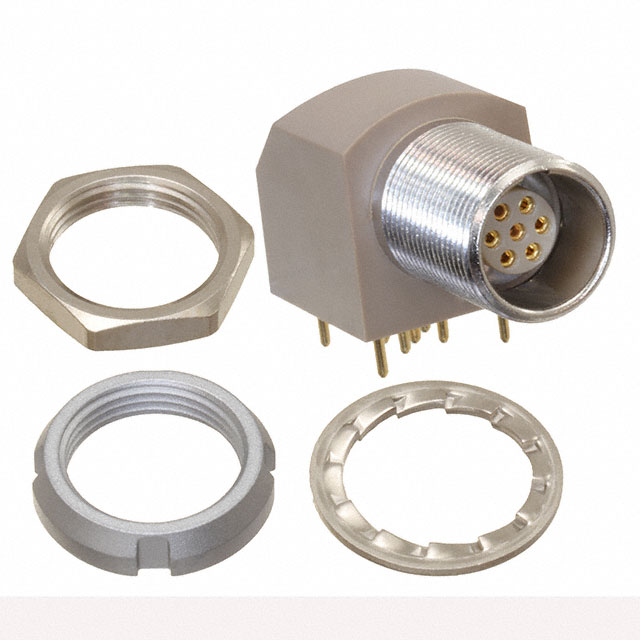

 LEMO | Brass and Polyphenylene Sulfide (PPS) | Push-Pull | 7 | Gold | UL94 V-0 | Solder | Metal | Bronze | 1.5 Ám | 59 Áin | Panel Mount Right Angle Through Hole | Bulkhead - Front Side Nut | Receptacle Female Sockets | 2 A | G | IP50 - Dust Protected | -55 C | 250 °C | Shielded | Ground | 307 | Brown Silver | Polyetheretherketone (PEEK) | Nickel | |

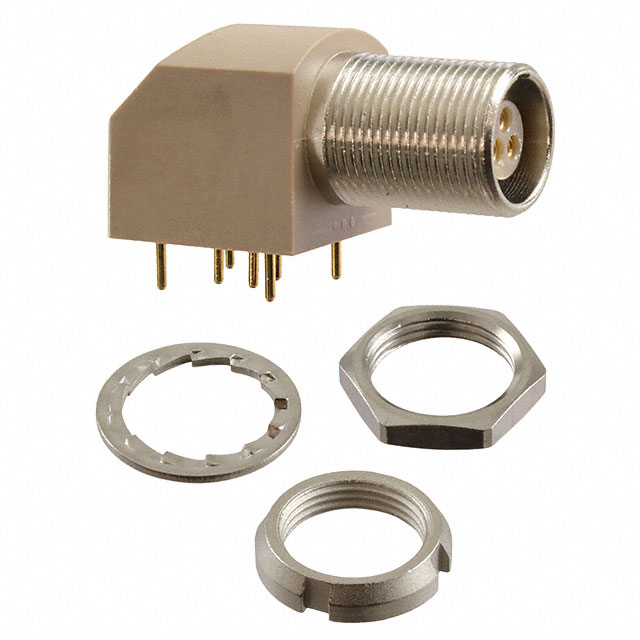

 LEMO | Brass and Polyphenylene Sulfide (PPS) | Push-Pull | Gold | UL94 V-0 | Solder | Metal | Bronze | 1.5 Ám | 59 Áin | Panel Mount Right Angle Through Hole | Bulkhead - Front Side Nut | Receptacle Female Sockets | 4.5 A | G | IP50 - Dust Protected | -55 C | 250 °C | Shielded | Ground | Brown Silver | Polyetheretherketone (PEEK) | Nickel | 303 | ||

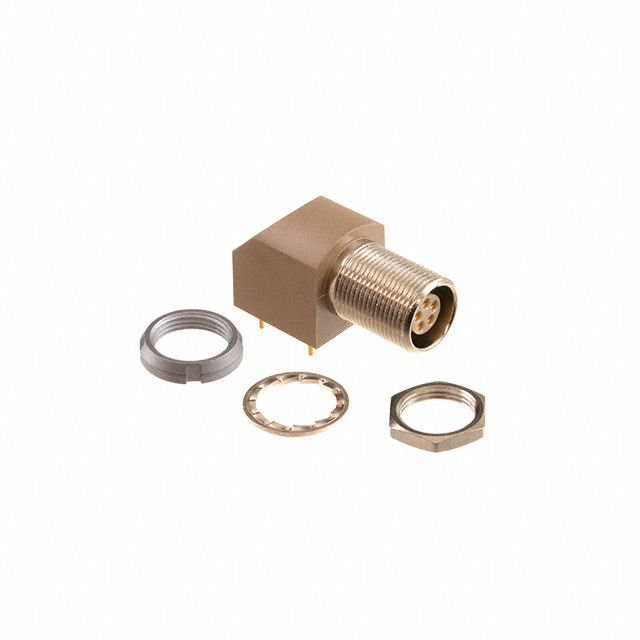

 LEMO | Brass and Polyphenylene Sulfide (PPS) | Push-Pull | 5 | Gold | UL94 V-0 | Solder | Metal | Bronze | 1.5 Ám | 59 Áin | Panel Mount Right Angle Through Hole | Bulkhead - Front Side Nut | Receptacle Female Sockets | 4.5 A | G | IP50 - Dust Protected | -55 C | 250 °C | Shielded | Ground | Brown Silver | Polyetheretherketone (PEEK) | Nickel | 305 | |
LEMO | Brass and Polyphenylene Sulfide (PPS) | Push-Pull | 7 | Gold | UL94 V-0 | Solder | Metal | Bronze | 1.5 Ám | 59 Áin | Panel Mount Right Angle Through Hole | Bulkhead - Front Side Nut | Receptacle Female Sockets | 2 A | G | IP50 - Dust Protected | -55 C | 250 °C | Shielded | Board Lock | 307 | Brown Silver | Polyetheretherketone (PEEK) | Nickel | |

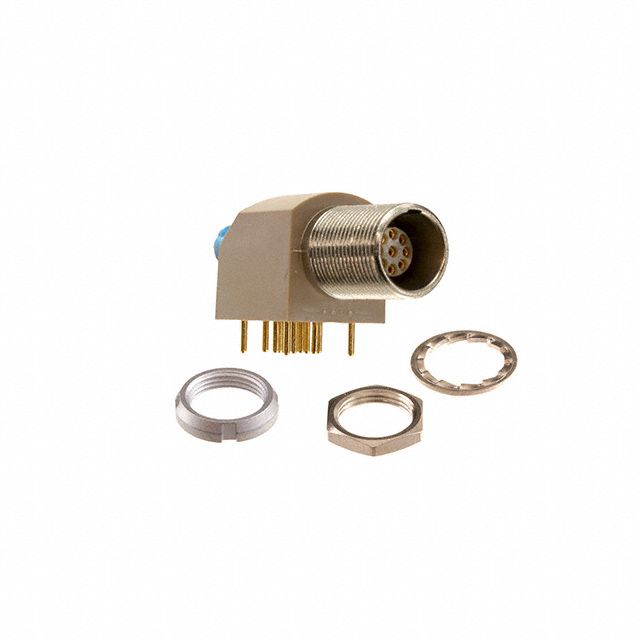

LEMO | Brass and Polyphenylene Sulfide (PPS) | Push-Pull | 9 | Gold | UL94 V-0 | Solder | Metal | Bronze | 1.5 Ám | 59 Áin | Panel Mount Right Angle Through Hole | Bulkhead - Front Side Nut | Receptacle Female Sockets | 1.5 A | G | IP50 - Dust Protected | -55 C | 250 °C | Shielded | Board Lock | Brown Silver | Polyetheretherketone (PEEK) | Nickel | 309 | |
 LEMO | Brass and Polyphenylene Sulfide (PPS) | Push-Pull | 9 | Gold | UL94 V-0 | Solder | Metal | Bronze | 1.5 Ám | 59 Áin | Panel Mount Right Angle Through Hole | Bulkhead - Front Side Nut | Receptacle Female Sockets | 1.5 A | G | IP50 - Dust Protected | -55 C | 250 °C | Shielded | Ground | Brown Silver | Polyetheretherketone (PEEK) | Nickel | 309 | |
 LEMO | Brass and Polyphenylene Sulfide (PPS) | Push-Pull | Gold | UL94 V-0 | Solder | Metal | Bronze | 1.5 Ám | 59 Áin | Panel Mount Right Angle Through Hole | Bulkhead - Front Side Nut | Receptacle Female Sockets | 4.5 A | G | IP50 - Dust Protected | -55 C | 250 °C | Shielded | Ground | Brown Silver | Polyetheretherketone (PEEK) | Nickel | 303 | ||
LEMO | Brass and Polyphenylene Sulfide (PPS) | Push-Pull | 5 | Gold | UL94 V-0 | Solder | Metal | Bronze | 1.5 Ám | 59 Áin | Panel Mount Right Angle Through Hole | Bulkhead - Front Side Nut | Receptacle Female Sockets | 4.5 A | G | IP50 - Dust Protected | -55 C | 250 °C | Shielded | Ground | Brown Silver | Polyetheretherketone (PEEK) | Nickel | 305 | |

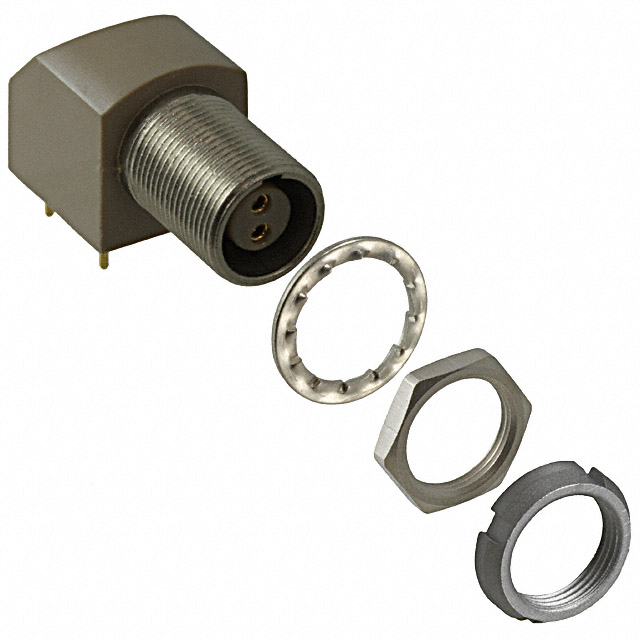

 LEMO | Brass and Polyphenylene Sulfide (PPS) | Push-Pull | 2 | Gold | UL94 V-0 | Solder | Metal | Bronze | 1.5 Ám | 59 Áin | Panel Mount Right Angle Through Hole | Bulkhead - Front Side Nut | Receptacle Female Sockets | 4.5 A | G | IP50 - Dust Protected | -55 C | 250 °C | Shielded | Ground | Brown Silver | Polyetheretherketone (PEEK) | Nickel | 302 |
