MAX1748 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K

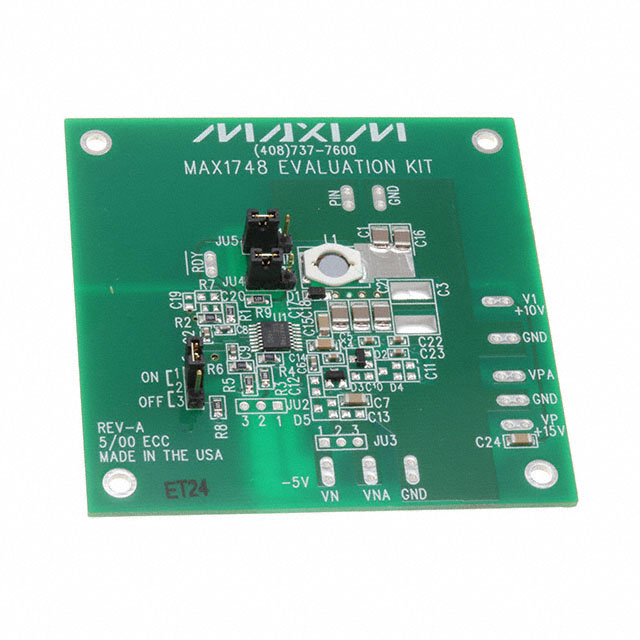

KIT EVAL FOR MAX1748 MAX1779
| Part | Utilized IC / Part | Current - Output | Board Type | Voltage - Output | Regulator Topology | Voltage - Input [Min] | Voltage - Input [Max] | Outputs and Type | Outputs and Type | Supplied Contents | Frequency - Switching | Main Purpose | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage - Output [Min] | Voltage - Output [Max] | Number of Outputs | Applications | Package / Case [x] | Package / Case | Package / Case [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | MAX1748 | 20 mA 200 mA | Fully Populated | -5 V 5 V 15 VDC | Boost | 2.7 V | 5.5 V | Non-Isolated | 3 | Board(s) | 1 MHz | DC/DC Step Up | |||||||||||
 Analog Devices Inc./Maxim Integrated | 2.7 V | 5.5 V | 16-TSSOP | 85 °C | -40 °C | Surface Mount | 2.7 V | 13 V | 3 | Converter TFT LCD | 0.173 in | 16-TSSOP | 4.4 mm |
