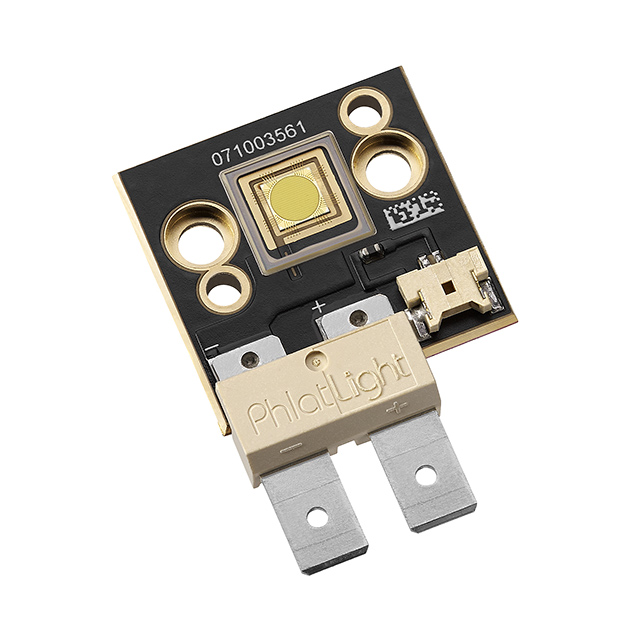

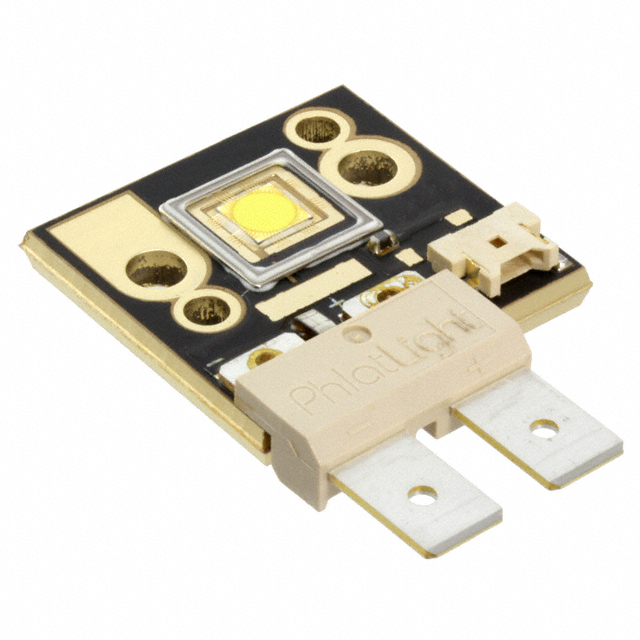

CBT-140 Series

Catalog

LED MOD CBT-140 CL WHT SQ 8500K

Part	CCT (K) [Min]	CCT (K) [Max]	Height [z]	Temperature - Test	CRI (Color Rendering Index)	Type	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	Color	Size / Dimension [y]	Size / Dimension [x]	Lumens/Watt @ Current - Test	Light Emitting Surface (LES) [diameter]	Current - Test	Lens Type	Configuration	Voltage - Forward (Vf) (Typ)	Features	Current - Max [Max]	Luminous Flux @ Current/Temperature
Luminus Devices Inc. CBT-140-WCS-C15-TB123	7040 K	8500 K	5.7 mm	85 °C	75	LED Module	3680 lm	3440 lm	Cool White	42 mm	28 mm	47 lm/W	4.25 mm	21 A	Flat	Square	3.6 V	With Connector	21 A
Luminus Devices Inc. CBT-140-WCS-L16-TB121	6020 K	8500 K	5.7 mm	85 °C	75	LED Module	3680 lm	3440 lm	Cool White	42 mm	28 mm	47 lm/W	4.25 mm	21 A	Flat	Rectangle	3.6 V	With Connector	28 A
Luminus Devices Inc. CBT-140-WCS-C15-UA120	6020 K	8500 K	5.7 mm	85 °C	75	LED Module	3680 lm	3440 lm	Cool White	42 mm	28 mm	47 lm/W	4.25 mm	21 A	Flat	Square	3.6 V	With Connector	21 A
Luminus Devices Inc. CBT-140-WCS-L16-UA120	6020 K	8500 K	5.7 mm	85 °C	75	LED Module	3955 lm	3680 lm	Cool White	42 mm	28 mm	50 lm/W	4.25 mm	21 A	Flat	Rectangle	3.6 V	With Connector	28 A	3818 lm
Luminus Devices Inc. CBT-140-WDH-L16-RA220	5310 K	6020 K	5.7 mm	85 °C	92	LED Module	2600 lm	2420 lm	Cool White	42 mm	28 mm	33 lm/W	4.25 mm	21 A	Flat	Rectangle	3.6 V	With Connector	28 A	2510 lm
Luminus Devices Inc. CBT-140-WCS-L16-TB123	7040 K	8500 K	5.7 mm	85 °C	75	LED Module	3680 lm	3440 lm	Cool White	42 mm	28 mm	47 lm/W	4.25 mm	21 A	Flat	Rectangle	3.6 V	With Connector	28 A
Luminus Devices Inc. CBT-140-WDH-C15-QB220			5.7 mm	40 °C	92	LED Module				42 mm	28 mm	31 lm/W	4.25 mm	21 A	Flat	Rectangle	3.6 V	With Connector	28 A	2340 lm
Luminus Devices Inc. CBT-140-WCS-L16-UB122			5.7 mm	85 °C	75	LED Module	4230 lm	3955 lm	Cool White	42 mm	28 mm	54 lm/W	4.25 mm	21 A	Flat	Rectangle	3.6 V	With Connector	28 A	4093 lm
