9389 Series
Manufacturer: Belden Inc.
Beta
⌘K

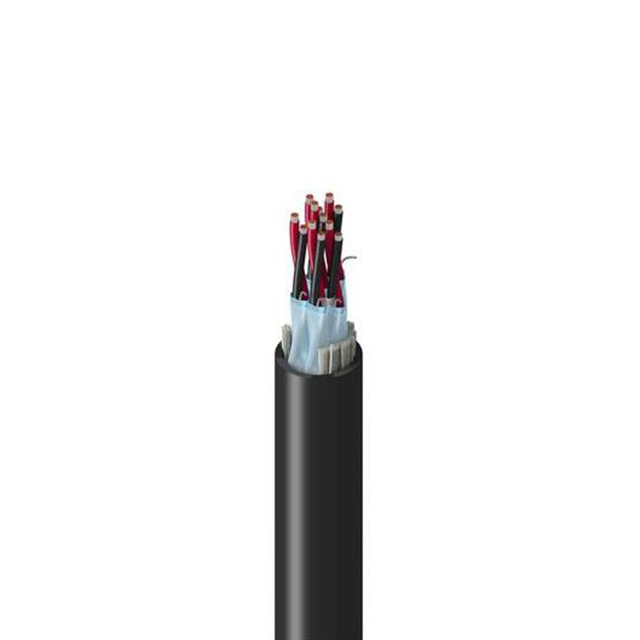

MULTI-PAIR 12COND 18AWG
| Part | Shield Coverage | Shield Material | Jacket Color | Shield Type | Conductor Insulation | Length | Length | Cable Type | Ratings | Wire Gauge | Number of Conductors | Features | Conductor Material | Usage | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Chrome | Foil | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | Multi-Pair | UL Style 2464 | 18 AWG | 12 | Drain Wire Rip Cord | Copper Tinned | Instrumentation | 30 AWG | 19 | Poly-Vinyl Chloride (PVC) | 0.053 " | 1.346 mm | -30 ░C | 105 ░C | 13.59 mm | 0.535 " |
Belden Inc. | 100 % | Aluminum | Chrome | Foil | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | Multi-Pair | UL Style 2464 | 18 AWG | 12 | Drain Wire Rip Cord | Copper Tinned | Instrumentation | 30 AWG | 19 | Poly-Vinyl Chloride (PVC) | 0.053 " | 1.346 mm | -30 ░C | 105 ░C | 13.59 mm | 0.535 " |
Belden Inc. | 100 % | Aluminum | Chrome | Foil | Poly-Vinyl Chloride (PVC) | 762 m | 2500 ft | Multi-Pair | UL Style 2464 | 18 AWG | 12 | Drain Wire Rip Cord | Copper Tinned | Instrumentation | 30 AWG | 19 | Poly-Vinyl Chloride (PVC) | 0.053 " | 1.346 mm | -30 ░C | 105 ░C | 13.59 mm | 0.535 " |
