9059C Series

Catalog

CABLE COAXIAL RG59 22AWG 500'

Part	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Shield Coverage	Shield Material	VoP, Velocity of Propagation	Dielectric Material	Impedance	Wire Gauge	Cable Type	Length [x]	Length [x]	Usage	Cable Group	Conductor Strand	Jacket Color	Jacket (Insulation) Material	Shield Type	Length	Length

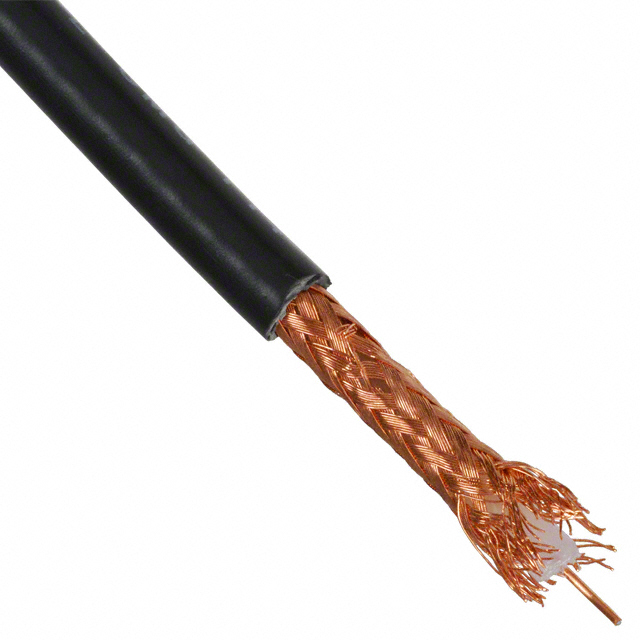

ALPHA WIRE 9059C BK022	3.71 mm	0.146 in	Copper Coated Steel	-20 ░C	60 °C	95 %	Copper Bare	66	Solid Polyethylene (PE)	75 Ohms	0.32 mm² 22 AWG	Coaxial	152.4 m	500 ft	Network	RG-59	Solid	Black	Poly-Vinyl Chloride (PVC)	Braid

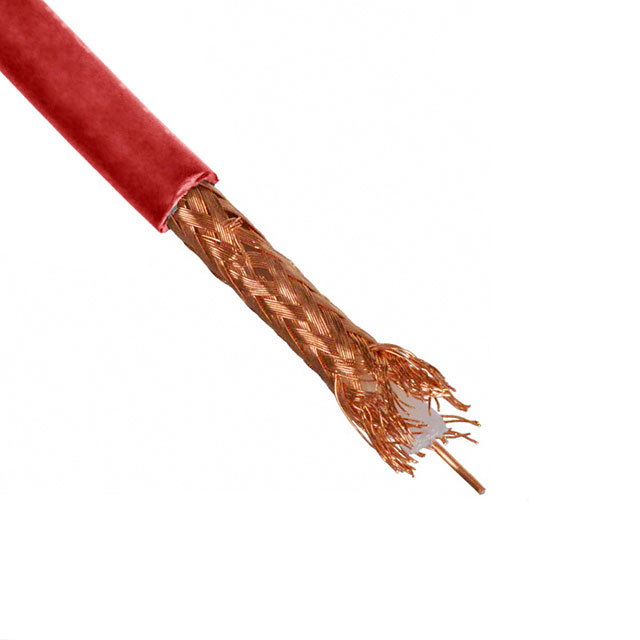

ALPHA WIRE 9059C RD001	3.71 mm	0.146 in	Copper Coated Steel	-20 ░C	60 °C	95 %	Copper Bare	66	Solid Polyethylene (PE)	75 Ohms	0.32 mm² 22 AWG	Coaxial	15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft	Network	RG-59	Solid	Red	Poly-Vinyl Chloride (PVC)	Braid	100 '	30.48 m
ALPHA WIRE 9059C GR001	3.71 mm	0.146 in	Copper Coated Steel	-20 ░C	60 °C	95 %	Copper Bare	66	Solid Polyethylene (PE)	75 Ohms	0.32 mm² 22 AWG	Coaxial	304.8 m	1000 ft	Network	RG-59	Solid	Green	Poly-Vinyl Chloride (PVC)	Braid
ALPHA WIRE 9059C SL001	3.71 mm	0.146 in	Copper Coated Steel	-20 ░C	60 °C	95 %	Copper Bare	66	Solid Polyethylene (PE)	75 Ohms	0.32 mm² 22 AWG	Coaxial	304.8 m	1000 ft	Network	RG-59	Solid		Poly-Vinyl Chloride (PVC)	Braid
