RT6236 Series

Catalog

IC REG BUCK ADJ 6A 13UQFN

Part	Package / Case	Topology	Current - Output	Function	Voltage - Input (Max) [Max]	Number of Outputs	Mounting Type	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output (Min/Fixed) [Min]	Voltage - Output (Max) [Max]	Voltage - Input (Min) [Min]	Output Configuration	Output Type	Frequency - Switching	Outputs and Type	Outputs and Type	Supplied Contents	Board Type	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output	Contents	Utilized IC / Part	Main Purpose	Regulator Topology
Richtek USA Inc. RT6236BLGQUF	13-UFQFN	Buck	6 A	Step-Down	18 V	1	Surface Mount	13-UQFN (2x3)	85 C	-40 ¯C	0.7 V	8 V	4.5 V	Positive	Adjustable	650 kHz

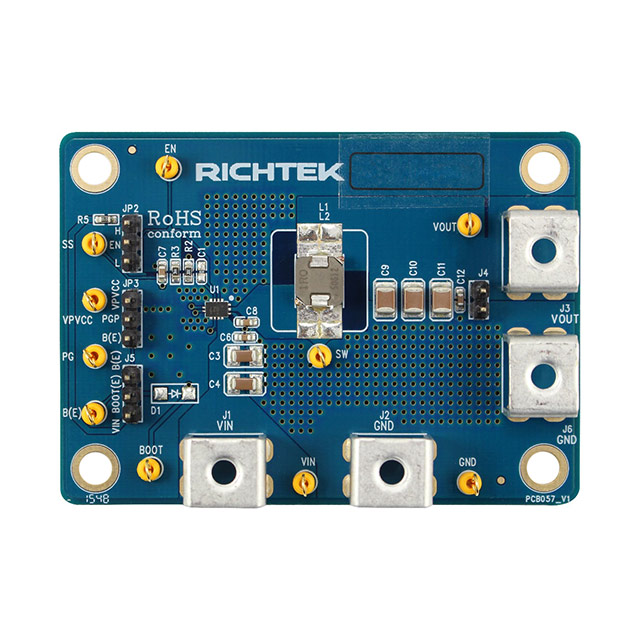

Richtek USA Inc. EVB_RT6236AHGQUF			6 A													650 kHz	1	1 Non-Isolated Output Non-Isolated	Board(s)	Fully Populated	18 V	4.5 V	1.2 V	Board(s)	RT6236A	DC/DC Step Down	Buck
Richtek USA Inc. RT6236AHGQUF	13-UFQFN	Buck	6 A	Step-Down	18 V	1	Surface Mount	13-UQFN (2x3)	85 C	-40 ¯C	0.7 V	8 V	4.5 V	Positive	Adjustable	650 kHz
