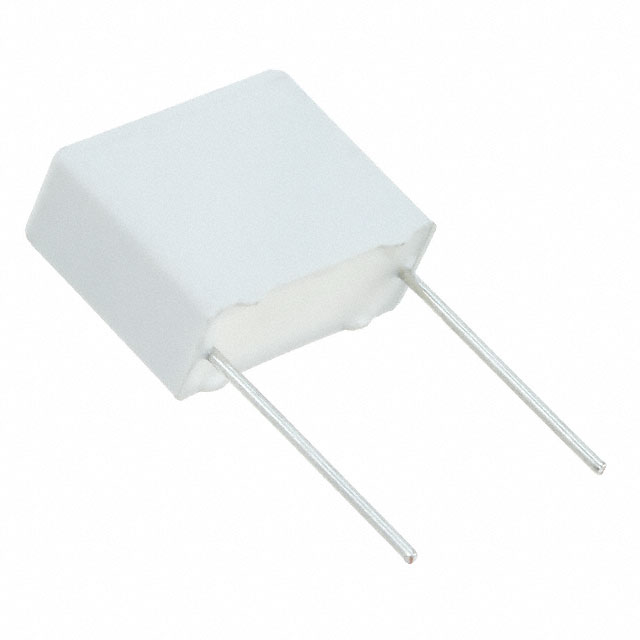

SMR15 Series

Manufacturer: KEMET

Catalog

GENERAL PURPOSE FILM CAPACITOR, METALLIZED PPS, RADIAL BOX - 2 PIN, 2.2 ΜF, ± 5%, 40 V, 63 V

Part	Voltage Rating - AC	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Termination	Lead Spacing	Lead Spacing	Features	Capacitance	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Dielectric Material	Mounting Type	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]

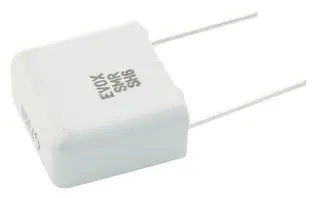

KEMET SMR15225J63B12L16.5CBULK	40 V	18 mm	8 mm	0.709 in	0.315 in	PC Pins	15 mm	0.591 in	High Temperature	2.2 µF	63 VDC	-55 C	150 °C	Radial	Polyphenylene Sulfide (PPS) Metallized	Through Hole	5 %	15 mm	0.591 "	General Purpose
KEMET SMR15105K100B06L4BULK	63 V	18 mm	7.5 mm	0.709 in	0.295 in	PC Pins	15 mm	0.591 in	High Temperature	1 µF	100 V	-55 C	150 °C	Radial	Polyphenylene Sulfide (PPS) Metallized	Through Hole	10 %			General Purpose	0.571 "	14.5 mm

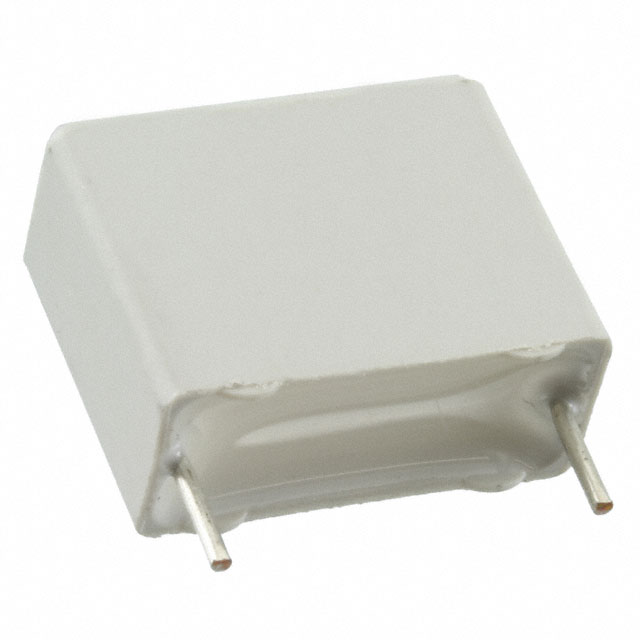

KEMET SMR15225K63B12L4BULK	40 V	18 mm	8 mm	0.709 in	0.315 in	PC Pins	15 mm	0.591 in	High Temperature	2.2 µF	63 VDC	-55 C	150 °C	Radial	Polyphenylene Sulfide (PPS) Metallized	Through Hole	10 %	15 mm	0.591 "	General Purpose

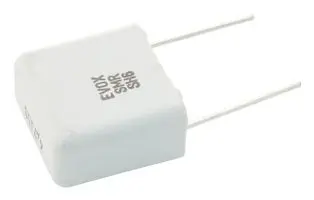

KEMET SMR15104J400B10L16.5CBULK	200 V	18 mm	6.5 mm	0.709 in	0.256 "	PC Pins	15 mm	0.591 in	High Temperature	100000 pF	400 V	-55 C	150 °C	Radial	Polyphenylene Sulfide (PPS) Metallized	Through Hole	5 %			General Purpose		0.492 in	12.5 mm
KEMET SMR15335J50B06L16.5CBULK	30 V	18 mm	7.5 mm	0.709 in	0.295 in	PC Pins	15 mm	0.591 in	High Temperature	3.3 µF	50 VDC	-55 C	150 °C	Radial	Polyphenylene Sulfide (PPS) Metallized	Through Hole	5 %			General Purpose	0.571 "	14.5 mm
