8331-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PIN RCPT
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Length - Overall | Length - Overall | Contact Finish Thickness | Contact Finish Thickness | Socket Depth | Socket Depth | Contact Material | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Flange Diameter [diameter] | Flange Diameter [diameter] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Min] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Tail Type | Termination | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

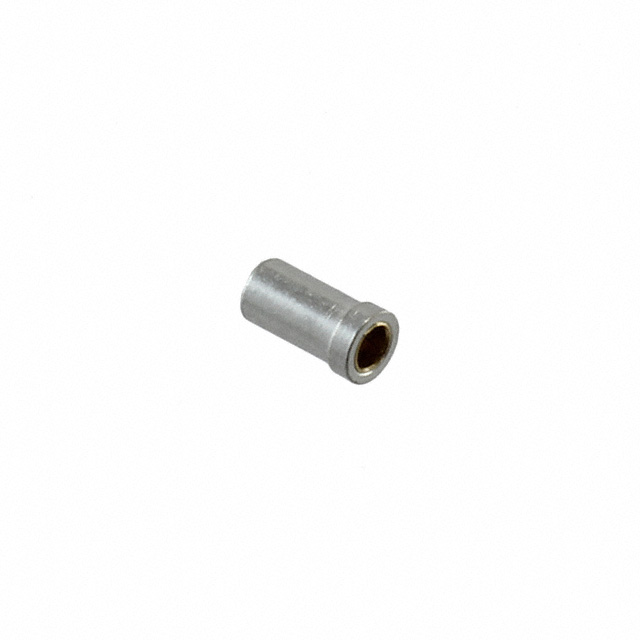

 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 3.81 mm | 0.15 in | 30 Áin | 0.76 Ám | 3.23 mm | 0.127 in | Beryllium Copper | 1.37 mm | 0.054 in | 0.078 " | 1.98 mm | 0.043 in | 1.09 mm | 0.94 mm | 0.037 in | 1.8 mm | 0.071 in | No Tail | Solder | |

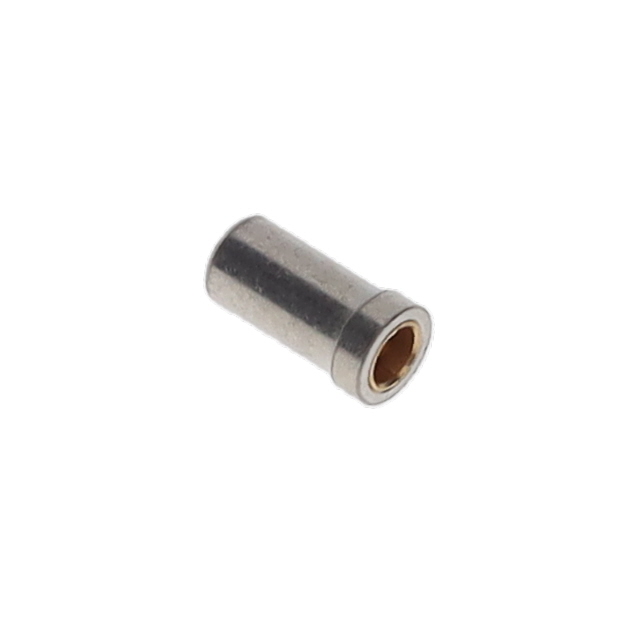

 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 3.81 mm | 0.15 in | 30 Áin | 0.76 Ám | 3.23 mm | 0.127 in | Beryllium Copper | 1.37 mm | 0.054 in | 0.078 " | 1.98 mm | 0.043 in | 1.09 mm | 0.94 mm | 0.037 in | 1.8 mm | 0.071 in | No Tail | Solder | Gold |

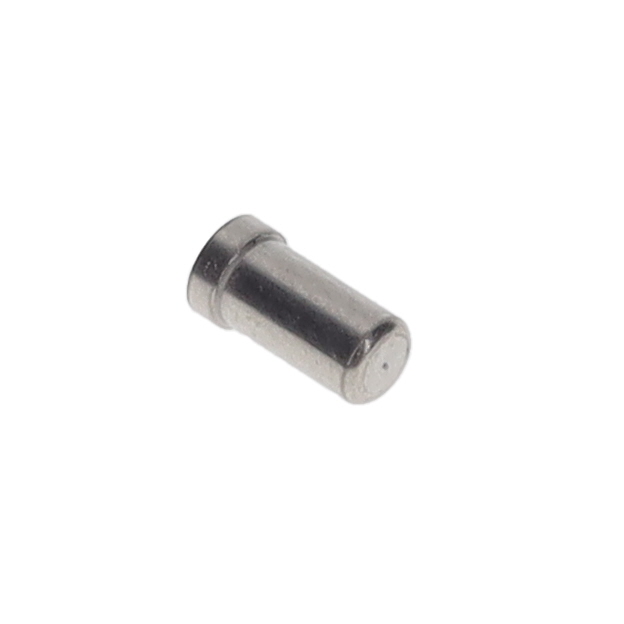

 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 3.81 mm | 0.15 in | 30 Áin | 0.76 Ám | 3.23 mm | 0.127 in | Beryllium Copper | 1.37 mm | 0.054 in | 0.078 " | 1.98 mm | 0.043 in | 1.09 mm | 0.94 mm | 0.037 in | 1.8 mm | 0.071 in | No Tail | Solder | Gold |
