CMLE104T Series

Catalog

FIXED IND 360NH 43A 0.76MOHM SMD

Part	Inductance	Current - Saturation (Isat)	Shielding	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max)	Height - Seated (Max) [Max]	Current Rating (Amps)	Material - Core	Operating Temperature [Min]	Operating Temperature [Max]	Inductance Frequency - Test	Mounting Type	Package / Case	Tolerance	DC Resistance (DCR)
Delta Electronics/Cyntec CMLE104T-R36MS0R765	360 nH	45 A	Shielded	0.439 in	10 mm	11.15 mm	0.394 in	4 mm	0.157 in	43 A	Metal	-55 C	125 °C	100 kHz	Surface Mount	Nonstandard	20 %	0.76 mOhm

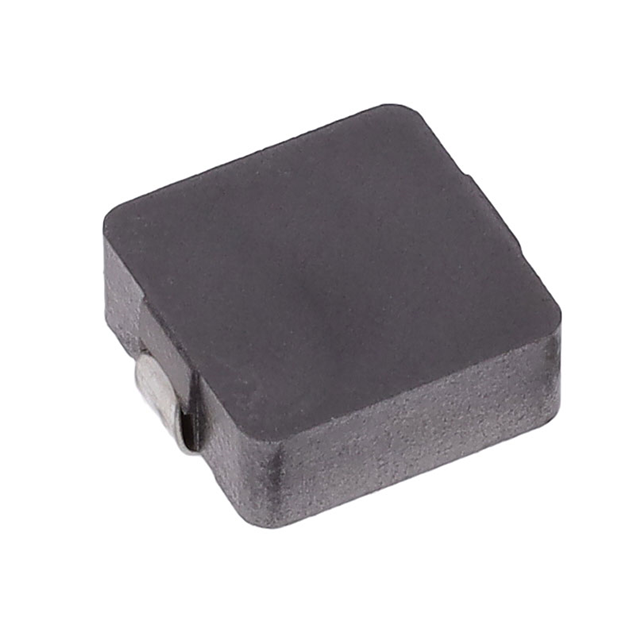

Delta Electronics/Cyntec CMLE104T-R68MS1R607	0.68 µH	31 A	Shielded	0.439 in	10 mm	11.15 mm	0.394 in	4 mm	0.157 in	28 A	Metal	-55 C	125 °C	100 kHz	Surface Mount	Nonstandard	20 %	1.6 mOhm
Delta Electronics/Cyntec CMLE104T-1R0MS2R307	1 µH	28 A	Shielded	0.439 in	10 mm	11.15 mm	0.394 in	4 mm	0.157 in	25 A	Metal	-55 C	125 °C	100 kHz	Surface Mount	Nonstandard	20 %	2.3 mOhm
