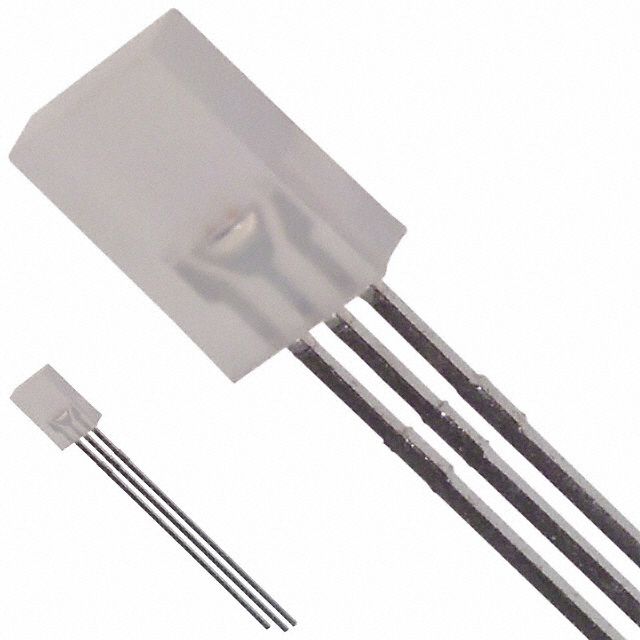

HLMP-0800 Series
Manufacturer: Broadcom Limited
Beta
⌘K
LED GRN/RED DIFF RECT 2X5MM T/H
| Part | Package / Case | Lens Transparency | Viewing Angle | Voltage - Forward (Vf) (Typ) | Wavelength - Dominant | Millicandela Rating [custom] | Millicandela Rating [custom] | Lens Style | Lens Color | Current - Test [custom] | Current - Test [custom] | Height (Max) [Max] [z] | Supplier Device Package | Configuration | Lens Size [x] | Lens Size [y] | Mounting Type | Wavelength - Peak | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | Radial - 3 Leads | Diffused | 100 ° | 1.9 V 2.2 V | 570 nm 626 nm | 2.6 mcd | 2.1 mcd | Rectangle with Flat Top | White | 20 mA | 20 mA | 8 mm | Rectangular 2mmx5mm | Common Cathode | 5.06 mm | 2.11 mm | Through Hole | 568 nm 635 nm | Green Red |
