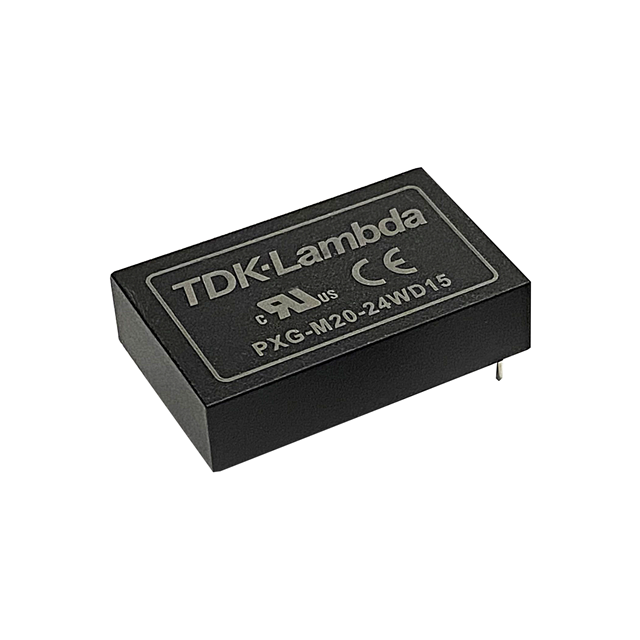

PXG-M20 Series
Manufacturer: TDK Corporation
Beta
⌘K
DC-DC CONVERTER, 12V, 1.67A ROHS COMPLIANT: YES
| Part | Applications | Package / Case | Current - Output (Max) [Max] | Approval Agency | Mounting Type | Features | Power (Watts) | Type | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Output 1 | Voltage - Isolation | Number of Outputs | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Current - Output (Max) | Current - Output (Max) | Voltage - Output 2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | ITE (Commercial) Medical | 6-DIP Module | 1.67 A | CE | Through Hole | Adjustable Output | 20 W | Isolated Module | 25.4 mm | 10.2 mm | 1.6 " | 40.6 mm | 0.4 " | 1 " | 12 V | 5000 V | 1 | 88.5 % | 105 C | -40 °C | 36 V | 9 V | |||
TDK Corporation | ITE (Commercial) Medical | 6-DIP Module | CE | Through Hole | Adjustable Output | 20 W | Isolated Module | 25.4 mm | 10.2 mm | 1.6 " | 40.6 mm | 0.4 " | 1 " | 15 V | 5000 V | 2 | 89 % | 105 C | -40 °C | 75 V | 18 V | 677 mA | 677 mA | -15 V | |
TDK Corporation | ITE (Commercial) Medical | 6-DIP Module | 1.33 A | CE | Through Hole | Adjustable Output | 20 W | Isolated Module | 25.4 mm | 10.2 mm | 1.6 " | 40.6 mm | 0.4 " | 1 " | 15 V | 5000 V | 1 | 89 % | 105 C | -40 °C | 75 V | 18 V | |||
TDK Corporation | ITE (Commercial) Medical | 6-DIP Module | 833 mA | CE | Through Hole | Adjustable Output | 20 W | Isolated Module | 25.4 mm | 10.2 mm | 1.6 " | 40.6 mm | 0.4 " | 1 " | 24 V | 5000 V | 1 | 88.5 % | 105 C | -40 °C | 36 V | 9 V |
