SA32600 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

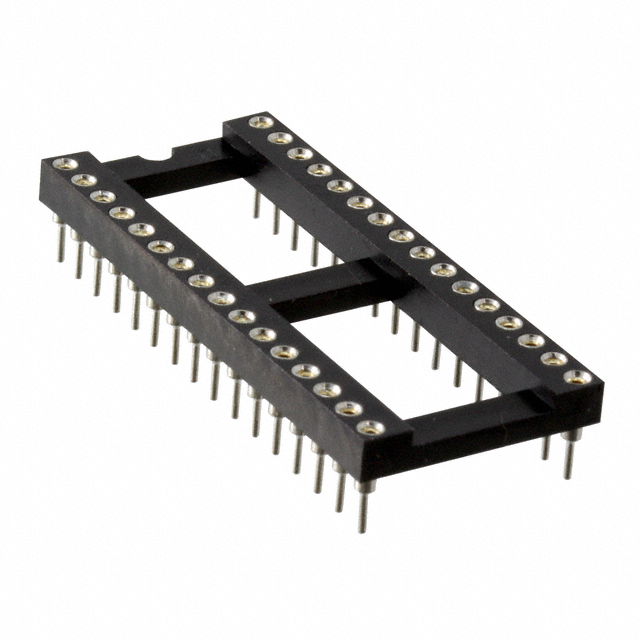

CONN IC DIP SOCKET 32POS GOLD
| Part | Current Rating (Amps) | Material Flammability Rating | Contact Resistance | Contact Material - Post [custom] | Number of Positions or Pins (Grid) | Mounting Type | Pitch - Post | Pitch - Post | Contact Material - Mating | Type [custom] | Type [custom] | Type | Termination | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Post | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Housing Material | Features | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | 3 A | UL94 V-0 | 4 mOhm | Brass | 32 | Through Hole | 0.1 in | 2.54 mm | Beryllium Copper | 15.24 mm | 0.6 in | DIP | Solder | 200 µin | 5.08 µm | Tin | Gold | 0.1 " | 2.54 mm | Flash | Glass Filled Polyester Thermoplastic | Open Frame | -40 C | 105 ░C |
